The mode for rendering specified as a string. More...

#include <H3D/H3DWindowNode.h>

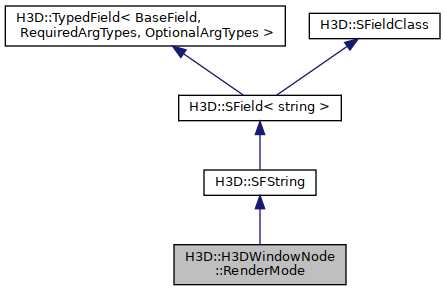

Inheritance diagram for H3D::H3DWindowNode::RenderMode:

Classes
class	InvalidRenderMode
	Thrown when the value of RenderMode is an invalid mode. More...

Public Types
enum	Mode { MONO , QUAD_BUFFERED_STEREO , HORIZONTAL_SPLIT , VERTICAL_SPLIT , HORIZONTAL_INTERLACED , VERTICAL_INTERLACED , CHECKER_INTERLACED , VERTICAL_INTERLACED_GREEN_SHIFT , RED_BLUE_STEREO , RED_GREEN_STEREO , RED_CYAN_STEREO , VERTICAL_SPLIT_KEEP_RATIO , HORIZONTAL_SPLIT_KEEP_RATIO , HDMI_FRAME_PACKED_720P , HDMI_FRAME_PACKED_1080P , NVIDIA_3DVISION , VERTICAL_SPLIT_KEEP_ASPECT_ONE_PASS , OCULUS_RIFT }
	The different render modes supported. More...

Public Types inherited from H3D::SField< string >
typedef string	value_type
	The type of the value member.

Public Member Functions
bool	isStereoMode ()
	Returns true if the current render mode is a stereo mode.

bool	isSinglePass ()
	Returns true if stereo rendering only need one pass.

RenderMode::Mode	getRenderMode ()
	Get the current RenderMode string as an Mode enum. More...

void	updateRebuildStencilMaskFlag ()
	Function to update rebuild_stencil_mask when necessary.

Public Member Functions inherited from H3D::SFString
void	addValidValue (const string &s)
	Add a valid value for the string. More...

template<class InputIterator >
void	addValidValues (InputIterator begin, InputIterator end)
	Add valid values for the string. More...

bool	isValidValue (const string &s)
	Returns true if the given string is one of the specified valid values for the field.

bool	hasValidValues ()
	Returns true if any valid values have been specified for the field.

const set< string > &	getValidValues ()
	Returns the valid values for the field.

void	clearValidValues ()
	Clears the valid values for the field.

Public Member Functions inherited from H3D::SField< string >
	SField ()
	Constructor.

	SField (const string &_value)
	Constructor.

virtual int	setValueFromVoidPtr (const void *data, unsigned int len, int id=0)
	Set the value of the field given a pointer to where the value of the field is. More...

virtual int	getValueAsVoidPtr (void *data, unsigned int len, int id=0)
	Get the value of the data copied into a memory buffer. More...

virtual unsigned int	valueTypeSize ()
	Returns the size in bytes of the value type the sfield encapsulates.

virtual void	setValue (const string &v, int id=0)
	Set the value of the field.

virtual const string &	getValue (int id=0)
	Get the value of the field.

virtual void	setValueFromString (const string &s)
	Set the value of the field given a string. More...

virtual string	getValueAsString (const string &=" ")
	Get the value of the field as a string.

virtual string	getTypeName ()
	Returns a string name for this field type e.g. SFInt32.

Public Member Functions inherited from H3D::SFieldClass
virtual	~SFieldClass ()
	Virtual destructor.

virtual int	setValueFromVoidPtr (void *data, unsigned int size, int id=0)

Additional Inherited Members
Static Public Member Functions inherited from H3D::SField< string >
static string	classTypeName ()
	Returns a string name for this field type e.g. SFInt32.

Protected Member Functions inherited from H3D::SField< string >
virtual void	update ()
	Make the field up to date given that an event has occured.

Protected Member Functions inherited from H3D::TypedField< BaseField, RequiredArgTypes, OptionalArgTypes >
void	checkFieldType (Field *f, int index)
	Function for checking that a field is of a correct type given type specification according to the TypedField template arguments. More...

void	checkTemplateArguments ()
	Function for checking that a field given TypedField type specification is valid. More...

Protected Attributes inherited from H3D::SField< string >
string	value
	The encapsulated value.

Detailed Description

The mode for rendering specified as a string.

Member Enumeration Documentation

◆ Mode

enum H3D::H3DWindowNode::RenderMode::Mode

The different render modes supported.

Enumerator
MONO	Normal rendering.
QUAD_BUFFERED_STEREO	Quad buffered stereo rendering. Needs a quad buffered enabled graphics card
HORIZONTAL_SPLIT	Stereo mode where the left eye is rendered as the top half of the screen and the right eye as the bottom half of the screen.
VERTICAL_SPLIT	Stereo mode where the left eye is rendered as the left half of the screen and the right eye as the right half of the screen.
HORIZONTAL_INTERLACED	Stereo mode where every second horizontal line is rendered for the left eye and every other line for the right eye.
VERTICAL_INTERLACED	Stereo mode where every second vertical line is rendered for the left eye and every other line for the right eye.
CHECKER_INTERLACED	Stereo mode where "white" and "black" in a checker pattern are rendered for the left and right eye, respectively.
VERTICAL_INTERLACED_GREEN_SHIFT	Stereo mode where every second vertical line is rendered for the left eye and every other line for the right eye, but with the green pixel shifted one pixel to the right. Used with for example the Sharp auto-stereoscopic displays.
RED_BLUE_STEREO	Stereo mode where the left eye is rendered in red and the right eye in blue.
RED_GREEN_STEREO	Stereo mode where the left eye is rendered in red and the right eye in green.
RED_CYAN_STEREO	Stereo mode where the left eye is rendered in red and the right eye in cyan.
VERTICAL_SPLIT_KEEP_RATIO	Stereo mode where the left eye is rendered as the left half of the screen and the right eye as the right half of the screen. The aspect ratio is preserved in this mode, so that it can be used when e.g. extending the desktop in order for rendering each the left eye for one projector and the right for another.
HORIZONTAL_SPLIT_KEEP_RATIO	Stereo mode where the left eye is rendered as the top half of the screen and the right eye as the bottom half of the screen. The aspect ratio is preserved in this mode, so that it can be used when e.g. extending the desktop in order for rendering each the left eye for one projector and the right for another.
HDMI_FRAME_PACKED_720P	HDMI 1.4 frame packed format. Basically horizontal split with 30 lines of black between each image.
HDMI_FRAME_PACKED_1080P	HDMI 1.4 frame packed format. Basically horizontal split with 45 lines of black between each image.
NVIDIA_3DVISION	NVidia 3DVision format when not using quad-buffered stereo. Will copy OpenGL buffer and display with DirectX. Executable must be named to one of the NVidia sanctioned 3D programs in order to work, e.g. googleearth.exe.
VERTICAL_SPLIT_KEEP_ASPECT_ONE_PASS	It is almost the same as the VERTICAL_SPLIT_KEEP_RATIO model, left half of the screen for left eye and right half of the screen will go for right eye. However this mode will only render once in one frame, and send in multiple viewport for both left and right eye. This render mode will requires that all object need to be rendered in the scene to shift its original geometry to both left and right to provide geometry for both eyes.
OCULUS_RIFT	Stereo mode for the Oculus Rift HMD.

Member Function Documentation

◆ getRenderMode()

H3DWindowNode::RenderMode::Mode H3DWindowNode::RenderMode::getRenderMode ( )

Get the current RenderMode string as an Mode enum.

Exceptions

InvalidRenderMode if the string is an invalid RenderMode.

References CHECKER_INTERLACED, H3D_FULL_LOCATION, HDMI_FRAME_PACKED_1080P, HDMI_FRAME_PACKED_720P, HORIZONTAL_INTERLACED, HORIZONTAL_SPLIT, HORIZONTAL_SPLIT_KEEP_RATIO, MONO, NVIDIA_3DVISION, OCULUS_RIFT, QUAD_BUFFERED_STEREO, RED_BLUE_STEREO, RED_CYAN_STEREO, RED_GREEN_STEREO, H3D::SField< string >::value, VERTICAL_INTERLACED, VERTICAL_INTERLACED_GREEN_SHIFT, VERTICAL_SPLIT, VERTICAL_SPLIT_KEEP_ASPECT_ONE_PASS, and VERTICAL_SPLIT_KEEP_RATIO.
