The common base class for MField types and MFNode. More...

#include <H3D/MField.h>

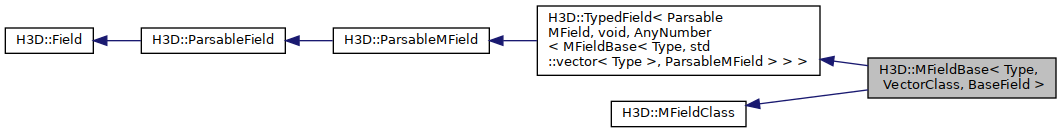

Inheritance diagram for H3D::MFieldBase< Type, VectorClass, BaseField >:

Public Types
typedef VectorClass	vector_type
	The type of the value member.

typedef VectorClass	vector_return_type
	The return type of functions that return the value of the field.

typedef VectorClass::value_type	value_type
	The type of the values stored in the vector.

typedef VectorClass::pointer	pointer
	Pointer to Type.

typedef VectorClass::const_reference	const_reference
	Const reference to Type.

typedef VectorClass::size_type	size_type
	An unsigned integral type.

typedef VectorClass::difference_type	difference_type
	A signed integral type.

typedef VectorClass::const_iterator	const_iterator
	Const iterator used to iterate through a vector.

typedef VectorClass::const_reverse_iterator	const_reverse_iterator
	Const iterator used to iterate backwards through a vector.

Public Types inherited from H3D::Field
enum	AccessType { INITIALIZE_ONLY , OUTPUT_ONLY , INPUT_ONLY , INPUT_OUTPUT }
	The different access types that a field can have. More...

Public Member Functions
const_iterator	begin (int id=0)
	Returns a const_iterator pointing to the beginning of the vector.

const_iterator	end (int id=0)
	Returns a const_iterator pointing to the end of the vector.

const_reverse_iterator	rbegin (int id=0)
	Returns a const_reverse_iterator pointing to the beginning of the reversed vector. More...

const_reverse_iterator	rend (int id=0)
	Returns a const_reverse_iterator pointing to the end of the reversed vector. More...

unsigned int	size ()
	Returns the size of the vector.

size_type	max_size ()
	Returns the largest possible size of the vector.

size_type	capacity ()
	Number of elements for which memory has been allocated. More...

void	reserve (size_type s)
	A request for allocation of additional memory. More...

void	resize (size_type n, Type t=Type(), int id=0)
	Inserts or erases elements at the end such that the size becomes n.

bool	empty ()
	true if the vector's size is 0.

const_reference	operator[] (size_type n)
	Returns the n'th element.

const_reference	front (int id=0)
	Returns the first element.

const_reference	back (int id=0)
	Returns the last element.

void	swap (VectorClass &x, int id=0)
	Swaps the contents of two vectors.

void	push_back (const Type &x, int id=0)
	Inserts a new element at the end.

void	pop_back (int id=0)
	Removed the last element.

void	clear (int id=0)
	Erases all of the elements.

virtual int	setValueFromVoidPtr (const void *data, unsigned int nr_elements, unsigned int len, int id=0)
	Set the value of the field given a pointer to where the value of the field is. More...

virtual int	getValueAsVoidPtr (void *data, unsigned int &nr_elements, unsigned int len, int id=0)
	Get the value of the data copied into a memory buffer. More...

virtual unsigned int	valueTypeSize ()
	Returns the size in bytes of the value type the mfield encapsulates.

	MFieldBase ()
	Default constructor. Creates an empty MField.

	MFieldBase (size_type sz)
	Creates a MField with space reserved for n elements.

Public Member Functions inherited from H3D::ParsableMField
virtual size_t	getSize ()=0
	Set the value of the field given a string. More...

virtual string	getElementAsString (size_t)
	Get the value of an element of the field as a string.

virtual void	addElementFromString (const string &s)=0
	Add a new element to an MField from a string value.

Public Member Functions inherited from H3D::ParsableField
virtual void	setValueFromString (const string &s)=0
	Set the value of the field given a string. More...

virtual string	getValueAsString (const string &=" ")
	Get the value of the field as a string. More...

Public Member Functions inherited from H3D::Field
	Field ()
	Constructor.

virtual	~Field ()
	Destructor.

void	setName (string _name)
	Sets local the name of the field. Will be used in error reporting.

string	getName ()
	Gets the name of the field.

string	getFullName ()
	Get the full name of the field including the name of the owner node if it exists (ownername.fieldname). More...

virtual string	getTypeName ()
	Returns a string name for this field type.

virtual X3DTypes::X3DType	getX3DType ()
	Returns the X3DType of the field.

virtual void	route (Field *, int id=0)
	Set up a route from this field to the field given as argument. More...

virtual void	routeNoEvent (Field *, int id=0)
	Set up a route from this field to the field given as argument. More...

virtual void	unroute (Field *)
	Remove the route from this field to the field given as argument.

virtual Field *	replaceRoute (Field *f, unsigned int i, int id=0)
	Replace the i:th route to f with a route from this field. More...

virtual Field *	replaceRouteNoEvent (Field *f, unsigned int i, int id=0)
	Replace the i:th route to f with a route from this field. More...

template<class F >
void	route (H3DUniquePtr< F > &f, int id=0)
	Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More...

template<class F >
void	routeNoEvent (H3DUniquePtr< F > &f, int id=0)
	Set up a route from this field to the field residing in the H3DUniquePtr given as argument. More...

template<class F >
void	unroute (H3DUniquePtr< F > &f)
	Remove the route from this field to the field residing in the H3DUniquePtr given as argument.

void	unrouteAll ()
	Remove all the routes from this field.

virtual void	upToDate ()
	Check that the field is up-to-date, if not update() is called to make it up-to-date.

bool	isUpToDate ()
	Returns true if the field is up to date, i.e. More...

virtual void	touch ()
	Generates an event from this field.

Node *	getOwner ()
	Get the Node that contains this field.

void	setOwner (Node *n)
	Set the Node that contains this field.

void	setAccessType (AccessType _access_type)
	Set the access type of the field.

AccessType	getAccessType ()
	Get the access type of the field.

bool	routesTo (Field *f)
	Returns true if this field is routed to the field given as argument.

bool	hasRouteFrom (Field *f)
	Returns true if the field given as argument is routed to this field.

const FieldVector &	getRoutesIn ()
	Get the Fields that are routed to this Field.

const FieldSet &	getRoutesOut ()
	Get the Fields this Field is routed to.

const Event &	getLatestEvent ()
	Get the latest event.

void	setAccessCheck (bool on)
	Set access type checking on or off. More...

bool	isAccessCheckOn ()
	Returns true if checking of access types is on.

Public Member Functions inherited from H3D::MFieldClass
virtual	~MFieldClass ()
	Virtual destructor.

virtual int	setValueFromVoidPtr (void *data, unsigned int nr_elements, unsigned int size, int id=0)

Static Public Member Functions
static string	classTypeName ()
	Returns a string name for this field type e.g. MFInt32.

Static Public Member Functions inherited from H3D::Field
static string	classTypeName ()
	Returns a string name for this field type. More...

Protected Attributes
VectorClass	value
	The encapsulated vector.

Protected Attributes inherited from H3D::Field
string	name
	The name of the field.

bool	event_lock
	If true, stops events from being propagated. More...

bool	update_lock
	If true, stops the update() function from being called in the upToDate() function.

FieldSet	routes_out
	The Fields that this field is routed to.

FieldVector	routes_in
	The Field that are routed to this field.

Event	event
	The last event that happened.

Node *	owner
	The node that contain this field. More...

AccessType	access_type
	The type of access to the field.

bool	access_check_on
	If true, access type checks will be done when getting/setting values and setting up routes. More...

Additional Inherited Members
Protected Member Functions inherited from H3D::TypedField< ParsableMField, void, AnyNumber< MFieldBase< Type, std::vector< Type >, ParsableMField > > >
void	checkFieldType (Field *f, int index)
	Function for checking that a field is of a correct type given type specification according to the TypedField template arguments. More...

void	checkTemplateArguments ()
	Function for checking that a field given TypedField type specification is valid. More...

Protected Member Functions inherited from H3D::Field
virtual void	startEvent ()
	Start a new event from this field. More...

virtual void	propagateEvent (Event e)
	Propagates an event to all Fields we are routed to. More...

virtual void	routeFrom (Field *, int id)
	Set up a route to this field from the field given as argument.

virtual void	unrouteFrom (Field *)
	Remove the route to this field from the field given as argument.

virtual Field *	replaceRouteFrom (Field *f, unsigned int i, int id)
	Replace the i:th route to this field with the field given as argument.

virtual void	update ()
	This function will be called to update the field if it has a pending event when the upToDate() function is called.

void	checkAccessTypeRoute (Field *f, int id)
	Check the access type is correct for performing a route from this field to f. More...

void	checkAccessTypeRouteFrom (Field *f, int id)
	Check the access type is correct for performing a route from f to this field. More...

void	checkAccessTypeGet (int id)
	Check the access type is valid for getting the value of a field. More...

void	checkAccessTypeSet (int id)
	Check the access type is valid for changing the value of a field. More...

int	ownerId ()
	Gets the id of the owner node, -1 if no owner.

bool	isProgramSetting ()
	Returns true if this field is part of program settings fields. More...

void	markProgramSetting (bool used_as_setting)
	Set it this field is used by program settings fields in scene or not.

Detailed Description

template<class Type, class VectorClass = std::vector< Type >, class BaseField = ParsableMField>
class H3D::MFieldBase< Type, VectorClass, BaseField >

The common base class for MField types and MFNode.

It defines the common interface between MFNode and MField <>. It encapsulates a vector of values of a certain type with the Field mechanisms.

Parameters

Type	The type the values in the vector.
VectorClass	The actual vector type.
BaseField	The Field base class to inherit from.

Member Function Documentation

◆ capacity()

template<class Type , class VectorClass = std::vector< Type >, class BaseField = ParsableMField>

size_type H3D::MFieldBase< Type, VectorClass, BaseField >::capacity ( )

inline

Number of elements for which memory has been allocated.

capacity() is always greater than or equal to size().

References H3D::Field::upToDate(), and H3D::MFieldBase< Type, VectorClass, BaseField >::value.

◆ getValueAsVoidPtr()

template<class Type , class VectorClass = std::vector< Type >, class BaseField = ParsableMField>

virtual int H3D::MFieldBase< Type, VectorClass, BaseField >::getValueAsVoidPtr	(	void *	data,
		unsigned int &	nr_elements,
		unsigned int	len,
		int	id = `0`
	)

inlinevirtual

Get the value of the data copied into a memory buffer.

Parameters

data	Buffer to copy the data into.
nr_elements	This parameter will be set to the nr of values in the mfield.
len	The size of the buffer.
id	Id of the node calling this function. Used to check access type.

Returns: If successful: The number of bytes that was copied into the Otherwise -1.

Implements H3D::MFieldClass.

References H3D::Field::upToDate(), and H3D::MFieldBase< Type, VectorClass, BaseField >::value.

◆ rbegin()

template<class Type , class VectorClass = std::vector< Type >, class BaseField = ParsableMField>

const_reverse_iterator H3D::MFieldBase< Type, VectorClass, BaseField >::rbegin ( int id = 0 )

inline

Returns a const_reverse_iterator pointing to the beginning of the reversed vector.

Parameters

id	Id of the node calling this function. Used to check access type.

References H3D::Field::checkAccessTypeGet(), H3D::Field::upToDate(), and H3D::MFieldBase< Type, VectorClass, BaseField >::value.

◆ rend()

template<class Type , class VectorClass = std::vector< Type >, class BaseField = ParsableMField>

const_reverse_iterator H3D::MFieldBase< Type, VectorClass, BaseField >::rend ( int id = 0 )

inline

Returns a const_reverse_iterator pointing to the end of the reversed vector.

Parameters

id	Id of the node calling this function. Used to check access type.

References H3D::Field::checkAccessTypeGet(), H3D::Field::upToDate(), and H3D::MFieldBase< Type, VectorClass, BaseField >::value.

◆ reserve()

template<class Type , class VectorClass = std::vector< Type >, class BaseField = ParsableMField>

void H3D::MFieldBase< Type, VectorClass, BaseField >::reserve ( size_type s )

inline

A request for allocation of additional memory.

If s is less than or equal to capacity(), this call has no effect. Otherwise, it is a request for allocation of additional memory. If the request is successful, then capacity() is greater than or equal to s; otherwise, capacity() is unchanged. In either case, size() is unchanged.

References H3D::Field::upToDate(), and H3D::MFieldBase< Type, VectorClass, BaseField >::value.

◆ setValueFromVoidPtr()

template<class Type , class VectorClass = std::vector< Type >, class BaseField = ParsableMField>

virtual int H3D::MFieldBase< Type, VectorClass, BaseField >::setValueFromVoidPtr	(	const void *	data,
		unsigned int	nr_elements,
		unsigned int	len,
		int	id = `0`
	)

inlinevirtual

Set the value of the field given a pointer to where the value of the field is.

Parameters

data	A pointer to the data.
nr_elements	The number of values in the mfield.
len	The size in bytes of the each value stored in the data.
id	Id of the node calling this function. Used to check access type.
