This is a X3DSensorNode for reading values from a 3DConnexion motion controller such as the SpaceTraveller or SpaceMouse 5000. More...

#include <H3D/SpaceWareSensor.h>

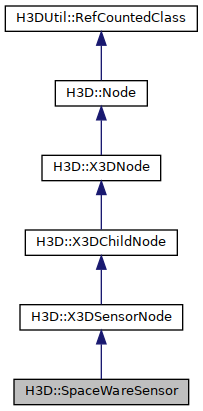

Inheritance diagram for H3D::SpaceWareSensor:

Classes
struct	AccumulateRotation
	This class is an AutoUpdate class that accumulates the rotation values routed to it, i.e. More...

struct	AccumulateTranslation
	This class is an AutoUpdate class that accumulates the Vec3f values routed to it, i.e. More...

class	ResetAccumulatedRotation
	This class is an AutoUpdate class that sets the field accumulatedRotation to its input value and also sets accumulatedYaw, accumulatedPitch and accumulatedRoll to a value dependent on input value. More...

class	ResetAccumulatedTranslation
	This class is an AutoUpdate class that sets the field accumulatedTranslation to its input value. More...

struct	ScaleRotation
	Updates itself to the Rotation routed to it where the angle is scaled by the scale factor. More...

struct	ScaleTranslation
	Updates itself to the SFVec3f routed to it scaled by the scale factor. More...

Public Member Functions
	SpaceWareSensor (Inst< SFBool > _enabled=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isActive=0, Inst< SFVec3f > _rawTranslation=0, Inst< SFRotation > _rawYaw=0, Inst< SFRotation > _rawPitch=0, Inst< SFRotation > _rawRoll=0, Inst< SFRotation > _rawRotation=0, Inst< ScaleTranslation > _instantTranslation=0, Inst< ScaleRotation > _instantYaw=0, Inst< ScaleRotation > _instantPitch=0, Inst< ScaleRotation > _instantRoll=0, Inst< ScaleRotation > _instantRotation=0, Inst< AccumulateTranslation > _accumulatedTranslation=0, Inst< AccumulateRotation > _accumulatedYaw=0, Inst< AccumulateRotation > _accumulatedPitch=0, Inst< AccumulateRotation > _accumulatedRoll=0, Inst< AccumulateRotation > _accumulatedRotation=0, Inst< SFFloat > _translationScale=0, Inst< SFFloat > _rotationScale=0, Inst< SFInt32 > _buttons=0, Inst< SFInt32 > _latestButtonPress=0, Inst< SFInt32 > _latestButtonRelease=0, Inst< SFBool > _accumulateTimeDependent=0, Inst< ResetAccumulatedTranslation > _resetAccumulatedTranslation=0, Inst< ResetAccumulatedRotation > _resetAccumulatedRotation=0)
	Constructor.

Public Member Functions inherited from H3D::X3DSensorNode
	X3DSensorNode (Inst< SFBool > _enabled=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isActive=0)
	Constructor.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual void	traverseSG (TraverseInfo &ti)
	traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Attributes
H3DUniquePtr< SFVec3f >	rawTranslation
	Contains the current translation as reported by the device. More...

H3DUniquePtr< SFRotation >	rawYaw
	Contains the current rotation around the x-axis as reported by the device. More...

H3DUniquePtr< SFRotation >	rawPitch
	Contains the current rotation around the y-axis as reported by the device. More...

H3DUniquePtr< SFRotation >	rawRoll
	Contains the current rotation around the z-axis as reported by the device. More...

H3DUniquePtr< SFRotation >	rawRotation
	Contains the current total rotation as reported by the device. More...

H3DUniquePtr< ScaleTranslation >	instantTranslation
	rawTranslation scaled by rotationScale More...

H3DUniquePtr< ScaleRotation >	instantYaw
	rawYaw scaled by rotationScale More...

H3DUniquePtr< ScaleRotation >	instantPitch
	rawPitch scaled by rotationScale More...

H3DUniquePtr< ScaleRotation >	instantRoll
	rawRoll scaled by rotationScale More...

H3DUniquePtr< ScaleRotation >	instantRotation
	Composite rotation of instantYaw, instantPitch and instantRoll. More...

H3DUniquePtr< AccumulateTranslation >	accumulatedTranslation
	The sum of all instantTranslation values. More...

H3DUniquePtr< AccumulateRotation >	accumulatedYaw
	The sum of all instantYaw values. More...

H3DUniquePtr< AccumulateRotation >	accumulatedPitch
	The sum of all instantPitch values. More...

H3DUniquePtr< AccumulateRotation >	accumulatedRoll
	The sum of all instantRoll values. More...

H3DUniquePtr< AccumulateRotation >	accumulatedRotation
	The sum of all instantRotation values. More...

H3DUniquePtr< SFFloat >	translationScale
	The scale factor for the instantTranslation field. More...

H3DUniquePtr< SFFloat >	rotationScale
	The scale factor for the instant version of the different rotation fields. More...

H3DUniquePtr< SFInt32 >	buttons
	Integer representing the current status of the buttons. More...

H3DUniquePtr< SFInt32 >	latestButtonPress
	The button number of the last button that was pressed. More...

H3DUniquePtr< SFInt32 >	latestButtonRelease
	The button number of the last button that was released. More...

H3DUniquePtr< SFBool >	accumulateTimeDependent
	If true the Accumulated-fields depends on time passed since last time accumulated was updated instead of frame rate. More...

H3DUniquePtr< ResetAccumulatedTranslation >	resetAccumulatedTranslation
	Resets the value of accumulatedTranslation to its own value. More...

H3DUniquePtr< ResetAccumulatedRotation >	resetAccumulatedRotation
	Resets the value of accumulatedRotation to its own value. More...

Public Attributes inherited from H3D::X3DSensorNode
H3DUniquePtr< SFBool >	enabled
	If enabled is true the sensor node is enabled otherwise it is disabled and will not generate any output. More...

H3DUniquePtr< SFBool >	isActive
	A sensor is active when some special conditions are fulfilled and it will then generate extra output. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Static Public Attributes
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DSensorNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Additional Inherited Members
Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Detailed Description

This is a X3DSensorNode for reading values from a 3DConnexion motion controller such as the SpaceTraveller or SpaceMouse 5000.

Examples:

SpaceWareSensor.x3d ( Source )

Internal routes:

Member Data Documentation

◆ accumulatedPitch

H3DUniquePtr< AccumulateRotation> H3D::SpaceWareSensor::accumulatedPitch

The sum of all instantPitch values.

Access type: outputOnly

Referenced by SpaceWareSensor(), and H3D::SpaceWareSensor::ResetAccumulatedRotation::update().

◆ accumulatedRoll

H3DUniquePtr< AccumulateRotation> H3D::SpaceWareSensor::accumulatedRoll

The sum of all instantRoll values.

Access type: outputOnly

Referenced by SpaceWareSensor(), and H3D::SpaceWareSensor::ResetAccumulatedRotation::update().

◆ accumulatedRotation

H3DUniquePtr< AccumulateRotation> H3D::SpaceWareSensor::accumulatedRotation

The sum of all instantRotation values.

Access type: outputOnly

Referenced by SpaceWareSensor(), and H3D::SpaceWareSensor::ResetAccumulatedRotation::update().

◆ accumulatedTranslation

H3DUniquePtr< AccumulateTranslation> H3D::SpaceWareSensor::accumulatedTranslation

The sum of all instantTranslation values.

Access type: outputOnly

Referenced by SpaceWareSensor(), and H3D::SpaceWareSensor::ResetAccumulatedTranslation::update().

◆ accumulatedYaw

H3DUniquePtr< AccumulateRotation> H3D::SpaceWareSensor::accumulatedYaw

The sum of all instantYaw values.

Access type: outputOnly

Referenced by SpaceWareSensor(), and H3D::SpaceWareSensor::ResetAccumulatedRotation::update().

◆ accumulateTimeDependent

H3DUniquePtr< SFBool > H3D::SpaceWareSensor::accumulateTimeDependent

If true the Accumulated-fields depends on time passed since last time accumulated was updated instead of frame rate.

Access type: inputOutput

Referenced by SpaceWareSensor().

◆ buttons

H3DUniquePtr< SFInt32 > H3D::SpaceWareSensor::buttons

Integer representing the current status of the buttons.

Each bit represents the status of a button where 1 means that it is pressed. There are three special button bits: SI_RESET_BIT, SI_PICK_BIT and
SI_DIALOG_BIT (these buttons are not present on all devices). Aside from these the first button is the 0x2 bit, the second is the 0x4 and so on.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ instantPitch

H3DUniquePtr< ScaleRotation> H3D::SpaceWareSensor::instantPitch

rawPitch scaled by rotationScale

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ instantRoll

H3DUniquePtr< ScaleRotation> H3D::SpaceWareSensor::instantRoll

rawRoll scaled by rotationScale

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ instantRotation

H3DUniquePtr< ScaleRotation> H3D::SpaceWareSensor::instantRotation

Composite rotation of instantYaw, instantPitch and instantRoll.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ instantTranslation

H3DUniquePtr< ScaleTranslation> H3D::SpaceWareSensor::instantTranslation

rawTranslation scaled by rotationScale

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ instantYaw

H3DUniquePtr< ScaleRotation> H3D::SpaceWareSensor::instantYaw

rawYaw scaled by rotationScale

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ latestButtonPress

H3DUniquePtr< SFInt32 > H3D::SpaceWareSensor::latestButtonPress

The button number of the last button that was pressed.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ latestButtonRelease

H3DUniquePtr< SFInt32 > H3D::SpaceWareSensor::latestButtonRelease

The button number of the last button that was released.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ rawPitch

H3DUniquePtr< SFRotation> H3D::SpaceWareSensor::rawPitch

Contains the current rotation around the y-axis as reported by the device.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ rawRoll

H3DUniquePtr< SFRotation> H3D::SpaceWareSensor::rawRoll

Contains the current rotation around the z-axis as reported by the device.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ rawRotation

H3DUniquePtr< SFRotation> H3D::SpaceWareSensor::rawRotation

Contains the current total rotation as reported by the device.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ rawTranslation

H3DUniquePtr< SFVec3f> H3D::SpaceWareSensor::rawTranslation

Contains the current translation as reported by the device.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ rawYaw

H3DUniquePtr< SFRotation> H3D::SpaceWareSensor::rawYaw

Contains the current rotation around the x-axis as reported by the device.

Access type: outputOnly

Referenced by SpaceWareSensor().

◆ resetAccumulatedRotation

H3DUniquePtr< ResetAccumulatedRotation > H3D::SpaceWareSensor::resetAccumulatedRotation

Resets the value of accumulatedRotation to its own value.

Also resets accumulatedYaw, accumulatedPitch and accumulatedRoll

Access type: inputOnly

Referenced by SpaceWareSensor().

◆ resetAccumulatedTranslation

H3DUniquePtr< ResetAccumulatedTranslation > H3D::SpaceWareSensor::resetAccumulatedTranslation

Resets the value of accumulatedTranslation to its own value.

Access type: inputOnly

Referenced by SpaceWareSensor().

◆ rotationScale

H3DUniquePtr< SFFloat> H3D::SpaceWareSensor::rotationScale

The scale factor for the instant version of the different rotation fields.

Access type: inputOutput
Default value: 1

Referenced by SpaceWareSensor().

◆ translationScale

H3DUniquePtr< SFFloat> H3D::SpaceWareSensor::translationScale

The scale factor for the instantTranslation field.

Access type: inputOutput
Default value: 1

Referenced by SpaceWareSensor().

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Public Attributes

Static Public Attributes

Additional Inherited Members

Detailed Description

Member Data Documentation

◆ accumulatedPitch

◆ accumulatedRoll

◆ accumulatedRotation

◆ accumulatedTranslation

◆ accumulatedYaw

◆ accumulateTimeDependent

◆ buttons

◆ instantPitch

◆ instantRoll

◆ instantRotation

◆ instantTranslation

◆ instantYaw

◆ latestButtonPress

◆ latestButtonRelease

◆ rawPitch

◆ rawRoll

◆ rawRotation

◆ rawTranslation

◆ rawYaw

◆ resetAccumulatedRotation

◆ resetAccumulatedTranslation

◆ rotationScale

◆ translationScale
