The Viewpoint node defines a viewpoint that provides a perspective view of the scene. More...

#include <H3D/Viewpoint.h>

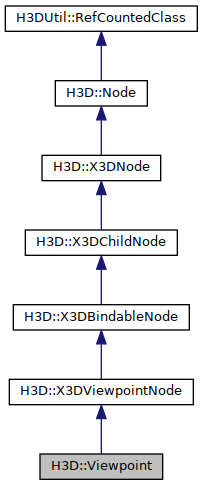

Inheritance diagram for H3D::Viewpoint:

Public Member Functions
	Viewpoint (Inst< SFSetBind > _set_bind=0, Inst< SFVec3f > _centerOfRotation=0, Inst< SFString > _description=0, Inst< SFFloat > _fieldOfView=0, Inst< SFBool > _jump=0, Inst< SFNode > _metadata=0, Inst< SFOrientation > _orientation=0, Inst< SFPosition > _position=0, Inst< SFBool > _retainUserOffsets=0, Inst< SFTime > _bindTime=0, Inst< SFBool > _isBound=0, Inst< SFMatrix4f > _accForwardMatrix=0, Inst< SFMatrix4f > _accInverseMatrix=0)
	Constructor.

virtual bool	windowFromfieldOfView (H3DFloat width, H3DFloat height, H3DFloat clip_near, H3DFloat &top, H3DFloat &bottom, H3DFloat &right, H3DFloat &left)
	Calculates the top, bottom, right and left clipping values for the view frustum at the near plane. More...

virtual void	setupProjection (EyeMode eye_mode, H3DFloat width, H3DFloat height, H3DFloat clip_near, H3DFloat clip_far, StereoInfo *stereo_info=0, bool update_stereo_proj_shift=false)
	Set up perspective projection matrix. More...

Public Member Functions inherited from H3D::X3DViewpointNode
	X3DViewpointNode (Inst< SFSetBind > _set_bind=0, Inst< SFVec3f > _centerOfRotation=0, Inst< SFString > _description=0, Inst< SFBool > _jump=0, Inst< SFNode > _metadata=0, Inst< SFOrientation > _orientation=0, Inst< SFPosition > _position=0, Inst< SFBool > _retainUserOffsets=0, Inst< SFTime > _bindTime=0, Inst< SFBool > _isBound=0, Inst< SFMatrix4f > _accForwardMatrix=0, Inst< SFMatrix4f > _accInverseMatrix=0, Inst< SFSumVec3f > _totalPosition=0, Inst< SFSumRotation > _totalOrientation=0)
	Constructor.

virtual	~X3DViewpointNode ()
	Destructor.

virtual void	traverseSG (TraverseInfo &ti)
	Traverse the scenegraph. More...

virtual void	toStackTop ()
	Move this instance to the stack top.

virtual void	removeFromStack ()
	Remove the bindable node from the stack.

virtual void	rotateAround (Rotation rotation, bool collision, Vec3f rotation_center)
	Function for rotating the viewpoint around rotation_center without changing the position or orientation fields. More...

virtual void	rotateAroundSelf (Rotation rotation)
	without changing the position or orientation fields.

virtual void	translate (Vec3f direction, bool collision, const vector< H3DFloat > &avatar_size, X3DChildNode *topNode)
	Function for translating the viewpoint with direction without changing the position or orientation fields. More...

virtual void	moveTo (Vec3f new_pos)
	Function for moving the viewpoint to the new_pos without changing the position or orientation fields.

virtual bool	detectCollision (const vector< H3DFloat > &avatar_size, X3DChildNode *topNode)
	Function for detecting collision between avatar and objects.

virtual Matrix4f	getProjectionMatrix (EyeMode eye_mode, H3DFloat width, H3DFloat height, H3DFloat clip_near, H3DFloat clip_far, StereoInfo *stereo_info=0, bool mirrored_in_y=false)
	Gets the projectionMatrix for this viewpoint, i.e. More...

virtual void	setupViewMatrix (EyeMode eye_mode, StereoInfo *stereo_info=0, bool update_stereo_view_shift=false)
	Adds a view matrix to the current OpenGL matrix to transform from view coordinates (camera/viewpoint space) to world space. More...

virtual Matrix4f	getViewMatrix (EyeMode eye_mode, StereoInfo *stereo_info=0)
	Gets the viewMatrix for this viewpoint, i.e. More...

bool	isTopLevel ()
	True if this viewpoint node exists outside a ViewpointGroup.

bool	inSceneGraph ()
	True if this viewpoint node exists in scene graph.

Public Member Functions inherited from H3D::X3DBindableNode
	X3DBindableNode (const string &_bindable_stack_name, Inst< SFSetBind > _set_bind=0, Inst< SFNode > _metadata=0, Inst< SFTime > _bindTime=0, Inst< SFBool > _isBound=0)
	Constructor.

virtual	~X3DBindableNode ()
	Destructor.

virtual void	initialize ()
	Initialize this bindable stack, toStackTop is done.

bool	isStackTop ()
	Is this node at the top of the stack.

Public Member Functions inherited from H3D::X3DChildNode
	X3DChildNode (Inst< SFNode > _metadata=0)
	Constructor.

Public Member Functions inherited from H3D::X3DNode
	X3DNode (Inst< SFNode > _metadata=0)
	Constructor.

X3DMetadataObject *	getMetadataByName (const string &_name)
	Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More...

Public Member Functions inherited from H3D::Node
	Node ()
	Constructor.

virtual Node *	clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL)
	Returns a new instance of this node type with the same state as this one. More...

virtual	~Node ()
	Destructor.

X3DPrototypeInstance *	getProtoInstanceParent ()
	If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More...

void	setProtoInstanceParent (X3DPrototypeInstance *p)
	Set the X3DPrototypeInstance this node is the the root node if applicaple.

virtual void	render ()
	the render() function is used for the depth-first rendering traversal of the scene-graph. More...

virtual bool	lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result)
	Detect intersection between a line segment and the Node. More...

virtual void	closestPoint (const Vec3f &p, NodeIntersectResult &result)
	Find closest point on Node to p. More...

virtual bool	movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result)
	Detect collision between a moving sphere and the Node. More...

virtual string	defaultXMLContainerField ()
	Returns the default xml containerField attribute value. More...

virtual Field *	getField (const string &_name) const
	return a pointer to the field specified by name within this instance

int	addDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

int	removeDestructCallback (void(func)(Node , void ), void args)
	Add a callback function to be run on destruction of node. More...

Public Attributes
H3DUniquePtr< SFFloat >	fieldOfView
	The fieldOfView field specifies a preferred minimum viewing angle from this viewpoint in radians. More...

Public Attributes inherited from H3D::X3DViewpointNode
H3DUniquePtr< SFVec3f >	centerOfRotation
	The centerOfRotation field specifies a center about which to rotate the user's eyepoint when in EXAMINE mode. More...

H3DUniquePtr< SFString >	description
	The description field specifies a textual description of the X3DViewpointNode node. More...

H3DUniquePtr< SFBool >	jump
	The jump field specifies whether the user's view "jumps" to the position and orientation of a bound X3DViewpointNode node or remains unchanged. More...

H3DUniquePtr< SFOrientation >	orientation
	Specifies the orientation of the X3DViewpointNode relative to the default orientation. More...

H3DUniquePtr< SFPosition >	position
	Specifies the position of the X3DViewpointNode the local coordinate system. More...

H3DUniquePtr< SFBool >	retainUserOffsets
	The retainUserOffsets field indicates whether a viewpoint needs to retain (TRUE) or reset to zero (FALSE) any prior user navigation offsets from defined viewpoint position, orientation. More...

H3DUniquePtr< SFMatrix4f >	accForwardMatrix
	The matrix from local space to global space. More...

H3DUniquePtr< SFMatrix4f >	accInverseMatrix
	The matrix from global space to the local space the X3DViewpointNode resides in. More...

H3DUniquePtr< SFSumVec3f >	totalPosition
	Returns the sum of the field position and the internal field relPos used for navigation. More...

H3DUniquePtr< SFSumRotation >	totalOrientation
	Returns the sum of the field orientation and the internal field relOrn used for navigation. More...

H3DUniquePtr< SFVec3f >	relPos
	Internal field that stores the relative offset from the position set by the user. More...

H3DUniquePtr< SFRotation >	relOrn
	Internal field that stores the relative offset from the orientation set by the user. More...

Public Attributes inherited from H3D::X3DBindableNode
H3DUniquePtr< SFSetBind >	set_bind
	Input field to bind or unbind the node. More...

H3DUniquePtr< SFTime >	bindTime
	The bindTime field is the time at which the Viewpoint node is bound or unbound. More...

H3DUniquePtr< SFBool >	isBound
	Output field telling if this node is bound or not. More...

Public Attributes inherited from H3D::X3DNode
H3DUniquePtr< SFNode >	metadata
	Meta data about the node. More...

Additional Inherited Members
Public Types inherited from H3D::X3DViewpointNode
enum	EyeMode { MONO = 0 , LEFT_EYE = 1 , RIGHT_EYE = 2 , BOTH_EYE = 3 }
	Used with setupProjection function to indicate for which eye the frustum should be calculated. More...

Public Types inherited from H3D::Node
typedef std::map< Node , Node >	DeepCopyMap
	A map type used during a deep copy clone() to map from original nodes to cloned nodes.

Static Public Member Functions inherited from H3D::X3DViewpointNode
static X3DViewpointNode *	getActive ()
	Convenience function to get the top of the X3DViewpointNode stack.

static const ViewpointList &	getAllViewpoints ()
	Returns a list of all current X3DViewpointNode instances.

static bool	viewpointsChanged ()
	True on any addition/deletion/in_scene_graph status change of viewpoints, reset once inquired.

Static Public Member Functions inherited from H3D::X3DBindableNode
static X3DBindableNode *	getActive (const string &bindable_stack_name)
	Returns the active bindable instance, i.e. More...

static const StackType &	getStack (const string &bindable_stack_name)
	Get the stack for a given name.

static const StackMapType &	getStackMap ()
	Return the map of all bindable nodes available.

Static Public Member Functions inherited from H3D::Node
static unsigned int	nrNodesAlive ()
	Returns the nr of nodes currently alive, i.e. nodes created but not destructed.

static int	nrNodesCreated ()
	Returns the number of nodes created in total since the start of the program.

Static Public Attributes inherited from H3D::X3DBindableNode
static H3DNodeDatabase	database
	The H3DNodedatabase for this node.

Static Public Attributes inherited from H3D::X3DNode
static H3DNodeDatabase	database
	The H3DNodeDatabase for this node.

Protected Member Functions inherited from H3D::Node
void	cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for the clone() method. More...

Static Protected Member Functions inherited from H3D::Node
static Node *	getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap)
	A helper function for nodes that implement clone() More...

Protected Attributes inherited from H3D::X3DViewpointNode
bool	is_top_level
	True if the viewpooint exists outside a ViewpointGroup.

bool	in_scene_graph
	True is the viewpoint exists in scene graph.

Static Protected Attributes inherited from H3D::X3DBindableNode
static StackMapType	stack
	The bindable stack.

Detailed Description

The Viewpoint node defines a viewpoint that provides a perspective view of the scene.

A perspective view is one in which all projectors are coalesce at position.

The fieldOfView field specifies a preferred minimum viewing angle from this viewpoint in radians. A small field of view roughly corresponds to a telephoto lens; a large field of view roughly corresponds to a wide-angle lens. The field of view shall be greater than zero and smaller than pi. The value of fieldOfView represents the minimum viewing angle in any direction axis perpendicular to the view. A browser with a rectangular viewing projection has the following relationship: display width tan(FOVhorizontal/2)
-----------— = ----------------—
display height tan(FOVvertical/2)
where the smaller of display width or display height determines which angle equals the fieldOfView (the larger angle is computed using the relationship described above). The larger angle shall not exceed pi and may force the smaller angle to be less than fieldOfView in order to sustain the aspect ratio.

Examples:

Viewpoint.x3d ( Source )
Viewpoint1.x3d ( Source )

Member Function Documentation

◆ setupProjection()

void Viewpoint::setupProjection	(	EyeMode	eye_mode,
		H3DFloat	width,
		H3DFloat	height,
		H3DFloat	clip_near,
		H3DFloat	clip_far,
		StereoInfo *	stereo_info = `0`,
		bool	update_stereo_proj_shift = `false`
	)

virtual

Set up perspective projection matrix.

clip_far = -1 means far plane at infinity.

Implements H3D::X3DViewpointNode.

◆ windowFromfieldOfView()

bool Viewpoint::windowFromfieldOfView	(	H3DFloat	width,
		H3DFloat	height,
		H3DFloat	clip_near,
		H3DFloat &	top,
		H3DFloat &	bottom,
		H3DFloat &	right,
		H3DFloat &	left
	)

virtual

Calculates the top, bottom, right and left clipping values for the view frustum at the near plane.

Must be implemented by all subclasses.

Parameters

[in]	width	Width of window in number of pixels.
[in]	height	Height of window in number of pixels.
[in]	clip_near	Distance to near plane from viewpoint in meters.
[out]	top	The top clipping value.
[out]	bottom	The bottom clipping value.
[out]	right	The right clipping value.
[out]	left	The left clipping value.

Implements H3D::X3DViewpointNode.

References fieldOfView.

Member Data Documentation

◆ fieldOfView

H3DUniquePtr< SFFloat > H3D::Viewpoint::fieldOfView

The fieldOfView field specifies a preferred minimum viewing angle from this viewpoint in radians.

Access type: inputOutput
Default value: pi/4
Value range: (0,pi)

Referenced by Viewpoint(), and windowFromfieldOfView().

The documentation for this class was generated from the following files:
