Registry is a singleton factory which stores the reader/writers which are linked in at runtime for reading non-native file formats. More...

Inheritance diagram for osgDB::Registry:

[legend]

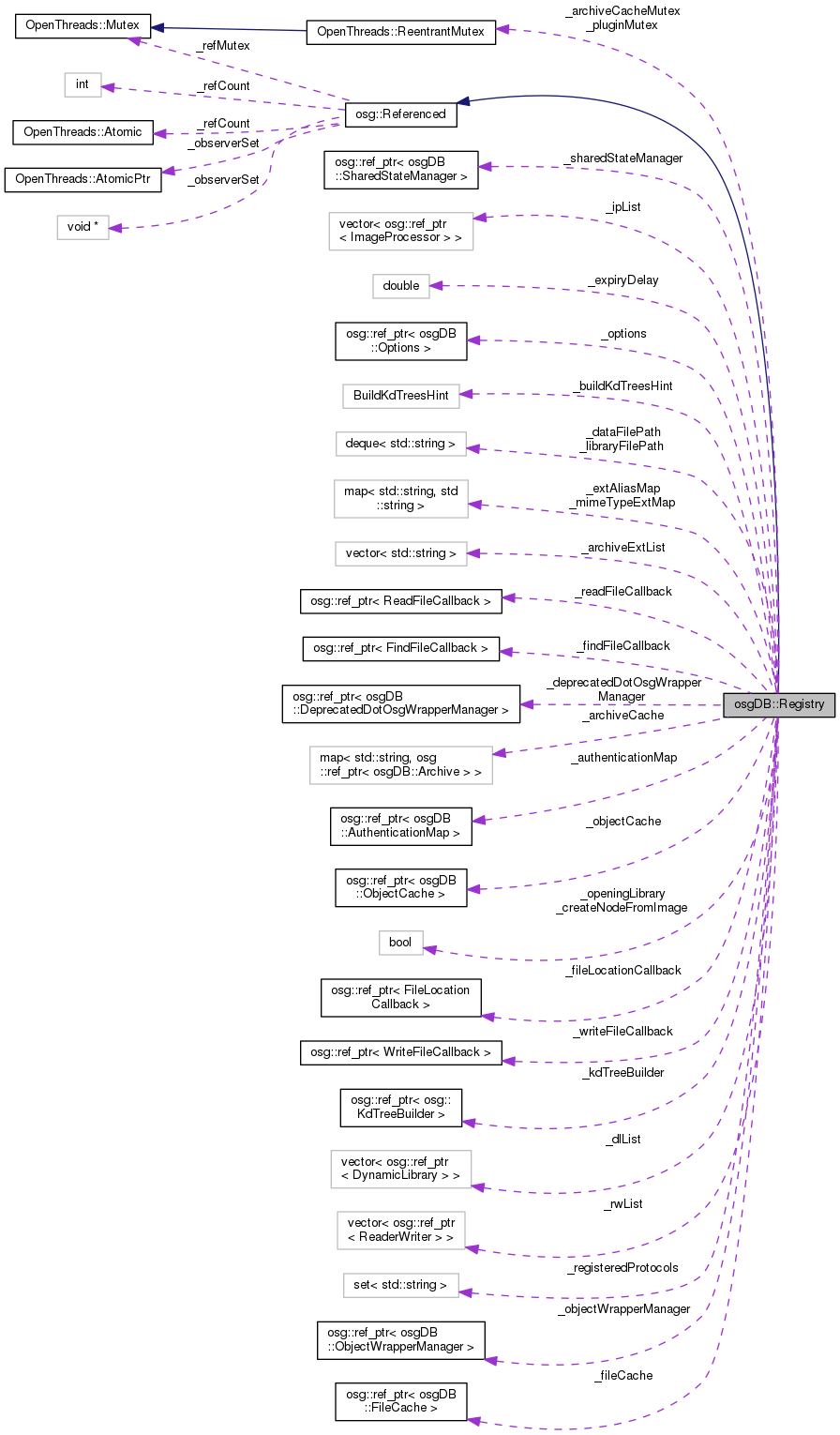

Collaboration diagram for osgDB::Registry:

[legend]

Classes
struct	ReadFunctor
	Functor used in internal implementations. More...

Public Types
enum	LoadStatus { NOT_LOADED = 0, PREVIOUSLY_LOADED, LOADED }

typedef std::map< std::string, std::string >	MimeTypeExtensionMap

typedef std::vector< osg::ref_ptr< ReaderWriter > >	ReaderWriterList

typedef std::vector< osg::ref_ptr< ImageProcessor > >	ImageProcessorList

typedef class osgDB::FindFileCallback	FindFileCallback

typedef class osgDB::ReadFileCallback	ReadFileCallback

typedef class osgDB::WriteFileCallback	WriteFileCallback

typedef class osgDB::FileLocationCallback	FileLocationCallback

typedef std::vector< std::string >	ArchiveExtensionList

Public Member Functions
void	readCommandLine (osg::ArgumentParser &commandLine)
	read the command line arguments. More...

void	addFileExtensionAlias (const std::string mapExt, const std::string toExt)
	register an .fileextension alias to mapExt toExt, the later should be the extension name of the readerwriter plugin library. More...

bool	readPluginAliasConfigurationFile (const std::string &file)
	Reads a file that configures extension mappings. More...

void	addMimeTypeExtensionMapping (const std::string fromMimeType, const std::string toExt)
	Registers a mapping of a mime-type to an extension. More...

MimeTypeExtensionMap &	getMimeTypeExtensionMap ()

const MimeTypeExtensionMap &	getMimeTypeExtensionMap () const

void	addReaderWriter (ReaderWriter *rw)

void	removeReaderWriter (ReaderWriter *rw)

void	addImageProcessor (ImageProcessor *ip)

void	removeImageProcessor (ImageProcessor *ip)

std::string	createLibraryNameForFile (const std::string &fileName)
	create the platform specific library name associated with file. More...

std::string	createLibraryNameForExtension (const std::string &ext)
	create the platform specific library name associated with file extension. More...

std::string	createLibraryNameForNodeKit (const std::string &name)
	create the platform specific library name associated with nodekit library name. More...

LoadStatus	loadLibrary (const std::string &fileName)
	find the library in the OSG_LIBRARY_PATH and load it. More...

bool	closeLibrary (const std::string &fileName)
	close the attached library with specified name. More...

void	closeAllLibraries ()
	close all libraries. More...

ReaderWriter *	getReaderWriterForExtension (const std::string &ext)
	get a reader writer which handles specified extension. More...

ReaderWriter *	getReaderWriterForMimeType (const std::string &mimeType)
	gets a reader/writer that handles the extension mapped to by one of the registered mime-types. More...

ReaderWriterList &	getReaderWriterList ()
	get list of all registered ReaderWriters. More...

const ReaderWriterList &	getReaderWriterList () const
	get const list of all registered ReaderWriters. More...

void	getReaderWriterListForProtocol (const std::string &protocol, ReaderWriterList &results) const
	get a list of registered ReaderWriters which can handle given protocol

ReaderWriter *	getReaderWriterForProtocolAndExtension (const std::string &protocol, const std::string &extension)

ImageProcessor *	getImageProcessor ()
	get a image processor if available. More...

ImageProcessor *	getImageProcessorForExtension (const std::string &ext)
	get a image processor which is associated specified extension. More...

ImageProcessorList &	getImageProcessorList ()
	get list of all registered ImageProcessors. More...

const ImageProcessorList &	getImageProcessorList () const
	get const list of all registered ImageProcessors. More...

void	setFindFileCallback (FindFileCallback *cb)
	Set the Registry callback to use in place of the default findFile calls. More...

FindFileCallback *	getFindFileCallback ()
	Get the findFile callback. More...

const FindFileCallback *	getFindFileCallback () const
	Get the const findFile callback. More...

std::string	findDataFile (const std::string &fileName, const Options *options, CaseSensitivity caseSensitivity)

std::string	findDataFileImplementation (const std::string &fileName, const Options *options, CaseSensitivity caseSensitivity)

std::string	findLibraryFile (const std::string &fileName, const Options *options, CaseSensitivity caseSensitivity)

std::string	findLibraryFileImplementation (const std::string &fileName, const Options *options, CaseSensitivity caseSensitivity)

void	setReadFileCallback (ReadFileCallback *cb)
	Set the Registry callback to use in place of the default readFile calls. More...

ReadFileCallback *	getReadFileCallback ()
	Get the readFile callback. More...

const ReadFileCallback *	getReadFileCallback () const
	Get the const readFile callback. More...

ReaderWriter::ReadResult	openArchive (const std::string &fileName, ReaderWriter::ArchiveStatus status, unsigned int indexBlockSizeHint, const Options *options)

ReaderWriter::ReadResult	openArchiveImplementation (const std::string &fileName, ReaderWriter::ArchiveStatus status, unsigned int indexBlockSizeHint, const Options *options)

ReaderWriter::ReadResult	readObject (const std::string &fileName, const Options *options, bool buildKdTreeIfRequired=true)

ReaderWriter::ReadResult	readObjectImplementation (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readImage (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readImageImplementation (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readHeightField (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readHeightFieldImplementation (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readNode (const std::string &fileName, const Options *options, bool buildKdTreeIfRequired=true)

ReaderWriter::ReadResult	readNodeImplementation (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readShader (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readShaderImplementation (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readScript (const std::string &fileName, const Options *options)

ReaderWriter::ReadResult	readScriptImplementation (const std::string &fileName, const Options *options)

void	setWriteFileCallback (WriteFileCallback *cb)
	Set the Registry callback to use in place of the default writeFile calls. More...

WriteFileCallback *	getWriteFileCallback ()
	Get the writeFile callback. More...

const WriteFileCallback *	getWriteFileCallback () const
	Get the const writeFile callback. More...

ReaderWriter::WriteResult	writeObject (const osg::Object &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeObjectImplementation (const osg::Object &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeImage (const osg::Image &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeImageImplementation (const osg::Image &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeHeightField (const osg::HeightField &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeHeightFieldImplementation (const osg::HeightField &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeNode (const osg::Node &node, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeNodeImplementation (const osg::Node &node, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeShader (const osg::Shader &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeShaderImplementation (const osg::Shader &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeScript (const osg::Script &obj, const std::string &fileName, const Options *options)

ReaderWriter::WriteResult	writeScriptImplementation (const osg::Script &obj, const std::string &fileName, const Options *options)

void	_buildKdTreeIfRequired (ReaderWriter::ReadResult &result, const Options *options)

void	setFileLocationCallback (FileLocationCallback *cb)
	Set the callback to use inform to the DatabasePager whether a file is located on local or remote file system. More...

FileLocationCallback *	getFileLocationCallback () const
	Get the callback to use inform to the DatabasePager whether a file is located on local or remote file system. More...

void	setBuildKdTreesHint (Options::BuildKdTreesHint hint)
	Set whether the KdTrees should be built for geometry in the loader model. More...

Options::BuildKdTreesHint	getBuildKdTreesHint () const
	Get whether the KdTrees should be built for geometry in the loader model. More...

void	setKdTreeBuilder (osg::KdTreeBuilder *builder)
	Set the KdTreeBuilder visitor that is used to build KdTree on loaded models. More...

osg::KdTreeBuilder *	getKdTreeBuilder ()
	Get the KdTreeBuilder visitor that is used to build KdTree on loaded models. More...

void	setFileCache (FileCache *fileCache)
	Set the FileCache that is used to manage local storage of files downloaded from the internet. More...

FileCache *	getFileCache ()
	Get the FileCache that is used to manage local storage of files downloaded from the internet. More...

const FileCache *	getFileCache () const
	Get the const FileCache that is used to manage local storage of files downloaded from the internet. More...

void	setAuthenticationMap (AuthenticationMap *authenticationMap)
	Set the password map to be used by plugins when access files from secure locations. More...

AuthenticationMap *	getAuthenticationMap ()
	Get the password map to be used by plugins when access files from secure locations. More...

const AuthenticationMap *	getAuthenticationMap () const
	Get the password map to be used by plugins when access files from secure locations. More...

void	setCreateNodeFromImage (bool flag)

bool	getCreateNodeFromImage () const

void	setOptions (Options *opt)

Options *	getOptions ()

const Options *	getOptions () const

void	initFilePathLists ()
	initialize both the Data and Library FilePaths, by default called by the constructor, so it should only be required if you want to force the re-reading of environmental variables. More...

void	initDataFilePathList ()
	initialize the Data FilePath by reading the OSG_FILE_PATH environmental variable. More...

void	setDataFilePathList (const FilePathList &filepath)
	Set the data file path using a list of paths stored in a FilePath, which is used when search for data files. More...

void	setDataFilePathList (const std::string &paths)
	Set the data file path using a single string delimited either with ';' (Windows) or ':' (All other platforms), which is used when search for data files. More...

FilePathList &	getDataFilePathList ()
	get the data file path which is used when search for data files. More...

const FilePathList &	getDataFilePathList () const
	get the const data file path which is used when search for data files. More...

void	initLibraryFilePathList ()
	initialize the Library FilePath by reading the OSG_LIBRARY_PATH and the appropriate system environmental variables

void	setLibraryFilePathList (const FilePathList &filepath)
	Set the library file path using a list of paths stored in a FilePath, which is used when search for data files. More...

void	setLibraryFilePathList (const std::string &paths)
	Set the library file path using a single string delimited either with ';' (Windows) or ':' (All other platforms), which is used when search for data files. More...

FilePathList &	getLibraryFilePathList ()
	get the library file path which is used when search for library (dso/dll's) files. More...

const FilePathList &	getLibraryFilePathList () const
	get the const library file path which is used when search for library (dso/dll's) files. More...

void	setObjectCache (ObjectCache *objectCache)
	Set the ObjectCache that is used to manage local storage of files downloaded from the internet. More...

ObjectCache *	getObjectCache ()
	Get the ObjectCache that is used to manage local storage of files downloaded from the internet. More...

const ObjectCache *	getObjectCache () const
	Get the const ObjectCache that is used to manage local storage of files downloaded from the internet. More...

void	setExpiryDelay (double expiryDelay)
	set hint to viewer code calling removeExpiredObjectsInCache to specify how long it should give before expiring objects in Registry cache,

double	getExpiryDelay () const

void	updateTimeStampOfObjectsInCacheWithExternalReferences (const osg::FrameStamp &frameStamp)
	For each object in the cache which has an reference count greater than 1 (and therefore referenced by elsewhere in the application) set the time stamp for that object in the cache to specified time. More...

void	removeExpiredObjectsInCache (const osg::FrameStamp &frameStamp)
	Removed object in the cache which have a time stamp at or before the specified expiry time. More...

void	clearObjectCache ()
	Remove all objects in the cache regardless of having external references or expiry times. More...

void	addEntryToObjectCache (const std::string &filename, osg::Object *object, double timestamp=0.0)
	Add a filename,object,timestamp triple to the Registry::ObjectCache. More...

void	removeFromObjectCache (const std::string &fileName)
	Remove Object from cache. More...

osg::Object *	getFromObjectCache (const std::string &fileName)
	Get an Object from the object cache.

osg::ref_ptr< osg::Object >	getRefFromObjectCache (const std::string &fileName)
	Get an ref_ptr<Object> from the object cache.

void	addToArchiveCache (const std::string &fileName, osgDB::Archive *archive)
	Add archive to archive cache so that future calls reference this archive. More...

void	removeFromArchiveCache (const std::string &fileName)
	Remove Archive from cache. More...

osgDB::Archive *	getFromArchiveCache (const std::string &fileName)
	Get an Archive from the archive cache. More...

osg::ref_ptr< osgDB::Archive >	getRefFromArchiveCache (const std::string &fileName)
	Get an ref_ptr<Archive> from the archive cache. More...

void	clearArchiveCache ()
	Remove all archives from the archive cache. More...

void	releaseGLObjects (osg::State *state=0)
	If State is non-zero, this function releases OpenGL objects for the specified graphics context. More...

DynamicLibrary *	getLibrary (const std::string &fileName)
	get the attached library with specified name. More...

void	setSharedStateManager (SharedStateManager *SharedStateManager)
	Set the SharedStateManager. More...

SharedStateManager *	getOrCreateSharedStateManager ()
	Get the SharedStateManager, creating one if one is not already created. More...

SharedStateManager *	getSharedStateManager ()
	Get the SharedStateManager. More...

void	addArchiveExtension (const std::string ext)
	Add an Archive extension. More...

void	registerProtocol (const std::string &protocol)
	registers a protocol

bool	isProtocolRegistered (const std::string &protocol)
	returns true, if named protocol is registered

ObjectWrapperManager *	getObjectWrapperManager ()
	Get the ObjectWrapperManager that is used to store all the ObjectWrappers. More...

DeprecatedDotOsgWrapperManager *	getDeprecatedDotOsgObjectWrapperManager ()
	Get the ObjectWrapperManager that is used to store all the ObjectWrappers. More...

const ArchiveExtensionList &	getArchiveExtensions () const

Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...

OpenThreads::Mutex *	getRefMutex () const

int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	referenceCount () const
	Return the number of pointers currently referencing this object. More...

ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...

ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...

void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...

void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...

Static Public Member Functions
static Registry *	instance (bool erase=false)

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...

static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...

static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...

static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...

Protected Types
typedef std::vector< osg::ref_ptr< DynamicLibrary > >	DynamicLibraryList

typedef std::map< std::string, std::string >	ExtensionAliasMap

typedef std::map< std::string, osg::ref_ptr< osgDB::Archive > >	ArchiveCache

typedef std::set< std::string >	RegisteredProtocolsSet

Protected Member Functions
	Registry ()
	constructor is private, as its a singleton, preventing construction other than via the instance() method and therefore ensuring only one copy is ever constructed

DynamicLibraryList::iterator	getLibraryItr (const std::string &fileName)
	get the attached library with specified name. More...

void	destruct ()

ReaderWriter::ReadResult	read (const ReadFunctor &readFunctor)

ReaderWriter::ReadResult	readImplementation (const ReadFunctor &readFunctor, Options::CacheHintOptions cacheHint)

Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Static Protected Member Functions
static std::string	trim (const std::string &str)

Protected Attributes
Options::BuildKdTreesHint	_buildKdTreesHint

osg::ref_ptr< osg::KdTreeBuilder >	_kdTreeBuilder

osg::ref_ptr< FileCache >	_fileCache

osg::ref_ptr< AuthenticationMap >	_authenticationMap

bool	_createNodeFromImage

RegisteredProtocolsSet	_registeredProtocols

osg::ref_ptr< FindFileCallback >	_findFileCallback

osg::ref_ptr< ReadFileCallback >	_readFileCallback

osg::ref_ptr< WriteFileCallback >	_writeFileCallback

osg::ref_ptr< FileLocationCallback >	_fileLocationCallback

OpenThreads::ReentrantMutex	_pluginMutex

ReaderWriterList	_rwList

ImageProcessorList	_ipList

DynamicLibraryList	_dlList

OpenThreads::ReentrantMutex	_archiveCacheMutex

ArchiveCache	_archiveCache

bool	_openingLibrary

ExtensionAliasMap	_extAliasMap

MimeTypeExtensionMap	_mimeTypeExtMap

osg::ref_ptr< Options >	_options

FilePathList	_dataFilePath

FilePathList	_libraryFilePath

osg::ref_ptr< ObjectCache >	_objectCache

double	_expiryDelay

ArchiveExtensionList	_archiveExtList

osg::ref_ptr< SharedStateManager >	_sharedStateManager

osg::ref_ptr< ObjectWrapperManager >	_objectWrapperManager

osg::ref_ptr< DeprecatedDotOsgWrapperManager >	_deprecatedDotOsgWrapperManager

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

OpenThreads::Mutex *	_refMutex

int	_refCount

void *	_observerSet

Friends
struct	ReadFunctor

struct	ReadObjectFunctor

struct	ReadImageFunctor

struct	ReadHeightFieldFunctor

struct	ReadNodeFunctor

struct	ReadArchiveFunctor

struct	ReadShaderFunctor

struct	ReadScriptFunctor

class	AvailableReaderWriterIterator

class	AvailableArchiveIterator

Detailed Description

Registry is a singleton factory which stores the reader/writers which are linked in at runtime for reading non-native file formats.

The RegisterReaderWriterProxy can be used to automatically register at runtime a reader/writer with the Registry.

Member Function Documentation

◆ addArchiveExtension()

void osgDB::Registry::addArchiveExtension ( const std::string ext )

Add an Archive extension.

◆ addEntryToObjectCache()

void osgDB::Registry::addEntryToObjectCache	(	const std::string &	filename,
		osg::Object *	object,
		double	timestamp = `0.0`
	)

Add a filename,object,timestamp triple to the Registry::ObjectCache.

◆ addFileExtensionAlias()

void osgDB::Registry::addFileExtensionAlias	(	const std::string	mapExt,
		const std::string	toExt
	)

register an .fileextension alias to mapExt toExt, the later should be the extension name of the readerwriter plugin library.

For example to map .tif files to the tiff loader, use addExtAlias("tif","tiff") which will enable .tif to be read by the libdb_tiff readerwriter plugin.

◆ addMimeTypeExtensionMapping()

void osgDB::Registry::addMimeTypeExtensionMapping	(	const std::string	fromMimeType,
		const std::string	toExt
	)

Registers a mapping of a mime-type to an extension.

A process fetching data over HTTP can use this facility to determine the proper ReaderWriter to use when there is no filename extension to rely upon.

◆ addToArchiveCache()

void osgDB::Registry::addToArchiveCache	(	const std::string &	fileName,
		osgDB::Archive *	archive
	)

Add archive to archive cache so that future calls reference this archive.

◆ clearArchiveCache()

void osgDB::Registry::clearArchiveCache ( )

Remove all archives from the archive cache.

◆ clearObjectCache()

void osgDB::Registry::clearObjectCache ( )

Remove all objects in the cache regardless of having external references or expiry times.

◆ closeAllLibraries()

void osgDB::Registry::closeAllLibraries ( )

close all libraries.

◆ closeLibrary()

bool osgDB::Registry::closeLibrary ( const std::string & fileName )

close the attached library with specified name.

◆ createLibraryNameForExtension()

std::string osgDB::Registry::createLibraryNameForExtension ( const std::string & ext )

create the platform specific library name associated with file extension.

◆ createLibraryNameForFile()

std::string osgDB::Registry::createLibraryNameForFile ( const std::string & fileName )

create the platform specific library name associated with file.

◆ createLibraryNameForNodeKit()

std::string osgDB::Registry::createLibraryNameForNodeKit ( const std::string & name )

create the platform specific library name associated with nodekit library name.

◆ getAuthenticationMap() [1/2]

AuthenticationMap* osgDB::Registry::getAuthenticationMap ( )

inline

Get the password map to be used by plugins when access files from secure locations.

◆ getAuthenticationMap() [2/2]

const AuthenticationMap* osgDB::Registry::getAuthenticationMap ( ) const

inline

Get the password map to be used by plugins when access files from secure locations.

◆ getBuildKdTreesHint()

Options::BuildKdTreesHint osgDB::Registry::getBuildKdTreesHint ( ) const

inline

Get whether the KdTrees should be built for geometry in the loader model.

◆ getDataFilePathList() [1/2]

FilePathList& osgDB::Registry::getDataFilePathList ( )

inline

get the data file path which is used when search for data files.

◆ getDataFilePathList() [2/2]

const FilePathList& osgDB::Registry::getDataFilePathList ( ) const

inline

get the const data file path which is used when search for data files.

◆ getDeprecatedDotOsgObjectWrapperManager()

DeprecatedDotOsgWrapperManager* osgDB::Registry::getDeprecatedDotOsgObjectWrapperManager ( )

inline

Get the ObjectWrapperManager that is used to store all the ObjectWrappers.

◆ getFileCache() [1/2]

FileCache* osgDB::Registry::getFileCache ( )

inline

Get the FileCache that is used to manage local storage of files downloaded from the internet.

◆ getFileCache() [2/2]

const FileCache* osgDB::Registry::getFileCache ( ) const

inline

Get the const FileCache that is used to manage local storage of files downloaded from the internet.

◆ getFileLocationCallback()

FileLocationCallback* osgDB::Registry::getFileLocationCallback ( ) const

inline

Get the callback to use inform to the DatabasePager whether a file is located on local or remote file system.

◆ getFindFileCallback() [1/2]

FindFileCallback* osgDB::Registry::getFindFileCallback ( )

inline

Get the findFile callback.

◆ getFindFileCallback() [2/2]

const FindFileCallback* osgDB::Registry::getFindFileCallback ( ) const

inline

Get the const findFile callback.

◆ getFromArchiveCache()

osgDB::Archive* osgDB::Registry::getFromArchiveCache ( const std::string & fileName )

Get an Archive from the archive cache.

◆ getImageProcessor()

ImageProcessor* osgDB::Registry::getImageProcessor ( )

get a image processor if available.

◆ getImageProcessorForExtension()

ImageProcessor* osgDB::Registry::getImageProcessorForExtension ( const std::string & ext )

get a image processor which is associated specified extension.

◆ getImageProcessorList() [1/2]

ImageProcessorList& osgDB::Registry::getImageProcessorList ( )

inline

get list of all registered ImageProcessors.

◆ getImageProcessorList() [2/2]

const ImageProcessorList& osgDB::Registry::getImageProcessorList ( ) const

inline

get const list of all registered ImageProcessors.

◆ getKdTreeBuilder()

osg::KdTreeBuilder* osgDB::Registry::getKdTreeBuilder ( )

inline

Get the KdTreeBuilder visitor that is used to build KdTree on loaded models.

◆ getLibrary()

DynamicLibrary* osgDB::Registry::getLibrary ( const std::string & fileName )

get the attached library with specified name.

◆ getLibraryFilePathList() [1/2]

FilePathList& osgDB::Registry::getLibraryFilePathList ( )

inline

get the library file path which is used when search for library (dso/dll's) files.

◆ getLibraryFilePathList() [2/2]

const FilePathList& osgDB::Registry::getLibraryFilePathList ( ) const

inline

get the const library file path which is used when search for library (dso/dll's) files.

◆ getLibraryItr()

DynamicLibraryList::iterator osgDB::Registry::getLibraryItr ( const std::string & fileName )

protected

get the attached library with specified name.

◆ getObjectCache() [1/2]

ObjectCache* osgDB::Registry::getObjectCache ( )

inline

Get the ObjectCache that is used to manage local storage of files downloaded from the internet.

◆ getObjectCache() [2/2]

const ObjectCache* osgDB::Registry::getObjectCache ( ) const

inline

Get the const ObjectCache that is used to manage local storage of files downloaded from the internet.

◆ getObjectWrapperManager()

ObjectWrapperManager* osgDB::Registry::getObjectWrapperManager ( )

inline

Get the ObjectWrapperManager that is used to store all the ObjectWrappers.

◆ getOrCreateSharedStateManager()

SharedStateManager* osgDB::Registry::getOrCreateSharedStateManager ( )

Get the SharedStateManager, creating one if one is not already created.

◆ getReaderWriterForExtension()

ReaderWriter* osgDB::Registry::getReaderWriterForExtension ( const std::string & ext )

get a reader writer which handles specified extension.

◆ getReaderWriterForMimeType()

ReaderWriter* osgDB::Registry::getReaderWriterForMimeType ( const std::string & mimeType )

gets a reader/writer that handles the extension mapped to by one of the registered mime-types.

◆ getReaderWriterList() [1/2]

ReaderWriterList& osgDB::Registry::getReaderWriterList ( )

inline

get list of all registered ReaderWriters.

◆ getReaderWriterList() [2/2]

const ReaderWriterList& osgDB::Registry::getReaderWriterList ( ) const

inline

get const list of all registered ReaderWriters.

◆ getReadFileCallback() [1/2]

ReadFileCallback* osgDB::Registry::getReadFileCallback ( )

inline

Get the readFile callback.

◆ getReadFileCallback() [2/2]

const ReadFileCallback* osgDB::Registry::getReadFileCallback ( ) const

inline

Get the const readFile callback.

◆ getRefFromArchiveCache()

osg::ref_ptr<osgDB::Archive> osgDB::Registry::getRefFromArchiveCache ( const std::string & fileName )

Get an ref_ptr<Archive> from the archive cache.

◆ getSharedStateManager()

SharedStateManager* osgDB::Registry::getSharedStateManager ( )

inline

Get the SharedStateManager.

Return 0 if no SharedStateManager has been assigned.

◆ getWriteFileCallback() [1/2]

WriteFileCallback* osgDB::Registry::getWriteFileCallback ( )

inline

Get the writeFile callback.

◆ getWriteFileCallback() [2/2]

const WriteFileCallback* osgDB::Registry::getWriteFileCallback ( ) const

inline

Get the const writeFile callback.

◆ initDataFilePathList()

void osgDB::Registry::initDataFilePathList ( )

initialize the Data FilePath by reading the OSG_FILE_PATH environmental variable.

◆ initFilePathLists()

void osgDB::Registry::initFilePathLists ( )

inline

initialize both the Data and Library FilePaths, by default called by the constructor, so it should only be required if you want to force the re-reading of environmental variables.

◆ loadLibrary()

LoadStatus osgDB::Registry::loadLibrary ( const std::string & fileName )

find the library in the OSG_LIBRARY_PATH and load it.

◆ readCommandLine()

void osgDB::Registry::readCommandLine ( osg::ArgumentParser & commandLine )

read the command line arguments.

◆ readPluginAliasConfigurationFile()

bool osgDB::Registry::readPluginAliasConfigurationFile ( const std::string & file )

Reads a file that configures extension mappings.

File is ASCII text and each line contains the parameters to the addFileExtensionAlias method. Lines can be commented out with an initial '#' character.

◆ releaseGLObjects()

void osgDB::Registry::releaseGLObjects ( osg::State * state = 0 )

If State is non-zero, this function releases OpenGL objects for the specified graphics context.

Otherwise, releases OpenGL objexts for all graphics contexts.

◆ removeExpiredObjectsInCache()

void osgDB::Registry::removeExpiredObjectsInCache ( const osg::FrameStamp & frameStamp )

Removed object in the cache which have a time stamp at or before the specified expiry time.

This would typically be called once per frame by applications which are doing database paging, and need to prune objects that are no longer required, and called after the a called after the call to updateTimeStampOfObjectsInCacheWithExternalReferences(frameStamp).

◆ removeFromArchiveCache()

void osgDB::Registry::removeFromArchiveCache ( const std::string & fileName )

Remove Archive from cache.

◆ removeFromObjectCache()

void osgDB::Registry::removeFromObjectCache ( const std::string & fileName )

Remove Object from cache.

◆ setAuthenticationMap()

void osgDB::Registry::setAuthenticationMap ( AuthenticationMap * authenticationMap )

inline

Set the password map to be used by plugins when access files from secure locations.

◆ setBuildKdTreesHint()

void osgDB::Registry::setBuildKdTreesHint ( Options::BuildKdTreesHint hint )

inline

Set whether the KdTrees should be built for geometry in the loader model.

◆ setDataFilePathList() [1/2]

void osgDB::Registry::setDataFilePathList ( const FilePathList & filepath )

inline

Set the data file path using a list of paths stored in a FilePath, which is used when search for data files.

◆ setDataFilePathList() [2/2]

void osgDB::Registry::setDataFilePathList ( const std::string & paths )

Set the data file path using a single string delimited either with ';' (Windows) or ':' (All other platforms), which is used when search for data files.

◆ setFileCache()

void osgDB::Registry::setFileCache ( FileCache * fileCache )

inline

Set the FileCache that is used to manage local storage of files downloaded from the internet.

◆ setFileLocationCallback()

void osgDB::Registry::setFileLocationCallback ( FileLocationCallback * cb )

inline

Set the callback to use inform to the DatabasePager whether a file is located on local or remote file system.

◆ setFindFileCallback()

void osgDB::Registry::setFindFileCallback ( FindFileCallback * cb )

inline

Set the Registry callback to use in place of the default findFile calls.

◆ setKdTreeBuilder()

void osgDB::Registry::setKdTreeBuilder ( osg::KdTreeBuilder * builder )

inline

Set the KdTreeBuilder visitor that is used to build KdTree on loaded models.

◆ setLibraryFilePathList() [1/2]

void osgDB::Registry::setLibraryFilePathList ( const FilePathList & filepath )

inline

Set the library file path using a list of paths stored in a FilePath, which is used when search for data files.

◆ setLibraryFilePathList() [2/2]

void osgDB::Registry::setLibraryFilePathList ( const std::string & paths )

Set the library file path using a single string delimited either with ';' (Windows) or ':' (All other platforms), which is used when search for data files.

◆ setObjectCache()

void osgDB::Registry::setObjectCache ( ObjectCache * objectCache )

inline

Set the ObjectCache that is used to manage local storage of files downloaded from the internet.

◆ setReadFileCallback()

void osgDB::Registry::setReadFileCallback ( ReadFileCallback * cb )

inline

Set the Registry callback to use in place of the default readFile calls.

◆ setSharedStateManager()

void osgDB::Registry::setSharedStateManager ( SharedStateManager * SharedStateManager )

inline

Set the SharedStateManager.

◆ setWriteFileCallback()

void osgDB::Registry::setWriteFileCallback ( WriteFileCallback * cb )

inline

Set the Registry callback to use in place of the default writeFile calls.

◆ updateTimeStampOfObjectsInCacheWithExternalReferences()

void osgDB::Registry::updateTimeStampOfObjectsInCacheWithExternalReferences ( const osg::FrameStamp & frameStamp )

For each object in the cache which has an reference count greater than 1 (and therefore referenced by elsewhere in the application) set the time stamp for that object in the cache to specified time.

This would typically be called once per frame by applications which are doing database paging, and need to prune objects that are no longer required. The time used is taken from the FrameStamp::getReferenceTime().

The documentation for this class was generated from the following file:

/home/karlu20/private/installs/OpenSceneGraph/include/osgDB/Registry

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Function Documentation

◆ addArchiveExtension()

◆ addEntryToObjectCache()

◆ addFileExtensionAlias()

◆ addMimeTypeExtensionMapping()

◆ addToArchiveCache()

◆ clearArchiveCache()

◆ clearObjectCache()

◆ closeAllLibraries()

◆ closeLibrary()

◆ createLibraryNameForExtension()

◆ createLibraryNameForFile()

◆ createLibraryNameForNodeKit()

◆ getAuthenticationMap() [1/2]

◆ getAuthenticationMap() [2/2]

◆ getBuildKdTreesHint()

◆ getDataFilePathList() [1/2]

◆ getDataFilePathList() [2/2]

◆ getDeprecatedDotOsgObjectWrapperManager()

◆ getFileCache() [1/2]

◆ getFileCache() [2/2]

◆ getFileLocationCallback()

◆ getFindFileCallback() [1/2]

◆ getFindFileCallback() [2/2]

◆ getFromArchiveCache()

◆ getImageProcessor()

◆ getImageProcessorForExtension()

◆ getImageProcessorList() [1/2]

◆ getImageProcessorList() [2/2]

◆ getKdTreeBuilder()

◆ getLibrary()

◆ getLibraryFilePathList() [1/2]

◆ getLibraryFilePathList() [2/2]

◆ getLibraryItr()

◆ getObjectCache() [1/2]

◆ getObjectCache() [2/2]

◆ getObjectWrapperManager()

◆ getOrCreateSharedStateManager()

◆ getReaderWriterForExtension()

◆ getReaderWriterForMimeType()

◆ getReaderWriterList() [1/2]

◆ getReaderWriterList() [2/2]

◆ getReadFileCallback() [1/2]

◆ getReadFileCallback() [2/2]

◆ getRefFromArchiveCache()

◆ getSharedStateManager()

◆ getWriteFileCallback() [1/2]

◆ getWriteFileCallback() [2/2]

◆ initDataFilePathList()

◆ initFilePathLists()

◆ loadLibrary()

◆ readCommandLine()

◆ readPluginAliasConfigurationFile()

◆ releaseGLObjects()

◆ removeExpiredObjectsInCache()

◆ removeFromArchiveCache()

◆ removeFromObjectCache()

◆ setAuthenticationMap()

◆ setBuildKdTreesHint()

◆ setDataFilePathList() [1/2]

◆ setDataFilePathList() [2/2]

◆ setFileCache()

◆ setFileLocationCallback()

◆ setFindFileCallback()

◆ setKdTreeBuilder()

◆ setLibraryFilePathList() [1/2]

◆ setLibraryFilePathList() [2/2]

◆ setObjectCache()

◆ setReadFileCallback()

◆ setSharedStateManager()
