This field class checks whether the given node is of the right type (ContourPolyline2D or NurbsCurve2D). More...

#include <H3D/Contour2D.h>

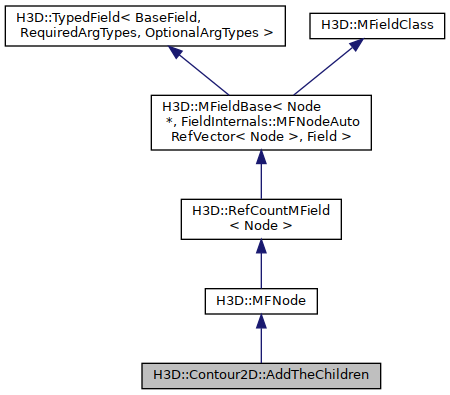

Inheritance diagram for H3D::Contour2D::AddTheChildren:

Public Member Functions
virtual void	onAdd (Node *n)
	This function will be called when values of RefCountMField changes. More...

Public Member Functions inherited from H3D::MFNode
const_iterator	begin (int id=0)
	Returns a const_iterator pointing to the beginning of the vector.

const_iterator	end (int id=0)
	Returns a const_iterator pointing to the end of the vector.

const_reverse_iterator	rbegin (int id=0)
	Returns a const_reverse_iterator pointing to the beginning of the vector.

const_reverse_iterator	rend (int id=0)
	Returns a const_reverse_iterator pointing to the end of the vector.

virtual Node *	operator[] (size_type i)
	Returns the n'th element.

virtual Node *	front (int id=0)
	Returns the first element.

virtual Node *	back (int id=0)
	Returns the last element.

virtual Node *	getValueByIndex (size_type i, int id=0)
	Get the value of the MField.

	MFNode ()
	Default constructor. Creates an empty MFNode.

	MFNode (size_type sz)
	Creates an MFNode with space reserved for size nodes.

virtual const NodeVector &	getValue (int id=0)
	Get the value of the MField.

virtual string	getTypeName ()
	Returns a string name for this field type i.e. MFNode.

virtual X3DTypes::X3DType	getX3DType ()
	Returns the X3DType of the field.

Public Member Functions inherited from H3D::RefCountMField< Node >
	RefCountMField ()
	Default constructor. Creates an empty RefCountMField.

	RefCountMField (typename FieldInternals::MFNodeAutoRefVector< Node >::size_type sz)
	Creates an RefCountMField with space reserved for size nodes.

void	setValue (typename FieldInternals::MFNodeAutoRefVector< Node >::size_type i, const typename FieldInternals::MFNodeAutoRefVector< Node >::value_type &v, int id=0)
	Set the value of an element in the field. More...

virtual void	setValue (const AutoRefVector< Node > &v, int id=0)
	Set the value of the field. More...

virtual void	setValue (const vector< Node * > &v, int id=0)
	Set the value of the field. More...

virtual void	swap (vector< Node * > &v, int id=0)
	Swaps the contents of two vectors. More...

virtual void	erase (Node *a, int id=0)
	Erase the first element equal to a. More...

virtual void	erase (unsigned int pos, int id=0)
	Erase the element at the specified index. More...

virtual void	insert (unsigned int pos, Node *a, int id=0)
	Insert an element before the index given by pos. More...

Public Member Functions inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field >
const_iterator	begin (int id=0)
	Returns a const_iterator pointing to the beginning of the vector.

const_iterator	end (int id=0)
	Returns a const_iterator pointing to the end of the vector.

const_reverse_iterator	rbegin (int id=0)
	Returns a const_reverse_iterator pointing to the beginning of the reversed vector. More...

const_reverse_iterator	rend (int id=0)
	Returns a const_reverse_iterator pointing to the end of the reversed vector. More...

unsigned int	size ()
	Returns the size of the vector.

size_type	max_size ()
	Returns the largest possible size of the vector.

size_type	capacity ()
	Number of elements for which memory has been allocated. More...

void	reserve (size_type s)
	A request for allocation of additional memory. More...

void	resize (size_type n, Node * t=Node *(), int id=0)
	Inserts or erases elements at the end such that the size becomes n.

bool	empty ()
	true if the vector's size is 0.

const_reference	operator[] (size_type n)
	Returns the n'th element.

const_reference	front (int id=0)
	Returns the first element.

const_reference	back (int id=0)
	Returns the last element.

void	swap (FieldInternals::MFNodeAutoRefVector< Node > &x, int id=0)
	Swaps the contents of two vectors.

void	push_back (const Node * &x, int id=0)
	Inserts a new element at the end.

void	pop_back (int id=0)
	Removed the last element.

void	clear (int id=0)
	Erases all of the elements.

virtual int	setValueFromVoidPtr (const void *data, unsigned int nr_elements, unsigned int len, int id=0)
	Set the value of the field given a pointer to where the value of the field is. More...

virtual int	getValueAsVoidPtr (void *data, unsigned int &nr_elements, unsigned int len, int id=0)
	Get the value of the data copied into a memory buffer. More...

virtual unsigned int	valueTypeSize ()
	Returns the size in bytes of the value type the mfield encapsulates.

	MFieldBase ()
	Default constructor. Creates an empty MField.

	MFieldBase (size_type sz)
	Creates a MField with space reserved for n elements.

Public Member Functions inherited from H3D::MFieldClass
virtual	~MFieldClass ()
	Virtual destructor.

virtual int	setValueFromVoidPtr (void *data, unsigned int nr_elements, unsigned int size, int id=0)

Additional Inherited Members
Public Types inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field >
typedef FieldInternals::MFNodeAutoRefVector< Node >	vector_type
	The type of the value member.

typedef FieldInternals::MFNodeAutoRefVector< Node >	vector_return_type
	The return type of functions that return the value of the field.

typedef VectorClass::value_type	value_type
	The type of the values stored in the vector.

typedef VectorClass::pointer	pointer
	Pointer to Type.

typedef VectorClass::const_reference	const_reference
	Const reference to Type.

typedef VectorClass::size_type	size_type
	An unsigned integral type.

typedef VectorClass::difference_type	difference_type
	A signed integral type.

typedef VectorClass::const_iterator	const_iterator
	Const iterator used to iterate through a vector.

typedef VectorClass::const_reverse_iterator	const_reverse_iterator
	Const iterator used to iterate backwards through a vector.

Static Public Member Functions inherited from H3D::MFNode
static string	classTypeName ()
	Returns a string name for this field type i.e. MFNode.

Static Public Member Functions inherited from H3D::RefCountMField< Node >
static string	classTypeName ()
	Returns a string name for this field type i.e. SFNode.

Static Public Member Functions inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field >
static string	classTypeName ()
	Returns a string name for this field type e.g. MFInt32.

Protected Member Functions inherited from H3D::RefCountMField< Node >
virtual void	update ()
	Make the field up to date given that an event has occured.

virtual void	onRemove (Node *n)
	This function will be called when values of RefCountMField changes. More...

Protected Member Functions inherited from H3D::TypedField< BaseField, RequiredArgTypes, OptionalArgTypes >
void	checkFieldType (Field *f, int index)
	Function for checking that a field is of a correct type given type specification according to the TypedField template arguments. More...

void	checkTemplateArguments ()
	Function for checking that a field given TypedField type specification is valid. More...

Protected Attributes inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field >
FieldInternals::MFNodeAutoRefVector< Node >	value
	The encapsulated vector.
