RefCountMField is almost like any MField but it encapsulates a vector of RefCoundtedClass pointers. More...

#include <H3D/RefCountMField.h>

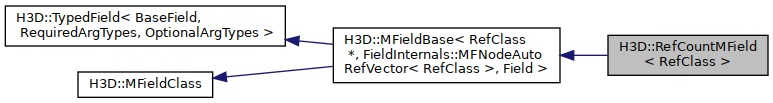

Inheritance diagram for H3D::RefCountMField< RefClass >:

Classes
class	InvalidIndex
	Thrown if the index given to getValueByIndex() is outside the boundaries. More...

Public Member Functions
	RefCountMField ()
	Default constructor. Creates an empty RefCountMField.

	RefCountMField (typename FieldInternals::MFNodeAutoRefVector< RefClass >::size_type sz)
	Creates an RefCountMField with space reserved for size nodes.

virtual const NodeVector &	getValue (int id=0)
	Get the value of the MField.

virtual RefClass *	getValueByIndex (typename BaseFieldType::size_type i, int id=0)
	Get the value of the MField.

void	setValue (typename FieldInternals::MFNodeAutoRefVector< RefClass >::size_type i, const typename FieldInternals::MFNodeAutoRefVector< RefClass >::value_type &v, int id=0)
	Set the value of an element in the field. More...

virtual void	setValue (const AutoRefVector< RefClass > &v, int id=0)
	Set the value of the field. More...

virtual void	setValue (const vector< RefClass * > &v, int id=0)
	Set the value of the field. More...

virtual void	swap (vector< RefClass * > &v, int id=0)
	Swaps the contents of two vectors. More...

virtual void	erase (RefClass *a, int id=0)
	Erase the first element equal to a. More...

virtual void	erase (unsigned int pos, int id=0)
	Erase the element at the specified index. More...

virtual void	insert (unsigned int pos, RefClass *a, int id=0)
	Insert an element before the index given by pos. More...

virtual string	getTypeName ()
	Returns a string name for this field type i.e. SFNode.

Public Member Functions inherited from H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >
const_iterator	begin (int id=0)
	Returns a const_iterator pointing to the beginning of the vector.

const_iterator	end (int id=0)
	Returns a const_iterator pointing to the end of the vector.

const_reverse_iterator	rbegin (int id=0)
	Returns a const_reverse_iterator pointing to the beginning of the reversed vector. More...

const_reverse_iterator	rend (int id=0)
	Returns a const_reverse_iterator pointing to the end of the reversed vector. More...

unsigned int	size ()
	Returns the size of the vector.

size_type	max_size ()
	Returns the largest possible size of the vector.

size_type	capacity ()
	Number of elements for which memory has been allocated. More...

void	reserve (size_type s)
	A request for allocation of additional memory. More...

void	resize (size_type n, RefClass * t=RefClass *(), int id=0)
	Inserts or erases elements at the end such that the size becomes n.

bool	empty ()
	true if the vector's size is 0.

const_reference	operator[] (size_type n)
	Returns the n'th element.

const_reference	front (int id=0)
	Returns the first element.

const_reference	back (int id=0)
	Returns the last element.

void	swap (FieldInternals::MFNodeAutoRefVector< RefClass > &x, int id=0)
	Swaps the contents of two vectors.

void	push_back (const RefClass * &x, int id=0)
	Inserts a new element at the end.

void	pop_back (int id=0)
	Removed the last element.

void	clear (int id=0)
	Erases all of the elements.

virtual int	setValueFromVoidPtr (const void *data, unsigned int nr_elements, unsigned int len, int id=0)
	Set the value of the field given a pointer to where the value of the field is. More...

virtual int	getValueAsVoidPtr (void *data, unsigned int &nr_elements, unsigned int len, int id=0)
	Get the value of the data copied into a memory buffer. More...

virtual unsigned int	valueTypeSize ()
	Returns the size in bytes of the value type the mfield encapsulates.

	MFieldBase ()
	Default constructor. Creates an empty MField.

	MFieldBase (size_type sz)
	Creates a MField with space reserved for n elements.

Public Member Functions inherited from H3D::MFieldClass
virtual	~MFieldClass ()
	Virtual destructor.

virtual int	setValueFromVoidPtr (void *data, unsigned int nr_elements, unsigned int size, int id=0)

Static Public Member Functions
static string	classTypeName ()
	Returns a string name for this field type i.e. SFNode.

Static Public Member Functions inherited from H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >
static string	classTypeName ()
	Returns a string name for this field type e.g. MFInt32.

Protected Member Functions
virtual void	update ()
	Make the field up to date given that an event has occured.

virtual void	onAdd (RefClass *n)
	This function will be called when values of RefCountMField changes. More...

virtual void	onRemove (RefClass *n)
	This function will be called when values of RefCountMField changes. More...

Protected Member Functions inherited from H3D::TypedField< BaseField, RequiredArgTypes, OptionalArgTypes >
void	checkFieldType (Field *f, int index)
	Function for checking that a field is of a correct type given type specification according to the TypedField template arguments. More...

void	checkTemplateArguments ()
	Function for checking that a field given TypedField type specification is valid. More...

Additional Inherited Members
Public Types inherited from H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >
typedef FieldInternals::MFNodeAutoRefVector< RefClass >	vector_type
	The type of the value member.

typedef FieldInternals::MFNodeAutoRefVector< RefClass >	vector_return_type
	The return type of functions that return the value of the field.

typedef VectorClass::value_type	value_type
	The type of the values stored in the vector.

typedef VectorClass::pointer	pointer
	Pointer to Type.

typedef VectorClass::const_reference	const_reference
	Const reference to Type.

typedef VectorClass::size_type	size_type
	An unsigned integral type.

typedef VectorClass::difference_type	difference_type
	A signed integral type.

typedef VectorClass::const_iterator	const_iterator
	Const iterator used to iterate through a vector.

typedef VectorClass::const_reverse_iterator	const_reverse_iterator
	Const iterator used to iterate backwards through a vector.

Protected Attributes inherited from H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >
FieldInternals::MFNodeAutoRefVector< RefClass >	value
	The encapsulated vector.

Detailed Description

template<class RefClass>
class H3D::RefCountMField< RefClass >

RefCountMField is almost like any MField but it encapsulates a vector of RefCoundtedClass pointers.

Reference counting on the encapsulated RefCountedClass instances are upheld when changes to the values are made.

Member Function Documentation

◆ erase() [1/2]

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::erase	(	RefClass *	a,
		int	id = `0`
	)

inlinevirtual

Erase the first element equal to a.

Parameters

a	Value to erase.
id	Id of the node calling this function. Used to check access type.

References H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >::value.

◆ erase() [2/2]

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::erase	(	unsigned int	pos,
		int	id = `0`
	)

inlinevirtual

Erase the element at the specified index.

Parameters

pos	Index of the element to remove.
id	Id of the node calling this function. Used to check access type.

References H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >::value.

◆ insert()

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::insert	(	unsigned int	pos,
		RefClass *	a,
		int	id = `0`
	)

inlinevirtual

Insert an element before the index given by pos.

Parameters

pos	Position before which to insert.
a	Value to insert.
id	Id of the node calling this function. Used to check access type.

References H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >::value.

◆ onAdd()

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::onAdd ( RefClass * n )

inlineprotectedvirtual

This function will be called when values of RefCountMField changes.

As soon as a Node is added onAdd will be called on the added value.

Parameters

n	The added value.

Reimplemented in H3D::X3DGroupingNode::RemoveChildren, H3D::X3DGroupingNode::AddChildren, H3D::NurbsTrimmedSurface::CheckContour, H3D::NurbsTrimmedSurface::AddContour, H3D::TypedMFNodeObject< Type >, H3D::TypedMFNode< NodeType >, H3D::TypedMFNode< H3DOptionNode >, H3D::TypedMFNode< H3DHapticsRendererNode >, H3D::TypedMFNode< X3DChildNode >, H3D::LayeredRenderer::MFHapticsRendererNode, H3D::Contour2D::CheckTheChildren, and H3D::Contour2D::AddTheChildren.

◆ onRemove()

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::onRemove ( RefClass * n )

inlineprotectedvirtual

This function will be called when values of RefCountMField changes.

As soon as a Node is removed onRemove will be called on the removed value.

Parameters

n	The removed value.

Reimplemented in H3D::NurbsTrimmedSurface::CheckContour, H3D::NurbsTrimmedSurface::RemoveContour, H3D::LayeredRenderer::MFHapticsRendererNode, H3D::Contour2D::CheckTheChildren, and H3D::Contour2D::RemoveTheChildren.

◆ setValue() [1/3]

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::setValue	(	const AutoRefVector< RefClass > &	v,
		int	id = `0`
	)

inlinevirtual

Set the value of the field.

Parameters

v	The new value.
id	Id of the node calling this function. Used to check access type.

References H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >::value.

◆ setValue() [2/3]

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::setValue	(	const vector< RefClass * > &	v,
		int	id = `0`
	)

inlinevirtual

Set the value of the field.

Parameters

v	The new value.
id	Id of the node calling this function. Used to check access type.

References H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >::value.

◆ setValue() [3/3]

template<class RefClass >

void H3D::RefCountMField< RefClass >::setValue	(	typename FieldInternals::MFNodeAutoRefVector< RefClass >::size_type	i,
		const typename FieldInternals::MFNodeAutoRefVector< RefClass >::value_type &	v,
		int	id = `0`
	)

inline

Set the value of an element in the field.

Parameters

i	Index of the element.
v	The new value.
id	Id of the node calling this function. Used to check access type.

References H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >::value.

◆ swap()

template<class RefClass >

virtual void H3D::RefCountMField< RefClass >::swap	(	vector< RefClass * > &	v,
		int	id = `0`
	)

inlinevirtual

Swaps the contents of two vectors.

Parameters

v	vector to swap with.
id	Id of the node calling this function. Used to check access type.

References H3D::MFieldBase< RefClass *, FieldInternals::MFNodeAutoRefVector< RefClass >, Field >::value.
