Template to make sure that the Nodes that are set in a MFNode are of a specified type. More...
#include <H3D/MFNode.h>

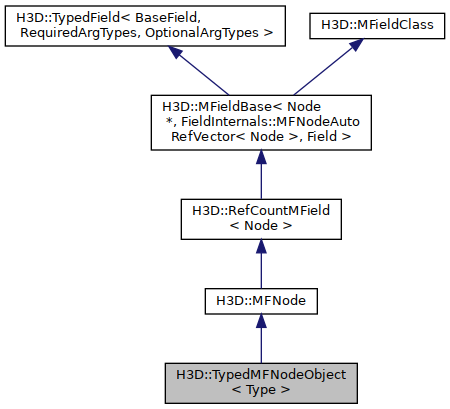

Inheritance diagram for H3D::TypedMFNodeObject< Type >:
Public Member Functions | |
| virtual Type * | getCastedValueByIndex (typename MFNode::size_type i, int id=0) |
| Get the value casted to the Type. | |
 Public Member Functions inherited from H3D::MFNode | |
| const_iterator | begin (int id=0) |
| Returns a const_iterator pointing to the beginning of the vector. | |
| const_iterator | end (int id=0) |
| Returns a const_iterator pointing to the end of the vector. | |
| const_reverse_iterator | rbegin (int id=0) |
| Returns a const_reverse_iterator pointing to the beginning of the vector. | |
| const_reverse_iterator | rend (int id=0) |
| Returns a const_reverse_iterator pointing to the end of the vector. | |
| virtual Node * | operator[] (size_type i) |
| Returns the n'th element. | |
| virtual Node * | front (int id=0) |
| Returns the first element. | |
| virtual Node * | back (int id=0) |
| Returns the last element. | |
| virtual Node * | getValueByIndex (size_type i, int id=0) |
| Get the value of the MField. | |
| MFNode () | |
| Default constructor. Creates an empty MFNode. | |
| MFNode (size_type sz) | |
| Creates an MFNode with space reserved for size nodes. | |
| virtual const NodeVector & | getValue (int id=0) |
| Get the value of the MField. | |
| virtual string | getTypeName () |
| Returns a string name for this field type i.e. MFNode. | |
| virtual X3DTypes::X3DType | getX3DType () |
| Returns the X3DType of the field. | |
| Public Member Functions inherited from H3D::RefCountMField< Node > | |
| RefCountMField () | |
| Default constructor. Creates an empty RefCountMField. | |
| RefCountMField (typename FieldInternals::MFNodeAutoRefVector< Node >::size_type sz) | |
| Creates an RefCountMField with space reserved for size nodes. | |
| void | setValue (typename FieldInternals::MFNodeAutoRefVector< Node >::size_type i, const typename FieldInternals::MFNodeAutoRefVector< Node >::value_type &v, int id=0) |
| Set the value of an element in the field. More... | |
| virtual void | setValue (const AutoRefVector< Node > &v, int id=0) |
| Set the value of the field. More... | |
| virtual void | setValue (const vector< Node * > &v, int id=0) |
| Set the value of the field. More... | |
| virtual void | swap (vector< Node * > &v, int id=0) |
| Swaps the contents of two vectors. More... | |
| virtual void | erase (Node *a, int id=0) |
| Erase the first element equal to a. More... | |
| virtual void | erase (unsigned int pos, int id=0) |
| Erase the element at the specified index. More... | |
| virtual void | insert (unsigned int pos, Node *a, int id=0) |
| Insert an element before the index given by pos. More... | |
| Public Member Functions inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field > | |
| const_iterator | begin (int id=0) |
| Returns a const_iterator pointing to the beginning of the vector. | |
| const_iterator | end (int id=0) |
| Returns a const_iterator pointing to the end of the vector. | |
| const_reverse_iterator | rbegin (int id=0) |
| Returns a const_reverse_iterator pointing to the beginning of the reversed vector. More... | |
| const_reverse_iterator | rend (int id=0) |
| Returns a const_reverse_iterator pointing to the end of the reversed vector. More... | |
| unsigned int | size () |
| Returns the size of the vector. | |
| size_type | max_size () |
| Returns the largest possible size of the vector. | |
| size_type | capacity () |
| Number of elements for which memory has been allocated. More... | |
| void | reserve (size_type s) |
| A request for allocation of additional memory. More... | |
| void | resize (size_type n, Node * t=Node *(), int id=0) |
| Inserts or erases elements at the end such that the size becomes n. | |
| bool | empty () |
| true if the vector's size is 0. | |
| const_reference | operator[] (size_type n) |
| Returns the n'th element. | |
| const_reference | front (int id=0) |
| Returns the first element. | |
| const_reference | back (int id=0) |
| Returns the last element. | |
| void | swap (FieldInternals::MFNodeAutoRefVector< Node > &x, int id=0) |
| Swaps the contents of two vectors. | |
| void | push_back (const Node * &x, int id=0) |
| Inserts a new element at the end. | |
| void | pop_back (int id=0) |
| Removed the last element. | |
| void | clear (int id=0) |
| Erases all of the elements. | |
| virtual int | setValueFromVoidPtr (const void *data, unsigned int nr_elements, unsigned int len, int id=0) |
| Set the value of the field given a pointer to where the value of the field is. More... | |
| virtual int | getValueAsVoidPtr (void *data, unsigned int &nr_elements, unsigned int len, int id=0) |
| Get the value of the data copied into a memory buffer. More... | |
| virtual unsigned int | valueTypeSize () |
| Returns the size in bytes of the value type the mfield encapsulates. | |
| MFieldBase () | |
| Default constructor. Creates an empty MField. | |
| MFieldBase (size_type sz) | |
| Creates a MField with space reserved for n elements. | |
| Public Member Functions inherited from H3D::MFieldClass | |
| virtual | ~MFieldClass () |
| Virtual destructor. | |
| virtual int | setValueFromVoidPtr (void *data, unsigned int nr_elements, unsigned int size, int id=0) |
Protected Member Functions | |
| void | onAdd (Node *n) |
| We check that the type of the Node is of the correct type. | |
| Protected Member Functions inherited from H3D::RefCountMField< Node > | |
| virtual void | update () |
| Make the field up to date given that an event has occured. | |
| virtual void | onRemove (Node *n) |
| This function will be called when values of RefCountMField changes. More... | |
| Protected Member Functions inherited from H3D::TypedField< BaseField, RequiredArgTypes, OptionalArgTypes > | |
| void | checkFieldType (Field *f, int index) |
| Function for checking that a field is of a correct type given type specification according to the TypedField template arguments. More... | |
| void | checkTemplateArguments () |
| Function for checking that a field given TypedField type specification is valid. More... | |
Additional Inherited Members | |
| Public Types inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field > | |
| typedef FieldInternals::MFNodeAutoRefVector< Node > | vector_type |
| The type of the value member. | |
| typedef FieldInternals::MFNodeAutoRefVector< Node > | vector_return_type |
| The return type of functions that return the value of the field. | |
| typedef VectorClass::value_type | value_type |
| The type of the values stored in the vector. | |
| typedef VectorClass::pointer | pointer |
| Pointer to Type. | |
| typedef VectorClass::const_reference | const_reference |
| Const reference to Type. | |
| typedef VectorClass::size_type | size_type |
| An unsigned integral type. | |
| typedef VectorClass::difference_type | difference_type |
| A signed integral type. | |
| typedef VectorClass::const_iterator | const_iterator |
| Const iterator used to iterate through a vector. | |
| typedef VectorClass::const_reverse_iterator | const_reverse_iterator |
| Const iterator used to iterate backwards through a vector. | |
| Static Public Member Functions inherited from H3D::MFNode | |
| static string | classTypeName () |
| Returns a string name for this field type i.e. MFNode. | |
| Static Public Member Functions inherited from H3D::RefCountMField< Node > | |
| static string | classTypeName () |
| Returns a string name for this field type i.e. SFNode. | |
| Static Public Member Functions inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field > | |
| static string | classTypeName () |
| Returns a string name for this field type e.g. MFInt32. | |
| Protected Attributes inherited from H3D::MFieldBase< Node *, FieldInternals::MFNodeAutoRefVector< Node >, Field > | |
| FieldInternals::MFNodeAutoRefVector< Node > | value |
| The encapsulated vector. | |
Detailed Description
template<class Type>
class H3D::TypedMFNodeObject< Type >
Template to make sure that the Nodes that are set in a MFNode are of a specified type.
This is the same as TypedMFNode but with the difference that the type does not have to be a node type but can be an abstract base class such as X3DMetadataObject. This makes it impossible however to override the getValueByIndex() function to return the correct type. Hence the getCastedValueByIndex() function must be used. You only have to use this template if you want to use one of the interface base classes such as X3DMetadataObject and H3DDisplayListObject as the Type parameter. In all other cases the TypedMFNode template is recommended.
- Parameters
-
Type The expected type.
The documentation for this class was generated from the following file:
