The ExplosionEmitter node is an emitter that generates all the available particles from a specific point in space at the initial time. More...
#include <H3D/ExplosionEmitter.h>

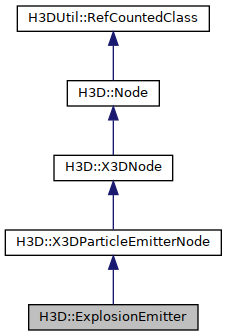

Inheritance diagram for H3D::ExplosionEmitter:
Public Member Functions | |
| ExplosionEmitter (Inst< SFNode > _metadata=0, Inst< SFFloat > _speed=0, Inst< SFFloat > _variation=0, Inst< SFFloat > _mass=0, Inst< SFFloat > _surfaceArea=0, Inst< SFVec3f > _position=0) | |
| Constructor. | |
 Public Member Functions inherited from H3D::X3DParticleEmitterNode | |
| X3DParticleEmitterNode (Inst< SFNode > _metadata=0, Inst< SFFloat > _speed=0, Inst< SFFloat > _variation=0, Inst< SFFloat > _mass=0, Inst< SFFloat > _surfaceArea=0, Inst< SFFloat > _angularSpeed=0) | |
| Constructor. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | render () |
| the render() function is used for the depth-first rendering traversal of the scene-graph. More... | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
Public Attributes | |
| H3DUniquePtr< SFVec3f > | position |
| The position from which the particles are emitted. More... | |
| Public Attributes inherited from H3D::X3DParticleEmitterNode | |
| H3DUniquePtr< SFFloat > | speed |
| The speed field specifies an initial linear speed that will be imparted to all particles. More... | |
| H3DUniquePtr< SFFloat > | variation |
| The variation field specifies a multiplier for the randomness that is used to control the range of possible output values. More... | |
| H3DUniquePtr< SFFloat > | mass |
| The mass field specifies the basic mass of each particle in kilograms. More... | |
| H3DUniquePtr< SFFloat > | surfaceArea |
| The surfaceArea field specifies the surface area of the particle in metres-squared. More... | |
| H3DUniquePtr< SFFloat > | angularSpeed |
| The angularSpeed field specifies an initial rotational speed that will be imparted to all particles. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DParticleEmitterNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
Detailed Description
The ExplosionEmitter node is an emitter that generates all the available particles from a specific point in space at the initial time.
Particles are emitted from the single point specified by the position field in all directions at the speed specified by the speed field.
Examples:
Member Data Documentation
◆ position
| H3DUniquePtr< SFVec3f > H3D::ExplosionEmitter::position |
The position from which the particles are emitted.
Access type: inputOutput
Default value: 0 0 0
Referenced by ExplosionEmitter().
The documentation for this class was generated from the following files:
