The GravityPhysicsModel node specifies a physics model that applies a constant gravity value to the particles. More...
#include <H3D/GravityPhysicsModel.h>

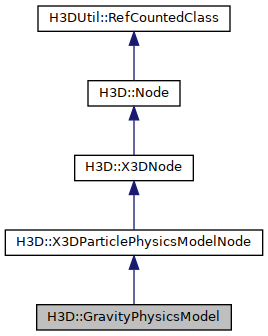

Inheritance diagram for H3D::GravityPhysicsModel:
Public Member Functions | |
| GravityPhysicsModel (Inst< SFNode > _metadata=0, Inst< SFBool > _enabled=0, Inst< SFVec3f > _gravity=0) | |
| Constructor. | |
 Public Member Functions inherited from H3D::X3DParticlePhysicsModelNode | |
| X3DParticlePhysicsModelNode (Inst< SFNode > _metadata=0, Inst< SFBool > _enabled=0) | |
| Constructor. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | render () |
| the render() function is used for the depth-first rendering traversal of the scene-graph. More... | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
Public Attributes | |
| H3DUniquePtr< SFVec3f > | gravity |
| The gravity field is used to indicate the strength and direction of the force of gravity that should be applied. More... | |
| Public Attributes inherited from H3D::X3DParticlePhysicsModelNode | |
| H3DUniquePtr< SFBool > | enabled |
| The enabled field specifies whether this physics model is currently being applied to the particles. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DParticlePhysicsModelNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
Detailed Description
The GravityPhysicsModel node specifies a physics model that applies a constant gravity value to the particles.
Gravity may act in any given direction vector at any strength.
The gravity field is used to indicate the strength and direction of the force of gravity that should be applied. Force is specified in metres per seconds-squared (m/s2). If the particles are defined to have zero mass by the emitter, the GravityPhysicsModel node has no effect.
Examples:
Member Data Documentation
◆ gravity
| H3DUniquePtr< SFVec3f > H3D::GravityPhysicsModel::gravity |
The gravity field is used to indicate the strength and direction of the force of gravity that should be applied.
Gravity is specified in metres per seconds-squared (m/s2).
Access type: inputOutput
Default value: Vec3f( 0, -9.8, 0 )
Referenced by GravityPhysicsModel().
