The IntegerSequencer node generates sequential discrete SFInt32 events in response to each set_fraction, next, or previous event. More...
#include <H3D/IntegerSequencer.h>

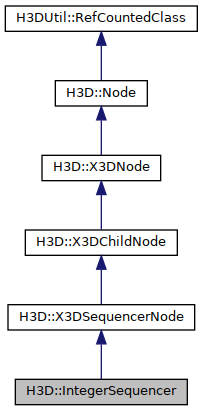

Inheritance diagram for H3D::IntegerSequencer:
Public Member Functions | |
| IntegerSequencer (Inst< SFNode > _metadata=0, Inst< SFBool > _next=0, Inst< SFBool > _previous=0, Inst< SFFloat > _set_fraction=0, Inst< MFFloat > _key=0, Inst< KeyValues< MFInt32 > > _keyValue=0, Inst< ValueChanged< SFInt32, MFInt32, IntegerSequencer > > _value_changed=0) | |
| Constructor. | |
 Public Member Functions inherited from H3D::X3DSequencerNode | |
| X3DSequencerNode (Inst< SFNode > _metadata=0, Inst< SFBool > _next=0, Inst< SFBool > _previous=0, Inst< SFFloat > _set_fraction=0, Inst< MFFloat > _key=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DChildNode | |
| X3DChildNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | render () |
| the render() function is used for the depth-first rendering traversal of the scene-graph. More... | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
Public Attributes | |
| H3DUniquePtr< KeyValues< MFInt32 > > | keyValue |
| The keyValue field is made up of a list of integer values. More... | |
| H3DUniquePtr< ValueChanged< SFInt32, MFInt32, IntegerSequencer > > | value_changed |
| Each value in the keyValue field corresponds in order to the parameter value in the key field. More... | |
| Public Attributes inherited from H3D::X3DSequencerNode | |
| H3DUniquePtr< SFBool > | next |
| Receipt of next event triggers next output value in keyValue array, next goes to initial element after last. More... | |
| H3DUniquePtr< SFBool > | previous |
| Receipt of previous event triggers previous output value in keyValue array, previous goes to last element after first. More... | |
| H3DUniquePtr< SFFloat > | set_fraction |
| The set_fraction inputOnly field receives an SFFloat event and causes the sequencing function to evaluate, resulting in a value_changed output event with the same timestamp as the set_fraction event. More... | |
| H3DUniquePtr< MFFloat > | key |
| Each value in the keyValue field corresponds in order to the parameter value in the key field. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DSequencerNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
Detailed Description
The IntegerSequencer node generates sequential discrete SFInt32 events in response to each set_fraction, next, or previous event.
Examples:
- Switch.x3d ( Source )
- Internal routes:
Member Data Documentation
◆ keyValue
The keyValue field is made up of a list of integer values.
Access type: inputOutput
Default value: -
◆ value_changed
| H3DUniquePtr< ValueChanged < SFInt32, MFInt32, IntegerSequencer > > H3D::IntegerSequencer::value_changed |
Each value in the keyValue field corresponds in order to the parameter value in the key field.
The keys shall be monotonically non-decreasing, otherwise the results are undefined.
Access type: outputOnly
Default value: -
Referenced by IntegerSequencer().
The documentation for this class was generated from the following files:
