A fake haptics device where the position and orientation is controlled via a SpaceWare device such as the SpaceMouse or SpaceTraveller. More...
#include <H3D/SpaceWareHapticsDevice.h>

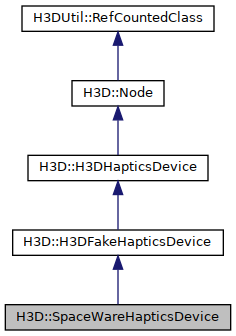

Inheritance diagram for H3D::SpaceWareHapticsDevice:
Classes | |
| class | SetMainButton |
| SetMainButton is set to true if any of the buttons on the SpaceWare device is pressed. More... | |
Public Member Functions | |
| SpaceWareHapticsDevice (Inst< SFVec3f > _devicePosition=0, Inst< SFRotation > _deviceOrientation=0, Inst< TrackerPosition > _trackerPosition=0, Inst< TrackerOrientation > _trackerOrientation=0, Inst< SFMatrix4f > _positionCalibration=0, Inst< SFRotation > _orientationCalibration=0, Inst< SFVec3f > _proxyPosition=0, Inst< WeightedProxy > _weightedProxyPosition=0, Inst< SFFloat > _proxyWeighting=0, Inst< SFBool > _mainButton=0, Inst< SFBool > _secondaryButton=0, Inst< SFInt32 > _buttons=0, Inst< SFVec3f > _force=0, Inst< SFVec3f > _torque=0, Inst< SFInt32 > _inputDOF=0, Inst< SFInt32 > _outputDOF=0, Inst< SFInt32 > _hapticsRate=0, Inst< SFInt32 > _desiredHapticsRate=0, Inst< SFNode > _stylus=0, Inst< SFHapticsRendererNode > _hapticsRenderer=0, Inst< MFVec3f > _proxyPositions=0, Inst< SFBool > _followViewpoint=0, Inst< GetValueSafeField< SFVec3f > > _set_devicePosition=0, Inst< GetValueSafeField< SFRotation > > _set_deviceOrientation=0, Inst< SetMainButton > _set_mainButton=0, Inst< SFFloat > _posSensitivity=0, Inst< SFFloat > _ornSensitivity=0) | |
| Constructor. | |
| virtual void | updateDeviceValues () |
| updateDeviceValues is specialized to update the values of the SpaceWareSensor. | |
 Public Member Functions inherited from H3D::H3DFakeHapticsDevice | |
| H3DFakeHapticsDevice (Inst< SFVec3f > _devicePosition=0, Inst< SFRotation > _deviceOrientation=0, Inst< TrackerPosition > _trackerPosition=0, Inst< TrackerOrientation > _trackerOrientation=0, Inst< SFMatrix4f > _positionCalibration=0, Inst< SFRotation > _orientationCalibration=0, Inst< SFVec3f > _proxyPosition=0, Inst< WeightedProxy > _weightedProxyPosition=0, Inst< SFFloat > _proxyWeighting=0, Inst< SFBool > _mainButton=0, Inst< SFBool > _secondaryButton=0, Inst< SFInt32 > _buttons=0, Inst< SFVec3f > _force=0, Inst< SFVec3f > _torque=0, Inst< SFInt32 > _inputDOF=0, Inst< SFInt32 > _outputDOF=0, Inst< SFInt32 > _hapticsRate=0, Inst< SFInt32 > _desiredHapticsRate=0, Inst< SFNode > _stylus=0, Inst< SFHapticsRendererNode > _hapticsRenderer=0, Inst< MFVec3f > _proxyPositions=0, Inst< SFBool > _followViewpoint=0, Inst< GetValueSafeField< SFVec3f > > _set_devicePosition=0, Inst< GetValueSafeField< SFRotation > > _set_deviceOrientation=0, Inst< GetValueSafeField< SFBool > > _set_mainButton=0, Inst< GetValueSafeField< SFBool > > _set_secondaryButton=0, Inst< GetValueSafeField< SFBool > > _set_pauseDeviceTransform=0, Inst< SFFloat > _gripperAngle=0, Inst< GetValueSafeField< SFFloat > > _set_gripperAngle=0, Inst< SFFloat > _gripperForce=0) | |
| Constructor. | |
| ~H3DFakeHapticsDevice () | |
| Destructor. | |
| Public Member Functions inherited from H3D::H3DHapticsDevice | |
| H3DHapticsDevice (Inst< SFVec3f > _devicePosition=0, Inst< SFRotation > _deviceOrientation=0, Inst< TrackerPosition > _trackerPosition=0, Inst< TrackerOrientation > _trackerOrientation=0, Inst< SFMatrix4f > _positionCalibration=0, Inst< SFRotation > _orientationCalibration=0, Inst< SFVec3f > _proxyPosition=0, Inst< WeightedProxy > _weightedProxyPosition=0, Inst< SFFloat > _proxyWeighting=0, Inst< SFBool > _mainButton=0, Inst< SFBool > _secondaryButton=0, Inst< SFInt32 > _buttons=0, Inst< SFVec3f > _force=0, Inst< SFVec3f > _torque=0, Inst< SFInt32 > _inputDOF=0, Inst< SFInt32 > _outputDOF=0, Inst< SFInt32 > _hapticsRate=0, Inst< SFInt32 > _desiredHapticsRate=0, Inst< SFNode > _stylus=0, Inst< SFHapticsRendererNode > _hapticsRenderer=0, Inst< MFVec3f > _proxyPositions=0, Inst< SFBool > _followViewpoint=0, Inst< SFVec3f > _deviceVelocity=0, Inst< TrackerVelocity > _trackerVelocity=0, Inst< SFString > _profiledResult=0, Inst< SFVec3f > _deviceAngularVelocity=0, Inst< TrackerAngularVelocity > _trackerAngularVelocity=0) | |
| Constructor. | |
| virtual | ~H3DHapticsDevice () |
| Destuctor. | |
| Vec3f | getPreviousProxyPosition (unsigned int layer=0) |
| Get the proxy position from the previous loop for a certain layer. More... | |
| const vector< Vec3f > & | getPreviousProxyPositions () |
| Get all previous proxy positions. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| HAPI::HAPIHapticsDevice * | getHAPIDevice () |
| Get the HAPIHapticsDevice that is encapsulated by this node. | |
| virtual ErrorCode | initDevice () |
| Does all the initialization needed for the device before starting to use it. | |
| virtual ErrorCode | releaseDevice () |
| Perform cleanup and let go of all device resources that are allocated. More... | |
| virtual ErrorCode | enableDevice () |
| Enable the device. Positions can be read and force can be sent. | |
| virtual ErrorCode | disableDevice () |
| Temporarily disable the device. More... | |
| H3DUtil::PeriodicThreadBase * | getThread () |
| Get the thread that is used to run this haptics device. | |
| virtual void | postInit () |
| This function is called for all devices in a DeviceInfo node for which the initDevice has been called. More... | |
| virtual void | preRender () |
| This function is called at the start of each scenegraph loop before any calls to other HapticDevice functions and can be used to perform any necessary operation that are needed for the other calls to function properly. | |
| virtual void | postRender () |
| This function is called at the end of each scenegraph loop after all calls to other HapticDevice functions and can be used to perform any necessary operation that are needed. | |
| virtual void | renderShapes (const HapticShapeVector &shapes, unsigned int layer=0) |
| Perform haptic rendering for the given HapticShape instances. More... | |
| virtual void | renderStylus () |
| Render the stylus of the device wint OpenGL. | |
| virtual void | renderEffects (const HapticEffectVector &effects) |
| Perform haptic rendering for the given HAPIForceEffect instances. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual void | render () |
| the render() function is used for the depth-first rendering traversal of the scene-graph. More... | |
| virtual void | traverseSG (TraverseInfo &ti) |
| traverseSG is called once per scenegraph loop on the scene in order to traverse the scenegraph. More... | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
Public Attributes | |
| H3DUniquePtr< SFFloat > | posSensitivity |
| posSensitivity defines how fast the movement of the haptics device should be when using the SpaceWare device. More... | |
| H3DUniquePtr< SFFloat > | ornSensitivity |
| ornSensitivity defines how fast the orientation of the haptics device should move when using the SpaceWare device. More... | |
| Public Attributes inherited from H3D::H3DFakeHapticsDevice | |
| H3DUniquePtr< GetValueSafeField< SFVec3f > > | set_devicePosition |
| The set_devicePosition field can be used to set the devicePosition field of the haptics device. More... | |
| H3DUniquePtr< GetValueSafeField< SFRotation > > | set_deviceOrientation |
| The set_deviceOrientation field can be used to set the deviceOrientation field of the haptics device. More... | |
| H3DUniquePtr< GetValueSafeField< SFBool > > | set_mainButton |
| The set_mainButton field can be used to set the mainButton field of the haptics device. More... | |
| H3DUniquePtr< GetValueSafeField< SFBool > > | set_secondaryButton |
| The set_secondaryButton field can be used to set the secondaryButton field of the haptics device. More... | |
| H3DUniquePtr< GetValueSafeField< SFBool > > | set_pauseDeviceTransform |
| The set_pauseDeviceTransform field can be used to pause the transform of the haptics device. More... | |
| H3DUniquePtr< SFFloat > | gripperAngle |
| Output field for the gripper angle. More... | |
| H3DUniquePtr< GetValueSafeField< SFFloat > > | set_gripperAngle |
| The set_gripperAngle field can be used to set the gripperAngle field. More... | |
| H3DUniquePtr< SFFloat > | gripperForce |
| Output field for the gripper force. More... | |
| Public Attributes inherited from H3D::H3DHapticsDevice | |
| H3DUniquePtr< SFVec3f > | devicePosition |
| The position of the device given in the coordinate system of the device. More... | |
| H3DUniquePtr< SFRotation > | deviceOrientation |
| The orientation of the device given in the coordinate system of the device. More... | |
| H3DUniquePtr< TrackerPosition > | trackerPosition |
| The position of the device in the world coordinates of the API. More... | |
| H3DUniquePtr< TrackerOrientation > | trackerOrientation |
| The orientation of the device in the world coordinates of the API. More... | |
| H3DUniquePtr< SFMatrix4f > | positionCalibration |
| The calibration matrix between devicePosition and trackerPosition. More... | |
| H3DUniquePtr< SFMatrix4f > | adjustedPositionCalibration |
| The calibration matrix between devicePosition and trackerPosition adjusted with the movement of the viewpoint. | |
| H3DUniquePtr< SFRotation > | orientationCalibration |
| The calibration rotation between deviceOrientation and trackerOrientation. More... | |
| H3DUniquePtr< SFRotation > | adjustedOrnCalibration |
| The calibration rotation between deviceOrientation and trackerOrientation adjusted with the movement of the viewpoint. | |
| H3DUniquePtr< SFVec3f > | proxyPosition |
| The position of the proxy used in the haptic rendering(layer 0). More... | |
| H3DUniquePtr< WeightedProxy > | weightedProxyPosition |
| A weighted position between proxyPosition and trackerPosition. More... | |
| H3DUniquePtr< SFFloat > | proxyWeighting |
| The weighting between proxyPosition and trackerPosition when calculating weightedProxyPosition. More... | |
| H3DUniquePtr< SFBool > | mainButton |
| The state of the main button(button 0). More... | |
| H3DUniquePtr< SFBool > | secondaryButton |
| The state of the secondary button (button 1). More... | |
| H3DUniquePtr< SFInt32 > | buttons |
| The state of all buttons. More... | |
| H3DUniquePtr< SFVec3f > | force |
| The approximation of the force that has been rendered during the last scenegraph loop. More... | |
| H3DUniquePtr< SFVec3f > | torque |
| The approximation of the torque that has been rendered during the last scenegraph loop. More... | |
| H3DUniquePtr< SFInt32 > | inputDOF |
| The degrees of freedom supported as input. More... | |
| H3DUniquePtr< SFInt32 > | outputDOF |
| The degrees of freedom supported as output, i.e. More... | |
| H3DUniquePtr< SFInt32 > | hapticsRate |
| The update rate of the servoloop of the H3DHapticsDevice. More... | |
| H3DUniquePtr< SFInt32 > | desiredHapticsRate |
| The desired update rate of the servoloop of the H3DHapticsDevice. More... | |
| H3DUniquePtr< SFTime > | hapticsLoopTime |
| The time spent in the last haptics loop(in seconds) A value of -1 means that no haptics loop has been completed yet. More... | |
| H3DUniquePtr< SFNode > | stylus |
| The Node used as the visual representation of the stylus. More... | |
| H3DUniquePtr< SFBool > | initialized |
| true if the device is initialized and ready for calls to updateDeviceValues() and renderObjects(). More... | |
| H3DUniquePtr< SFHapticsRendererNode > | hapticsRenderer |
| Specifies the haptics rendering algorithm to use to generate forces from geometric shapes. More... | |
| H3DUniquePtr< MFVec3f > | proxyPositions |
| The positions of the proxies for each layer used in haptic rendering(layer 0). More... | |
| H3DUniquePtr< SetEnabled > | set_enabled |
| Enable/disable the device. More... | |
| H3DUniquePtr< SFBool > | enabled |
| true if the device is enabled, e.g. More... | |
| H3DUniquePtr< SFBool > | followViewpoint |
| true if the device should follow the viewpoint. More... | |
| H3DUniquePtr< SFVec3f > | deviceVelocity |
| The velocity of the device in the coordinate system of the device. More... | |
| H3DUniquePtr< TrackerVelocity > | trackerVelocity |
| The velocity of the device in the world coordinates of the API. More... | |
| H3DUniquePtr< SFFloat > | forceLimit |
| The maximum force(in N) we want the device to render. More... | |
| H3DUniquePtr< SFFloat > | forceScale |
| Set the scaling of the output force. More... | |
| H3DUniquePtr< SFBool > | deadmansSwitch |
| This is an alternative operational safety mode. More... | |
| H3DUniquePtr< SFFloat > | torqueLimit |
| The maximum torque(in Nm) we want the device to render. More... | |
| H3DUniquePtr< SFVec3f > | deviceAngularVelocity |
| The angular velocity of the device in the coordinate system of the device. More... | |
| H3DUniquePtr< TrackerAngularVelocity > | trackerAngularVelocity |
| The angular velocity of the device in the world coordinates of the API. More... | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| Node database entry. | |
| Static Public Attributes inherited from H3D::H3DFakeHapticsDevice | |
| static H3DNodeDatabase | database |
| Node database entry. | |
| Static Public Attributes inherited from H3D::H3DHapticsDevice | |
| static H3DNodeDatabase | database |
| Node database entry. | |
Protected Attributes | |
| AutoRef< SpaceWareSensor > | spaceware_sensor |
| The SpaceWareSensor node used to control the haptics device. | |
| Protected Attributes inherited from H3D::H3DHapticsDevice | |
| TimeStamp | last_effect_change |
| The time for the last call to the renderEffects function. | |
Additional Inherited Members | |
| Public Types inherited from H3D::H3DHapticsDevice | |
| typedef SFMatrix4f | PosCalibration |
| typedef SFRotation | OrnCalibration |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
Detailed Description
A fake haptics device where the position and orientation is controlled via a SpaceWare device such as the SpaceMouse or SpaceTraveller.
Examples:
- Internal routes:
Member Data Documentation
◆ ornSensitivity
| H3DUniquePtr< SFFloat > H3D::SpaceWareHapticsDevice::ornSensitivity |
ornSensitivity defines how fast the orientation of the haptics device should move when using the SpaceWare device.
Access type: inputOutput
Default value: 0.05
Referenced by SpaceWareHapticsDevice().
◆ posSensitivity
| H3DUniquePtr< SFFloat > H3D::SpaceWareHapticsDevice::posSensitivity |
posSensitivity defines how fast the movement of the haptics device should be when using the SpaceWare device.
Access type: inputOutput
Default value: 0.0001
Referenced by SpaceWareHapticsDevice().
The documentation for this class was generated from the following files:
