osgViewer::Viewer Class Reference

Viewer holds a single view on to a single scene. More...

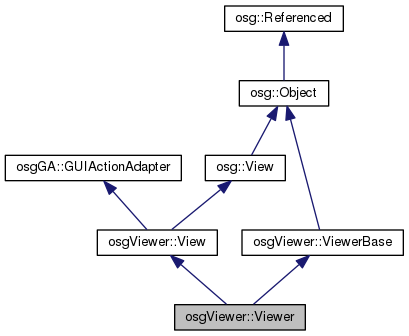

Inheritance diagram for osgViewer::Viewer:

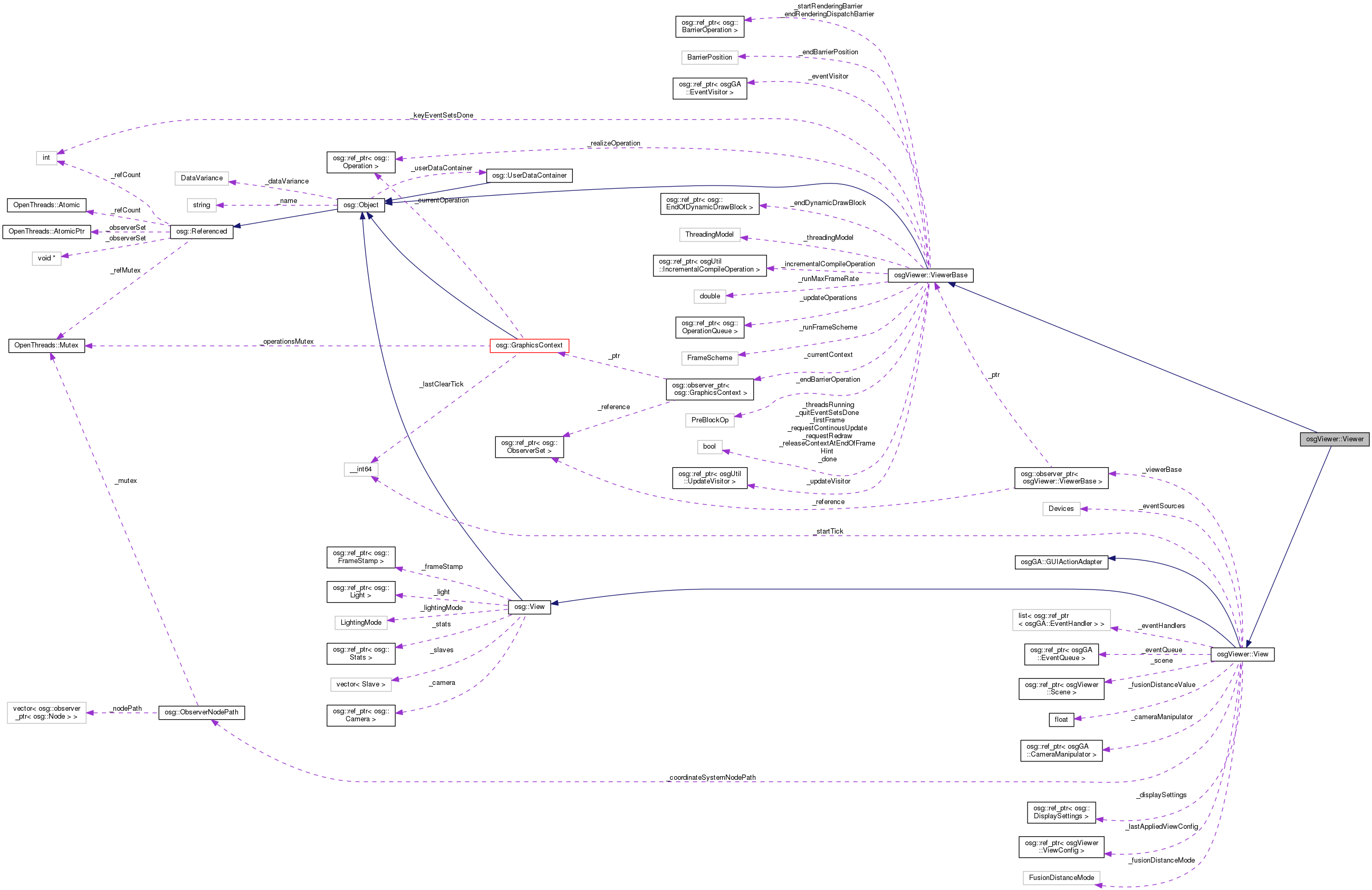

Collaboration diagram for osgViewer::Viewer:

Public Member Functions
	Viewer (osg::ArgumentParser &arguments)
	Viewer (const osgViewer::Viewer &viewer, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	META_Object (osgViewer, Viewer)
virtual void	take (osg::View &rhs)
	Take all the settings, Camera and Slaves from the passed in view(er), leaving it empty. More...
virtual void	setViewerStats (osg::Stats *stats)
	Set the Stats object used to collect various frame related timing and scene graph stats. More...
virtual osg::Stats *	getViewerStats ()
	Get the Viewers Stats object. More...
virtual const osg::Stats *	getViewerStats () const
	Get the Viewers Stats object. More...
virtual bool	readConfiguration (const std::string &filename)
	read the viewer configuration from a configuration file. More...
virtual bool	isRealized () const
	Get whether at least of one of this viewers windows are realized. More...
virtual void	realize ()
	set up windows and associated threads. More...
virtual void	setStartTick (osg::Timer_t tick)
void	setReferenceTime (double time=0.0)
virtual void	setSceneData (osg::Node *node)
	Set the sene graph data that viewer with view. More...
virtual GraphicsWindowEmbedded *	setUpViewerAsEmbeddedInWindow (int x, int y, int width, int height)
	Convenience method for setting up the viewer so it can be used embedded in an external managed window. More...
virtual double	elapsedTime ()
virtual osg::FrameStamp *	getViewerFrameStamp ()
virtual int	run ()
	Execute a main frame loop. More...
virtual bool	checkNeedToDoFrame ()
	check to see if the new frame is required, called by run(..) when FrameScheme is set to ON_DEMAND. More...
virtual bool	checkEvents ()
	check to see if events have been received, return true if events are now available. More...
virtual void	advance (double simulationTime=USE_REFERENCE_TIME)
virtual void	eventTraversal ()
virtual void	updateTraversal ()
virtual void	getCameras (Cameras &cameras, bool onlyActive=true)
virtual void	getContexts (Contexts &contexts, bool onlyValid=true)
virtual void	getAllThreads (Threads &threads, bool onlyActive=true)
virtual void	getOperationThreads (OperationThreads &threads, bool onlyActive=true)
virtual void	getScenes (Scenes &scenes, bool onlyValid=true)
virtual void	getViews (Views &views, bool onlyValid=true)
virtual void	getUsage (osg::ApplicationUsage &usage) const
	Get the keyboard and mouse usage of this viewer. More...
Public Member Functions inherited from osgViewer::ViewerBase
	ViewerBase (const ViewerBase &vb)
virtual void	setThreadingModel (ThreadingModel threadingModel)
	Set the threading model the rendering traversals will use. More...
ThreadingModel	getThreadingModel () const
	Get the threading model the rendering traversals will use. More...
virtual ThreadingModel	suggestBestThreadingModel ()
	Let the viewer suggest the best threading model for the viewers camera/window setup and the hardware available. More...
virtual void	setUpThreading ()
	Set up the threading and processor affinity as per the viewers threading model. More...
bool	areThreadsRunning () const
	Return true if viewer threads are running. More...
virtual void	stopThreading ()
	Stop any threads being run by viewer. More...
virtual void	startThreading ()
	Start any threads required by the viewer. More...
void	setEndBarrierPosition (BarrierPosition bp)
	Set the position of the end barrier. More...
BarrierPosition	getEndBarrierPosition () const
	Get the end barrier position. More...
void	setEndBarrierOperation (osg::BarrierOperation::PreBlockOp op)
	Set the end barrier operation. More...
osg::BarrierOperation::PreBlockOp	getEndBarrierOperation () const
	Get the end barrier operation. More...
void	setDone (bool done)
	Set the done flag to signal the viewer's work is done and should exit the frame loop. More...
bool	done () const
	Return true if viewer's work is done and should exit the frame loop. More...
void	setEventVisitor (osgGA::EventVisitor *eventVisitor)
	Set the EventVisitor. More...
osgGA::EventVisitor *	getEventVisitor ()
	Get the EventVisitor. More...
const osgGA::EventVisitor *	getEventVisitor () const
	Get the const EventVisitor. More...
void	setKeyEventSetsDone (int key)
	Set the key event that the viewer checks on each frame to see if the viewer's done flag should be set to signal end of viewers main loop. More...
int	getKeyEventSetsDone () const
	get the key event that the viewer checks on each frame to see if the viewer's done flag. More...
void	setQuitEventSetsDone (bool flag)
	if the flag is true, the viewer set its done flag when a QUIT_APPLICATION is received, false disables this feature
bool	getQuitEventSetsDone () const
void	setReleaseContextAtEndOfFrameHint (bool hint)
	Hint to tell the renderingTraversals() method whether to call releaseContext() on the last context that was made current by the thread calling renderingTraverals(). More...
bool	getReleaseContextAtEndOfFrameHint () const
	Hint to tell the renderingTraversals() method whether to call releaseContext(). More...
void	setUpdateVisitor (osgUtil::UpdateVisitor *updateVisitor)
	Set the UpdateVisitor. More...
osgUtil::UpdateVisitor *	getUpdateVisitor ()
	Get the UpdateVisitor. More...
const osgUtil::UpdateVisitor *	getUpdateVisitor () const
	Get the const UpdateVisitor. More...
void	setUpdateOperations (osg::OperationQueue *operations)
	Set the Update OperationQueue. More...
osg::OperationQueue *	getUpdateOperations ()
	Get the Update OperationQueue. More...
const osg::OperationQueue *	getUpdateOperations () const
	Get the const Update OperationQueue. More...
void	addUpdateOperation (osg::Operation *operation)
	Add an update operation. More...
void	removeUpdateOperation (osg::Operation *operation)
	Remove an update operation. More...
void	setRealizeOperation (osg::Operation *op)
	Set the graphics operation to call on realization of the viewers graphics windows. More...
osg::Operation *	getRealizeOperation ()
	Get the graphics operation to call on realization of the viewers graphics windows. More...
void	setIncrementalCompileOperation (osgUtil::IncrementalCompileOperation *ico)
	Set the incremental compile operation. More...
osgUtil::IncrementalCompileOperation *	getIncrementalCompileOperation ()
	Get the incremental compile operation. More...
void	setRunFrameScheme (FrameScheme fs)
FrameScheme	getRunFrameScheme () const
void	setRunMaxFrameRate (double frameRate)
double	getRunMaxFrameRate () const
virtual void	frame (double simulationTime=USE_REFERENCE_TIME)
	Render a complete new frame. More...
virtual void	renderingTraversals ()
virtual void	getWindows (Windows &windows, bool onlyValid=true)
void	checkWindowStatus ()
	Check to see if any windows are still open. More...
void	checkWindowStatus (const Contexts &contexts)
	Check to see if windows are still open using the list of contexts given as a parameter. More...
Public Member Functions inherited from osg::Object
	Object ()
	Construct an object. More...
	Object (bool threadSafeRefUnref)
	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor, optional CopyOp object can be used to control shallow vs deep copying of dynamic data. More...
virtual Object *	cloneType () const =0
	Clone the type of an object, with Object* return type. More...
virtual Object *	clone (const CopyOp &) const =0
	Clone an object, with Object* return type. More...
virtual bool	isSameKindAs (const Object *) const
virtual const char *	libraryName () const =0
	return the name of the object's library. More...
virtual const char *	className () const =0
	return the name of the object's class type. More...
std::string	getCompoundClassName () const
	return the compound class name that combines the library name and class name. More...
virtual Node *	asNode ()
	Convert 'this' into a Node pointer if Object is a Node, otherwise return 0. More...
virtual const Node *	asNode () const
	convert 'const this' into a const Node pointer if Object is a Node, otherwise return 0. More...
virtual NodeVisitor *	asNodeVisitor ()
	Convert 'this' into a NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...
virtual const NodeVisitor *	asNodeVisitor () const
	convert 'const this' into a const NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...
virtual StateAttribute *	asStateAttribute ()
	Convert 'this' into a StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...
virtual const StateAttribute *	asStateAttribute () const
	convert 'const this' into a const StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...
virtual Uniform *	asUniform ()
	Convert 'this' into a Uniform pointer if Object is a Uniform, otherwise return 0. More...
virtual const Uniform *	asUniform () const
	convert 'const this' into a const Uniform pointer if Object is a Uniform, otherwise return 0. More...
virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...
virtual void	setName (const std::string &name)
	Set the name of object using C++ style string. More...
void	setName (const char *name)
	Set the name of object using a C style string. More...
const std::string &	getName () const
	Get the name of object. More...
void	setDataVariance (DataVariance dv)
	Set the data variance of this object. More...
DataVariance	getDataVariance () const
	Get the data variance of this object. More...
virtual void	computeDataVariance ()
	Compute the DataVariance based on an assessment of callback etc. More...
void	setUserDataContainer (osg::UserDataContainer *udc)
	set the UserDataContainer object. More...
template<class T >
void	setUserDataContainer (const ref_ptr< T > &udc)
osg::UserDataContainer *	getUserDataContainer ()
	get the UserDataContainer attached to this object. More...
const osg::UserDataContainer *	getUserDataContainer () const
	get the const UserDataContainer attached to this object. More...
osg::UserDataContainer *	getOrCreateUserDataContainer ()
	Convenience method that returns the UserDataContainer, and if one doesn't already exist creates and assigns a DefaultUserDataContainer to the Object and then return this new UserDataContainer. More...
virtual void	setUserData (Referenced *obj)
	Set user data, data must be subclassed from Referenced to allow automatic memory handling. More...
template<class T >
void	setUserData (const ref_ptr< T > &ud)
virtual Referenced *	getUserData ()
	Get user data. More...
virtual const Referenced *	getUserData () const
	Get const user data. More...
template<typename T >
bool	getUserValue (const std::string &name, T &value) const
	Convenience method that casts the named UserObject to osg::TemplateValueObject<T> and gets the value. More...
template<typename T >
void	setUserValue (const std::string &name, const T &value)
	Convenience method that creates the osg::TemplateValueObject<T> to store the specified value and adds it as a named UserObject. More...
virtual void	resizeGLObjectBuffers (unsigned int)
	Resize any per context GLObject buffers to specified size. More...
virtual void	releaseGLObjects (osg::State *=0) const
	If State is non-zero, this function releases any associated OpenGL objects for the specified graphics context. More...
template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
	provide implementation of osg::Object::getUserValue(..) template
Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)
	Referenced (const Referenced &)
Referenced &	operator= (const Referenced &)
bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...
bool	getThreadSafeRefUnref () const
OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...
OpenThreads::Mutex *	getRefMutex () const
int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...
int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...
int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...
int	referenceCount () const
	Return the number of pointers currently referencing this object. More...
ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...
ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...
void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...
void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...
Public Member Functions inherited from osgViewer::View
	View (const osgViewer::View &view, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)
	META_Object (osgViewer, View)
virtual osg::View *	asView ()
	Provide a mechanism for getting the osg::View associated from the GUIActionAdapter. More...
ViewerBase *	getViewerBase ()
	Provide a mechanism for getting the viewer object from this osgViewer::View. More...
osg::Timer_t	getStartTick () const
Scene *	getScene ()
const Scene *	getScene () const
template<class T >
void	setSceneData (const osg::ref_ptr< T > &node)
osg::Node *	getSceneData ()
	Get the View's scene graph. More...
const osg::Node *	getSceneData () const
	Get the const View's scene graph. More...
void	setDatabasePager (osgDB::DatabasePager *dp)
	Set the View's database pager. More...
template<class T >
void	setDatabasePager (const osg::ref_ptr< T > &dp)
osgDB::DatabasePager *	getDatabasePager ()
	Get the View's database pager. More...
const osgDB::DatabasePager *	getDatabasePager () const
	Get the const View's database pager. More...
void	setImagePager (osgDB::ImagePager *ip)
	Set the View's image pager. More...
template<class T >
void	setImagePager (const osg::ref_ptr< T > &ip)
osgDB::ImagePager *	getImagePager ()
	Get the View's image pager. More...
const osgDB::ImagePager *	getImagePager () const
	Get the const View's image pager. More...
void	addDevice (osgGA::Device *eventSource)
	Add a Device. More...
template<class T >
void	addDevice (const osg::ref_ptr< T > &eventSource)
void	setEventQueue (osgGA::EventQueue *eventQueue)
	Remove a Device. More...
template<class T >
void	setEventQueue (const osg::ref_ptr< T > &eventQueue)
osgGA::EventQueue *	getEventQueue ()
const osgGA::EventQueue *	getEventQueue () const
void	setCameraManipulator (osgGA::CameraManipulator *manipulator, bool resetPosition=true)
	Set the CameraManipulator that moves the View's master Camera position in response to events. More...
template<class T >
void	setCameraManipulator (const osg::ref_ptr< T > &manipulator, bool resetPosition=true)
osgGA::CameraManipulator *	getCameraManipulator ()
	Get the View's CameraManipulator. More...
const osgGA::CameraManipulator *	getCameraManipulator () const
	Get the const View's CameraManipulator. More...
void	home ()
	Set the view to the CameraManipulator's home position, if none is attached home() it does nothing. More...
void	addEventHandler (osgGA::EventHandler *eventHandler)
	Add an EventHandler that adds handling of events to the View. More...
template<class T >
void	addEventHandler (const osg::ref_ptr< T > &eventHandler)
void	removeEventHandler (osgGA::EventHandler *eventHandler)
	Remove an EventHandler from View. More...
template<class T >
void	removeEventHandler (const osg::ref_ptr< T > &eventHandler)
EventHandlers &	getEventHandlers ()
	Get the View's list of EventHandlers. More...
const EventHandlers &	getEventHandlers () const
	Get the const View's list of EventHandlers. More...
void	setCoordinateSystemNodePath (const osg::NodePath &nodePath)
	Set the NodePath to any active CoordinateSystemNode present in the Scene. More...
osg::NodePath	getCoordinateSystemNodePath () const
	Get the NodePath to any active CoordinateSystemNode present in the Scene. More...
void	computeActiveCoordinateSystemNodePath ()
	Compute the NodePath to any active CoordinateSystemNode present in the Scene. More...
void	setDisplaySettings (osg::DisplaySettings *ds)
	Set the DisplaySettings object associated with this view. More...
template<class T >
void	setDisplaySettings (const osg::ref_ptr< T > &ds)
osg::DisplaySettings *	getDisplaySettings ()
	Set the DisplaySettings object associated with this view. More...
const osg::DisplaySettings *	getDisplaySettings () const
	Set the DisplaySettings object associated with this view. More...
void	setFusionDistance (osgUtil::SceneView::FusionDistanceMode mode, float value=1.0f)
	Set the FusionDistanceMode and Value. More...
osgUtil::SceneView::FusionDistanceMode	getFusionDistanceMode () const
	Get the FusionDistanceMode. More...
float	getFusionDistanceValue () const
	Get the FusionDistanceValue. More...
void	apply (ViewConfig *config)
	Apply a viewer configuration to set up Cameras and Windowing. More...
template<class T >
void	apply (const osg::ref_ptr< T > &config)
ViewConfig *	getLastAppliedViewConfig ()
const ViewConfig *	getLastAppliedViewConfig () const
void	setUpViewAcrossAllScreens ()
	deprecated, use view.apply(new osgViewer::AcrossAllWindows()). More...
void	setUpViewInWindow (int x, int y, int width, int height, unsigned int screenNum=0)
	deprecated, use view.apply(new osgViewer::SingleWindow(x,y,width,screenNum)). More...
void	setUpViewOnSingleScreen (unsigned int screenNum=0)
	deprecated, use view.apply(new osgViewer::SingleScreen(screenNum)). More...
void	setUpViewFor3DSphericalDisplay (double radius=1.0, double collar=0.45, unsigned int screenNum=0, osg::Image *intensityMap=0, const osg::Matrixd &projectorMatrix=osg::Matrixd())
	deprecated, use view.apply(new osgViewer::SphericalDisplay(radius, collar, screenNum, intensityMap, projectorMatrix)). More...
void	setUpViewForPanoramicSphericalDisplay (double radius=1.0, double collar=0.45, unsigned int screenNum=0, osg::Image *intensityMap=0, const osg::Matrixd &projectorMatrix=osg::Matrixd())
	deprecated, use view.apply(new osgViewer::PanoramicSphericalDisplay(radius, collar, screenNum, intensityMap, projectorMatrix)). More...
void	setUpViewForWoWVxDisplay (unsigned int screenNum, unsigned char wow_content, unsigned char wow_factor, unsigned char wow_offset, float wow_disparity_Zd, float wow_disparity_vz, float wow_disparity_M, float wow_disparity_C)
	deprecated. More...
bool	setUpDepthPartitionForCamera (osg::Camera *cameraToPartition, DepthPartitionSettings *dps=0)
	Convenience method for setting up depth partitioning on the specified camera. More...
bool	setUpDepthPartition (DepthPartitionSettings *dsp=0)
	Convenience method for setting up multiple slave cameras with depth partitioning on each of the view's active cameras. More...
bool	containsCamera (const osg::Camera *camera) const
	Return true if this view contains a specified camera. More...
template<class T >
bool	containsCamera (const osg::ref_ptr< T > &camera) const
const osg::Camera *	getCameraContainingPosition (float x, float y, float &local_x, float &local_y) const
	deprecated. More...
bool	computeIntersections (float x, float y, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)
	deprecated. More...
bool	computeIntersections (float x, float y, const osg::NodePath &nodePath, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)
	deprecated. More...
bool	computeIntersections (const osgGA::GUIEventAdapter &ea, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute intersections of a ray, starting the current mouse position, through the specified camera. More...
bool	computeIntersections (const osgGA::GUIEventAdapter &ea, const osg::NodePath &nodePath, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute intersections of a ray, starting the current mouse position, through the specified master camera's window/eye coordinates and a specified nodePath's subgraph. More...
bool	computeIntersections (const osg::Camera *camera, osgUtil::Intersector::CoordinateFrame cf, float x, float y, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute intersections of a ray through the specified camera. More...
bool	computeIntersections (const osg::Camera *camera, osgUtil::Intersector::CoordinateFrame cf, float x, float y, const osg::NodePath &nodePath, osgUtil::LineSegmentIntersector::Intersections &intersections, osg::Node::NodeMask traversalMask=0xffffffff)
	Compute intersections of a ray through the specified camera and a specified nodePath's subgraph. More...
virtual void	requestRedraw ()
	requestRedraw() requests a single redraw.
virtual void	requestContinuousUpdate (bool needed=true)
	requestContinuousUpdate(bool) is for en/disabling a throw or idle callback to be requested by a GUIEventHandler (typically a CameraManipulator, though other GUIEventHandler's may also provide functionality). More...
virtual void	requestWarpPointer (float x, float y)
	requestWarpPointer(int,int) is requesting a repositioning of the mouse pointer to a specified x,y location on the window. More...
osg::Texture *	createDistortionTexture (int width, int height)
osg::Camera *	assignRenderToTextureCamera (osg::GraphicsContext *gc, int width, int height, osg::Texture *texture)
osg::Camera *	assignKeystoneDistortionCamera (osg::DisplaySettings *ds, osg::GraphicsContext *gc, int x, int y, int width, int height, GLenum buffer, osg::Texture *texture, Keystone *keystone)
osg::Camera *	assignStereoCamera (osg::DisplaySettings *ds, osg::GraphicsContext *gc, int x, int y, int width, int height, GLenum buffer, double eyeScale)
void	assignStereoOrKeystoneToCamera (osg::Camera *camera, osg::DisplaySettings *ds)
void	assignSceneDataToCameras ()
void	init ()
Public Member Functions inherited from osg::View
	View (const osg::View &view, const osg::CopyOp &copyop=CopyOp::SHALLOW_COPY)
	META_Object (osg, View)
void	setStats (osg::Stats *stats)
	Set the Stats object used to collect various frame related timing and scene graph stats. More...
osg::Stats *	getStats ()
	Get the Viewers Stats object. More...
const osg::Stats *	getStats () const
	Get the Viewers Stats object. More...
void	setLightingMode (LightingMode lightingMode)
	Set the global lighting to use for this view. More...
LightingMode	getLightingMode () const
	Get the global lighting used for this view. More...
void	setLight (osg::Light *light)
	Get the global light. More...
osg::Light *	getLight ()
	Get the global lighting if assigned. More...
const osg::Light *	getLight () const
	Get the const global lighting if assigned. More...
void	setCamera (osg::Camera *camera)
	Set the master camera of the view. More...
osg::Camera *	getCamera ()
	Get the master camera of the view. More...
const osg::Camera *	getCamera () const
	Get the const master camera of the view. More...
void	setFrameStamp (osg::FrameStamp *fs)
	Set the frame stamp of the view. More...
osg::FrameStamp *	getFrameStamp ()
	Get the frame stamp of the view. More...
const osg::FrameStamp *	getFrameStamp () const
	Get the frame stamp of the view. More...
bool	addSlave (osg::Camera *camera, bool useMastersSceneData=true)
bool	addSlave (osg::Camera *camera, const osg::Matrix &projectionOffset, const osg::Matrix &viewOffset, bool useMastersSceneData=true)
bool	removeSlave (unsigned int pos)
unsigned int	getNumSlaves () const
Slave &	getSlave (unsigned int pos)
const Slave &	getSlave (unsigned int pos) const
unsigned int	findSlaveIndexForCamera (osg::Camera *camera) const
Slave *	findSlaveForCamera (osg::Camera *camera)
void	updateSlaves ()

Protected Member Functions
void	constructorInit ()
virtual void	viewerInit ()
void	generateSlavePointerData (osg::Camera *camera, osgGA::GUIEventAdapter &event)
void	generatePointerData (osgGA::GUIEventAdapter &event)
void	reprojectPointerData (osgGA::GUIEventAdapter &source_event, osgGA::GUIEventAdapter &dest_event)
Protected Member Functions inherited from osgViewer::ViewerBase
void	viewerBaseInit ()
void	makeCurrent (osg::GraphicsContext *gc)
void	releaseContext ()
Protected Member Functions inherited from osg::Object
virtual	~Object ()
	Object destructor. More...
Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const
void	deleteUsingDeleteHandler () const
Protected Member Functions inherited from osgViewer::View
virtual osg::GraphicsOperation *	createRenderer (osg::Camera *camera)

Additional Inherited Members
Public Types inherited from osgViewer::ViewerBase
enum	ThreadingModel {   SingleThreaded, CullDrawThreadPerContext, ThreadPerContext = CullDrawThreadPerContext, DrawThreadPerContext,   CullThreadPerCameraDrawThreadPerContext, ThreadPerCamera = CullThreadPerCameraDrawThreadPerContext, AutomaticSelection }
enum	BarrierPosition { BeforeSwapBuffers, AfterSwapBuffers }
enum	FrameScheme { ON_DEMAND, CONTINUOUS }
typedef std::vector< osg::Camera * >	Cameras
typedef std::vector< osg::GraphicsContext * >	Contexts
typedef std::vector< osgViewer::GraphicsWindow * >	Windows
typedef std::vector< OpenThreads::Thread * >	Threads
typedef std::vector< osg::OperationThread * >	OperationThreads
typedef std::vector< osgViewer::Scene * >	Scenes
typedef std::vector< osgViewer::View * >	Views
Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }
Public Types inherited from osgViewer::View
typedef std::list< osg::ref_ptr< osgGA::EventHandler > >	EventHandlers
Public Types inherited from osg::View
enum	LightingMode { NO_LIGHT, HEADLIGHT, SKY_LIGHT }
	Options for controlling the global lighting used for the view. More...
Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...
static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...
static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...
static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...
static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...
Protected Types inherited from osg::View
typedef std::vector< Slave >	Slaves
Protected Attributes inherited from osgViewer::ViewerBase
bool	_firstFrame
bool	_done
int	_keyEventSetsDone
bool	_quitEventSetsDone
bool	_releaseContextAtEndOfFrameHint
ThreadingModel	_threadingModel
bool	_threadsRunning
bool	_requestRedraw
bool	_requestContinousUpdate
FrameScheme	_runFrameScheme
double	_runMaxFrameRate
BarrierPosition	_endBarrierPosition
osg::BarrierOperation::PreBlockOp	_endBarrierOperation
osg::ref_ptr< osg::BarrierOperation >	_startRenderingBarrier
osg::ref_ptr< osg::BarrierOperation >	_endRenderingDispatchBarrier
osg::ref_ptr< osg::EndOfDynamicDrawBlock >	_endDynamicDrawBlock
osg::ref_ptr< osgGA::EventVisitor >	_eventVisitor
osg::ref_ptr< osg::OperationQueue >	_updateOperations
osg::ref_ptr< osgUtil::UpdateVisitor >	_updateVisitor
osg::ref_ptr< osg::Operation >	_realizeOperation
osg::ref_ptr< osgUtil::IncrementalCompileOperation >	_incrementalCompileOperation
osg::observer_ptr< osg::GraphicsContext >	_currentContext
Protected Attributes inherited from osg::Object
std::string	_name
DataVariance	_dataVariance
osg::UserDataContainer *	_userDataContainer
Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet
OpenThreads::Atomic	_refCount
OpenThreads::Mutex *	_refMutex
int	_refCount
void *	_observerSet
Protected Attributes inherited from osgViewer::View
osg::observer_ptr< ViewerBase >	_viewerBase
osg::Timer_t	_startTick
Devices	_eventSources
osg::ref_ptr< osgViewer::Scene >	_scene
osg::ref_ptr< osgGA::EventQueue >	_eventQueue
osg::ref_ptr< osgGA::CameraManipulator >	_cameraManipulator
EventHandlers	_eventHandlers
osg::ObserverNodePath	_coordinateSystemNodePath
osg::ref_ptr< osg::DisplaySettings >	_displaySettings
osgUtil::SceneView::FusionDistanceMode	_fusionDistanceMode
float	_fusionDistanceValue
osg::ref_ptr< ViewConfig >	_lastAppliedViewConfig
Protected Attributes inherited from osg::View
osg::ref_ptr< osg::Stats >	_stats
LightingMode	_lightingMode
osg::ref_ptr< osg::Light >	_light
osg::ref_ptr< osg::Camera >	_camera
Slaves	_slaves
osg::ref_ptr< osg::FrameStamp >	_frameStamp

Detailed Description

Viewer holds a single view on to a single scene.

Member Function Documentation

checkEvents()

virtual bool osgViewer::Viewer::checkEvents ( )

virtual

check to see if events have been received, return true if events are now available.

Implements osgViewer::ViewerBase.

checkNeedToDoFrame()

virtual bool osgViewer::Viewer::checkNeedToDoFrame ( )

virtual

check to see if the new frame is required, called by run(..) when FrameScheme is set to ON_DEMAND.

Implements osgViewer::ViewerBase.

getUsage()

virtual void osgViewer::Viewer::getUsage ( osg::ApplicationUsage &  usage ) const

virtual

Get the keyboard and mouse usage of this viewer.

Implements osgViewer::ViewerBase.

getViewerStats() [1/2]

virtual osg::Stats* osgViewer::Viewer::getViewerStats ( )

inlinevirtual

Get the Viewers Stats object.

Implements osgViewer::ViewerBase.

getViewerStats() [2/2]

virtual const osg::Stats* osgViewer::Viewer::getViewerStats ( ) const

inlinevirtual

Get the Viewers Stats object.

Implements osgViewer::ViewerBase.

isRealized()

virtual bool osgViewer::Viewer::isRealized ( ) const

virtual

Get whether at least of one of this viewers windows are realized.

Implements osgViewer::ViewerBase.

readConfiguration()

virtual bool osgViewer::Viewer::readConfiguration ( const std::string &  filename )

virtual

read the viewer configuration from a configuration file.

Implements osgViewer::ViewerBase.

realize()

virtual void osgViewer::Viewer::realize ( )

virtual

set up windows and associated threads.

Implements osgViewer::ViewerBase.

run()

virtual int osgViewer::Viewer::run ( )

virtual

Execute a main frame loop.

Equivalent to while (!viewer.done()) viewer.frame(); Also calls realize() if the viewer is not already realized, and installs trackball manipulator if one is not already assigned.

Reimplemented from osgViewer::ViewerBase.

setSceneData()

virtual void osgViewer::Viewer::setSceneData ( osg::Node *  node )

virtual

Set the sene graph data that viewer with view.

Reimplemented from osgViewer::View.

setUpViewerAsEmbeddedInWindow()

virtual GraphicsWindowEmbedded* osgViewer::Viewer::setUpViewerAsEmbeddedInWindow ( int  x, int  y, int  width, int  height  )

virtual

Convenience method for setting up the viewer so it can be used embedded in an external managed window.

Returns the GraphicsWindowEmbedded that can be used by applications to pass in events to the viewer.

setViewerStats()

virtual void osgViewer::Viewer::setViewerStats ( osg::Stats *  stats )

inlinevirtual

Set the Stats object used to collect various frame related timing and scene graph stats.

Implements osgViewer::ViewerBase.

take()

virtual void osgViewer::Viewer::take ( osg::View &  rhs )

virtual

Take all the settings, Camera and Slaves from the passed in view(er), leaving it empty.

Reimplemented from osgViewer::View.

---

The documentation for this class was generated from the following file:

• /home/karlu20/private/installs/OpenSceneGraph/include/osgViewer/Viewer
