An HAnimSite node serves three purposes. More...
#include <H3D/HAnimSite.h>

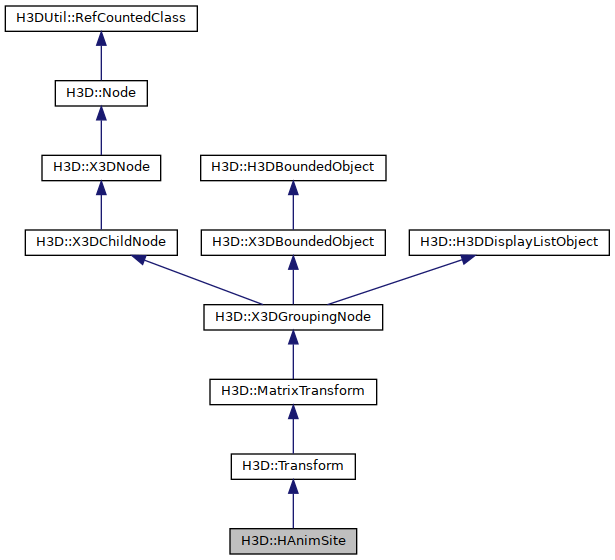

Inheritance diagram for H3D::HAnimSite:
Public Member Functions | |
| HAnimSite (Inst< AddChildren > _addChildren=0, Inst< RemoveChildren > _removeChildren=0, Inst< SFVec3f > _center=0, Inst< MFChild > _children=0, Inst< SFNode > _metadata=0, Inst< SFRotation > _rotation=0, Inst< SFVec3f > _scale=0, Inst< SFRotation > _scaleOrientation=0, Inst< SFVec3f > _translation=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0, Inst< SFTransformedBound > _transformedBound=0, Inst< Matrix > _matrix=0, Inst< SFMatrix4f > _accumulatedForward=0, Inst< SFMatrix4f > _accumulatedInverse=0, Inst< SFString > _name=0) | |
| Constructor. | |
 Public Member Functions inherited from H3D::Transform | |
| Transform (Inst< AddChildren > _addChildren=0, Inst< RemoveChildren > _removeChildren=0, Inst< SFVec3f > _center=0, Inst< MFChild > _children=0, Inst< SFNode > _metadata=0, Inst< SFRotation > _rotation=0, Inst< SFVec3f > _scale=0, Inst< SFRotation > _scaleOrientation=0, Inst< SFVec3f > _translation=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0, Inst< SFTransformedBound > _transformedBound=0, Inst< Matrix > _matrix=0, Inst< SFMatrix4f > _accumulatedForward=0, Inst< SFMatrix4f > _accumulatedInverse=0) | |
| Constructor. | |
| virtual void | render () |
| Render the children. | |
| Public Member Functions inherited from H3D::MatrixTransform | |
| MatrixTransform (Inst< AddChildren > _addChildren=0, Inst< RemoveChildren > _removeChildren=0, Inst< MFChild > _children=0, Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0, Inst< SFTransformedBound > _transformedBound=0, Inst< SFMatrix4f > _matrix=0, Inst< SFMatrix4f > _accumulatedForward=0, Inst< SFMatrix4f > _accumulatedInverse=0) | |
| Constructor. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| Traverse the scenegraph. | |
| void | multiplyGLMatrix () |
| Multiply the currently active OpenGL matrix with the matrix of this node. | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and this Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| Public Member Functions inherited from H3D::X3DGroupingNode | |
| X3DGroupingNode (Inst< AddChildren > _addChildren=0, Inst< RemoveChildren > _removeChildren=0, Inst< MFChild > _children=0, Inst< SFNode > _metadata=0, Inst< SFBound > _bound=0, Inst< SFVec3f > _bboxCenter=0, Inst< SFVec3f > _bboxSize=0) | |
| Constructor. | |
| virtual | ~X3DGroupingNode () |
| Destructor. | |
| virtual void | initialize () |
| Sets up the bound field using the bboxCenter and bboxSize fields. More... | |
| Public Member Functions inherited from H3D::X3DChildNode | |
| X3DChildNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DBoundedObject | |
| H3DBoundedObject (Inst< SFBound > _bound=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
Public Attributes | |
| H3DUniquePtr< SFString > | name |
| The name field contains a name that is used for identifying the object. More... | |
| Public Attributes inherited from H3D::Transform | |
| H3DUniquePtr< SFVec3f > | center |
| The center field specifies a translation offset from the origin of the local coordinate system that the rotation and scaling should occur around. More... | |
| H3DUniquePtr< SFRotation > | rotation |
| The rotation field specifies an arbitrary rotation. More... | |
| H3DUniquePtr< SFVec3f > | scale |
| The scale field specifies a non-uniform scale of the coordinate system. More... | |
| H3DUniquePtr< SFRotation > | scaleOrientation |
| The scaleOrientation specifies a rotation of the coordinate system before the scale (to specify scales in arbitrary orientations). More... | |
| H3DUniquePtr< SFVec3f > | translation |
| Specifies a translation to the coordinate system. More... | |
| Public Attributes inherited from H3D::MatrixTransform | |
| H3DUniquePtr< SFMatrix4f > | matrix |
| The transformation matrix. More... | |
| H3DUniquePtr< SFMatrix4f > | accumulatedForward |
| The accumulated forward transform matrix, i.e. More... | |
| H3DUniquePtr< SFMatrix4f > | accumulatedInverse |
| The accumulated inverse transform matrix, i.e. More... | |
| H3DUniquePtr< SFTransformedBound > | transformedBound |
| This is the same as the bound field, but with the transformation applied to the bound. More... | |
| Public Attributes inherited from H3D::X3DGroupingNode | |
| bool | use_union_bound |
| if true a route will be set up between the bound field of the nodes in children and the bound field of the grouping node. More... | |
| H3DUniquePtr< AddChildren > | addChildren |
| The addChildren event appends nodes to the children field of a grouping node. More... | |
| H3DUniquePtr< RemoveChildren > | removeChildren |
| The removeChildren event removes nodes from the children field of the grouping node . More... | |
| H3DUniquePtr< MFChild > | children |
| The nodes that are grouped together by this node. More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::X3DBoundedObject | |
| H3DUniquePtr< SFVec3f > | bboxCenter |
| Specifies a the center of an axis-aligned bounding box enclosing the node. More... | |
| H3DUniquePtr< SFVec3f > | bboxSize |
| Specifies a the size of an axis-aligned bounding box enclosing the node. More... | |
| Public Attributes inherited from H3D::H3DBoundedObject | |
| H3DUniquePtr< SFBound > | bound |
| The field containing the bound object. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::Transform | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::MatrixTransform | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DGroupingNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
Additional Inherited Members | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::X3DGroupingNode | |
| bool | children_multi_pass_transparency |
| Will be set in traverseSG to indicate if any of the children enables multi-pass transparency. More... | |
| vector< H3DRenderStateObject * > | render_states |
| A vector of all the H3DRenderStatesObject within this X3DGroupingNode. | |
| vector< ClipPlane * > | clip_planes |
| A vector of only ClipPlane children of this X3DGroupingNode. | |
Detailed Description
An HAnimSite node serves three purposes.
The first is to define an "end effecter" location that can be used by an inverse kinematics system. The second is to define an attachment point for accessories such as jewelry and clothing. The third is to define a location for a virtual camera in the reference frame of an HAnimSegment (such as a view "through the eyes" of the humanoid for use in multi-user worlds).
- Note
- This Nodes functionality is not fully implemented.
Examples:
- BoxMan.x3d ( Source )
- Internal routes:
Member Data Documentation
◆ name
| H3DUniquePtr< SFString > H3D::HAnimSite::name |
The name field contains a name that is used for identifying the object.
Access type: inputOutput
Default value: ""
The documentation for this class was generated from the following files:
