Basic NodeVisitor implementation for rendering a scene. More...

Inheritance diagram for osgUtil::CullVisitor:

[legend]

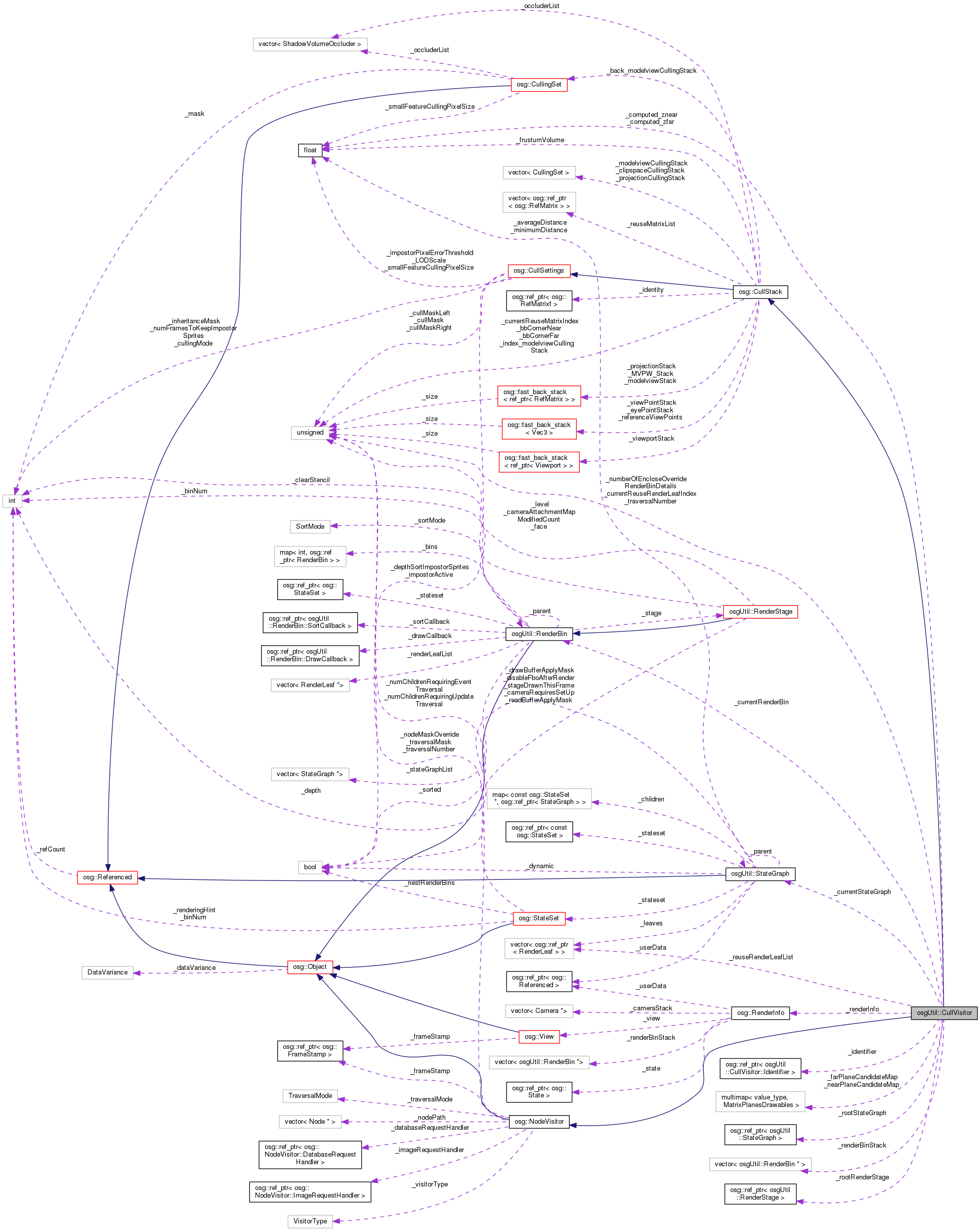

Collaboration diagram for osgUtil::CullVisitor:

[legend]

Classes
struct	Identifier

struct	MatrixPlanesDrawables

Public Types
typedef osg::Matrix::value_type	value_type

Public Types inherited from osg::NodeVisitor
enum	TraversalMode { TRAVERSE_NONE, TRAVERSE_PARENTS, TRAVERSE_ALL_CHILDREN, TRAVERSE_ACTIVE_CHILDREN }

enum	VisitorType { NODE_VISITOR = 0, UPDATE_VISITOR, EVENT_VISITOR, COLLECT_OCCLUDER_VISITOR, CULL_VISITOR, INTERSECTION_VISITOR }

Public Types inherited from osg::Object
enum	DataVariance { DYNAMIC, STATIC, UNSPECIFIED }

Public Types inherited from osg::CullStack
typedef std::vector< ShadowVolumeOccluder >	OccluderList

typedef std::vector< CullingSet >	CullingStack

Public Types inherited from osg::CullSettings
enum	VariablesMask { COMPUTE_NEAR_FAR_MODE = (0x1 << 0), CULLING_MODE = (0x1 << 1), LOD_SCALE = (0x1 << 2), SMALL_FEATURE_CULLING_PIXEL_SIZE = (0x1 << 3), CLAMP_PROJECTION_MATRIX_CALLBACK = (0x1 << 4), NEAR_FAR_RATIO = (0x1 << 5), IMPOSTOR_ACTIVE = (0x1 << 6), DEPTH_SORT_IMPOSTOR_SPRITES = (0x1 << 7), IMPOSTOR_PIXEL_ERROR_THRESHOLD = (0x1 << 8), NUM_FRAMES_TO_KEEP_IMPOSTORS_SPRITES = (0x1 << 9), CULL_MASK = (0x1 << 10), CULL_MASK_LEFT = (0x1 << 11), CULL_MASK_RIGHT = (0x1 << 12), CLEAR_COLOR = (0x1 << 13), CLEAR_MASK = (0x1 << 14), LIGHTING_MODE = (0x1 << 15), LIGHT = (0x1 << 16), DRAW_BUFFER = (0x1 << 17), READ_BUFFER = (0x1 << 18), NO_VARIABLES = 0x00000000, ALL_VARIABLES = 0x7FFFFFFF }

enum	InheritanceMaskActionOnAttributeSetting { DISABLE_ASSOCIATED_INHERITANCE_MASK_BIT, DO_NOT_MODIFY_INHERITANCE_MASK }

enum	ComputeNearFarMode { DO_NOT_COMPUTE_NEAR_FAR = 0, COMPUTE_NEAR_FAR_USING_BOUNDING_VOLUMES, COMPUTE_NEAR_FAR_USING_PRIMITIVES, COMPUTE_NEAR_USING_PRIMITIVES }

enum	CullingModeValues { NO_CULLING = 0x0, VIEW_FRUSTUM_SIDES_CULLING = 0x1, NEAR_PLANE_CULLING = 0x2, FAR_PLANE_CULLING = 0x4, VIEW_FRUSTUM_CULLING, SMALL_FEATURE_CULLING = 0x8, SHADOW_OCCLUSION_CULLING = 0x10, CLUSTER_CULLING = 0x20, DEFAULT_CULLING, ENABLE_ALL_CULLING }

typedef int	InheritanceMask

typedef int	CullingMode

Public Member Functions
	CullVisitor (const CullVisitor &)
	Copy constructor that does a shallow copy.

	META_NodeVisitor (osgUtil, CullVisitor) virtual CullVisitor *clone() const
	Create a shallow copy of the CullVisitor, used by CullVisitor::create() to clone the prototype. More...

virtual void	reset ()
	Method to call to reset visitor. More...

void	setIdentifier (Identifier *identifier)

Identifier *	getIdentifier ()

const Identifier *	getIdentifier () const

virtual osg::Vec3	getEyePoint () const
	Get the eye point in local coordinates. More...

virtual osg::Vec3	getViewPoint () const
	Get the view point in local coordinates. More...

virtual float	getDistanceToEyePoint (const osg::Vec3 &pos, bool withLODScale) const
	Get the distance from a point to the eye point, distance value in local coordinate system. More...

virtual float	getDistanceFromEyePoint (const osg::Vec3 &pos, bool withLODScale) const
	Get the distance of a point from the eye point, distance value in the eye coordinate system. More...

virtual float	getDistanceToViewPoint (const osg::Vec3 &pos, bool withLODScale) const
	Get the distance from a point to the view point, distance value in local coordinate system. More...

virtual void	apply (osg::Node &)

virtual void	apply (osg::Geode &node)

virtual void	apply (osg::Drawable &drawable)

virtual void	apply (osg::Billboard &node)

virtual void	apply (osg::LightSource &node)

virtual void	apply (osg::ClipNode &node)

virtual void	apply (osg::TexGenNode &node)

virtual void	apply (osg::Group &node)

virtual void	apply (osg::Transform &node)

virtual void	apply (osg::Projection &node)

virtual void	apply (osg::Switch &node)

virtual void	apply (osg::LOD &node)

virtual void	apply (osg::ClearNode &node)

virtual void	apply (osg::Camera &node)

virtual void	apply (osg::OccluderNode &node)

virtual void	apply (osg::OcclusionQueryNode &node)

void	pushStateSet (const osg::StateSet *ss)
	Push state set on the current state group. More...

void	popStateSet ()
	Pop the top state set and hence associated state group. More...

void	setStateGraph (StateGraph *rg)

StateGraph *	getRootStateGraph ()

StateGraph *	getCurrentStateGraph ()

void	setRenderStage (RenderStage *rg)

RenderStage *	getRenderStage ()

RenderStage *	getCurrentRenderStage ()

osg::Camera *	getCurrentCamera ()

RenderBin *	getCurrentRenderBin ()

void	setCurrentRenderBin (RenderBin *rb)

void	setCalculatedNearPlane (value_type value)

value_type	getCalculatedNearPlane () const

void	setCalculatedFarPlane (value_type value)

value_type	getCalculatedFarPlane () const

value_type	computeNearestPointInFrustum (const osg::Matrix &matrix, const osg::Polytope::PlaneList &planes, const osg::Drawable &drawable)

value_type	computeFurthestPointInFrustum (const osg::Matrix &matrix, const osg::Polytope::PlaneList &planes, const osg::Drawable &drawable)

bool	updateCalculatedNearFar (const osg::Matrix &matrix, const osg::BoundingBox &bb)

bool	updateCalculatedNearFar (const osg::Matrix &matrix, const osg::Drawable &drawable, bool isBillboard=false)

void	updateCalculatedNearFar (const osg::Vec3 &pos)

void	addDrawable (osg::Drawable drawable, osg::RefMatrix matrix)
	Add a drawable to current render graph. More...

void	addDrawableAndDepth (osg::Drawable drawable, osg::RefMatrix matrix, float depth)
	Add a drawable and depth to current render graph. More...

void	addPositionedAttribute (osg::RefMatrix matrix, const osg::StateAttribute attr)
	Add an attribute which is positioned relative to the modelview matrix. More...

void	addPositionedTextureAttribute (unsigned int textureUnit, osg::RefMatrix matrix, const osg::StateAttribute attr)
	Add an attribute which is positioned relative to the modelview matrix. More...

void	computeNearPlane ()
	compute near plane based on the polgon intersection of primtives in near plane candidate list of drawables. More...

virtual void	popProjectionMatrix ()
	Re-implement CullStack's popProjectionMatrix() adding clamping of the projection matrix to the computed near and far. More...

virtual bool	clampProjectionMatrixImplementation (osg::Matrixf &projection, double &znear, double &zfar) const
	CullVisitor's default clamping of the projection float matrix to computed near and far values. More...

virtual bool	clampProjectionMatrixImplementation (osg::Matrixd &projection, double &znear, double &zfar) const
	CullVisitor's default clamping of the projection double matrix to computed near and far values. More...

bool	clampProjectionMatrix (osg::Matrixf &projection, value_type &znear, value_type &zfar) const
	Clamp the projection float matrix to computed near and far values, use callback if it exists, otherwise use default CullVisitor implementation. More...

bool	clampProjectionMatrix (osg::Matrixd &projection, value_type &znear, value_type &zfar) const
	Clamp the projection double matrix to computed near and far values, use callback if it exists, otherwise use default CullVisitor implementation. More...

void	setState (osg::State *state)

osg::State *	getState ()

const osg::State *	getState () const

void	setRenderInfo (osg::RenderInfo &renderInfo)

osg::RenderInfo &	getRenderInfo ()

const osg::RenderInfo &	getRenderInfo () const

Public Member Functions inherited from osg::NodeVisitor
	NodeVisitor (TraversalMode tm=TRAVERSE_NONE)

	NodeVisitor (VisitorType type, TraversalMode tm=TRAVERSE_NONE)

	NodeVisitor (const NodeVisitor &nv, const osg::CopyOp &copyop=osg::CopyOp::SHALLOW_COPY)

	META_Object (osg, NodeVisitor) virtual NodeVisitor *asNodeVisitor()
	Convert 'this' into a NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual const NodeVisitor *	asNodeVisitor () const
	convert 'const this' into a const NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

void	setVisitorType (VisitorType type)
	Set the VisitorType, used to distinguish different visitors during traversal of the scene, typically used in the Node::traverse() method to select which behaviour to use for different types of traversal/visitors. More...

VisitorType	getVisitorType () const
	Get the VisitorType. More...

void	setTraversalNumber (unsigned int fn)
	Set the traversal number. More...

unsigned int	getTraversalNumber () const
	Get the traversal number. More...

void	setFrameStamp (FrameStamp *fs)
	Set the FrameStamp that this traversal is associated with. More...

const FrameStamp *	getFrameStamp () const
	Get the FrameStamp that this traversal is associated with. More...

void	setTraversalMask (Node::NodeMask mask)
	Set the TraversalMask of this NodeVisitor. More...

Node::NodeMask	getTraversalMask () const
	Get the TraversalMask. More...

void	setNodeMaskOverride (Node::NodeMask mask)
	Set the NodeMaskOverride mask. More...

Node::NodeMask	getNodeMaskOverride () const
	Get the NodeMaskOverride mask. More...

bool	validNodeMask (const osg::Node &node) const
	Method to called by Node and its subclass' Node::accept() method, if the result is true it is used to cull operations of nodes and their subgraphs. More...

void	setTraversalMode (TraversalMode mode)
	Set the traversal mode for Node::traverse() to use when deciding which children of a node to traverse. More...

TraversalMode	getTraversalMode () const
	Get the traversal mode. More...

void	traverse (Node &node)
	Method for handling traversal of a nodes. More...

void	pushOntoNodePath (Node *node)
	Method called by osg::Node::accept() method before a call to the NodeVisitor::apply(..). More...

void	popFromNodePath ()
	Method called by osg::Node::accept() method after a call to NodeVisitor::apply(..). More...

NodePath &	getNodePath ()
	Get the non const NodePath from the top most node applied down to the current Node being visited. More...

const NodePath &	getNodePath () const
	Get the const NodePath from the top most node applied down to the current Node being visited. More...

virtual void	apply (Geometry &geometry)

virtual void	apply (ProxyNode &node)

virtual void	apply (CoordinateSystemNode &node)

virtual void	apply (CameraView &node)

virtual void	apply (MatrixTransform &node)

virtual void	apply (PositionAttitudeTransform &node)

virtual void	apply (Sequence &node)

virtual void	apply (PagedLOD &node)

void	setDatabaseRequestHandler (DatabaseRequestHandler *handler)
	Set the handler for database requests. More...

DatabaseRequestHandler *	getDatabaseRequestHandler ()
	Get the handler for database requests. More...

const DatabaseRequestHandler *	getDatabaseRequestHandler () const
	Get the const handler for database requests. More...

void	setImageRequestHandler (ImageRequestHandler *handler)
	Set the handler for image requests. More...

ImageRequestHandler *	getImageRequestHandler ()
	Get the handler for image requests. More...

const ImageRequestHandler *	getImageRequestHandler () const
	Get the const handler for image requests. More...

Public Member Functions inherited from osg::Object
	Object ()
	Construct an object. More...

	Object (bool threadSafeRefUnref)

	Object (const Object &, const CopyOp &copyop=CopyOp::SHALLOW_COPY)
	Copy constructor, optional CopyOp object can be used to control shallow vs deep copying of dynamic data. More...

virtual Object *	cloneType () const =0
	Clone the type of an object, with Object* return type. More...

virtual Object *	clone (const CopyOp &) const =0
	Clone an object, with Object* return type. More...

virtual bool	isSameKindAs (const Object *) const

virtual const char *	libraryName () const =0
	return the name of the object's library. More...

virtual const char *	className () const =0
	return the name of the object's class type. More...

std::string	getCompoundClassName () const
	return the compound class name that combines the library name and class name. More...

virtual Node *	asNode ()
	Convert 'this' into a Node pointer if Object is a Node, otherwise return 0. More...

virtual const Node *	asNode () const
	convert 'const this' into a const Node pointer if Object is a Node, otherwise return 0. More...

virtual NodeVisitor *	asNodeVisitor ()
	Convert 'this' into a NodeVisitor pointer if Object is a NodeVisitor, otherwise return 0. More...

virtual StateAttribute *	asStateAttribute ()
	Convert 'this' into a StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual const StateAttribute *	asStateAttribute () const
	convert 'const this' into a const StateAttribute pointer if Object is a StateAttribute, otherwise return 0. More...

virtual Uniform *	asUniform ()
	Convert 'this' into a Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual const Uniform *	asUniform () const
	convert 'const this' into a const Uniform pointer if Object is a Uniform, otherwise return 0. More...

virtual void	setThreadSafeRefUnref (bool threadSafe)
	Set whether to use a mutex to ensure ref() and unref() are thread safe. More...

virtual void	setName (const std::string &name)
	Set the name of object using C++ style string. More...

void	setName (const char *name)
	Set the name of object using a C style string. More...

const std::string &	getName () const
	Get the name of object. More...

void	setDataVariance (DataVariance dv)
	Set the data variance of this object. More...

DataVariance	getDataVariance () const
	Get the data variance of this object. More...

virtual void	computeDataVariance ()
	Compute the DataVariance based on an assessment of callback etc. More...

void	setUserDataContainer (osg::UserDataContainer *udc)
	set the UserDataContainer object. More...

template<class T >
void	setUserDataContainer (const ref_ptr< T > &udc)

osg::UserDataContainer *	getUserDataContainer ()
	get the UserDataContainer attached to this object. More...

const osg::UserDataContainer *	getUserDataContainer () const
	get the const UserDataContainer attached to this object. More...

osg::UserDataContainer *	getOrCreateUserDataContainer ()
	Convenience method that returns the UserDataContainer, and if one doesn't already exist creates and assigns a DefaultUserDataContainer to the Object and then return this new UserDataContainer. More...

virtual void	setUserData (Referenced *obj)
	Set user data, data must be subclassed from Referenced to allow automatic memory handling. More...

template<class T >
void	setUserData (const ref_ptr< T > &ud)

virtual Referenced *	getUserData ()
	Get user data. More...

virtual const Referenced *	getUserData () const
	Get const user data. More...

template<typename T >
bool	getUserValue (const std::string &name, T &value) const
	Convenience method that casts the named UserObject to osg::TemplateValueObject<T> and gets the value. More...

template<typename T >
void	setUserValue (const std::string &name, const T &value)
	Convenience method that creates the osg::TemplateValueObject<T> to store the specified value and adds it as a named UserObject. More...

virtual void	resizeGLObjectBuffers (unsigned int)
	Resize any per context GLObject buffers to specified size. More...

virtual void	releaseGLObjects (osg::State *=0) const
	If State is non-zero, this function releases any associated OpenGL objects for the specified graphics context. More...

template<typename T >
BoolValueObject UCharValueObject UShortValueObject UIntValueObject DoubleValueObject Vec3fValueObject Vec2dValueObject Vec4dValueObject PlaneValueObject MatrixdValueObject BoundingBoxdValueObject BoundingSpheredValueObject bool	getUserValue (const std::string &name, T &value) const
	provide implementation of osg::Object::getUserValue(..) template

Public Member Functions inherited from osg::Referenced
	Referenced (bool threadSafeRefUnref)

	Referenced (const Referenced &)

Referenced &	operator= (const Referenced &)

bool	getThreadSafeRefUnref () const
	Get whether a mutex is used to ensure ref() and unref() are thread safe. More...

bool	getThreadSafeRefUnref () const

OpenThreads::Mutex *	getRefMutex () const
	Get the mutex used to ensure thread safety of ref()/unref(). More...

OpenThreads::Mutex *	getRefMutex () const

int	ref () const
	Increment the reference count by one, indicating that this object has another pointer which is referencing it. More...

int	unref () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	unref_nodelete () const
	Decrement the reference count by one, indicating that a pointer to this object is no longer referencing it. More...

int	referenceCount () const
	Return the number of pointers currently referencing this object. More...

ObserverSet *	getObserverSet () const
	Get the ObserverSet if one is attached, otherwise return NULL. More...

ObserverSet *	getOrCreateObserverSet () const
	Get the ObserverSet if one is attached, otherwise create an ObserverSet, attach it, then return this newly created ObserverSet. More...

void	addObserver (Observer *observer) const
	Add a Observer that is observing this object, notify the Observer when this object gets deleted. More...

void	removeObserver (Observer *observer) const
	Remove Observer that is observing this object. More...

Public Member Functions inherited from osg::CullStack
	CullStack (const CullStack &cs)

void	reset ()

void	pushCullingSet ()

void	popCullingSet ()

void	setOccluderList (const ShadowVolumeOccluderList &svol)

ShadowVolumeOccluderList &	getOccluderList ()

const ShadowVolumeOccluderList &	getOccluderList () const

void	pushViewport (osg::Viewport *viewport)

void	popViewport ()

void	pushProjectionMatrix (osg::RefMatrix *matrix)

void	popProjectionMatrix ()

void	pushModelViewMatrix (osg::RefMatrix *matrix, Transform::ReferenceFrame referenceFrame)

void	popModelViewMatrix ()

float	getFrustumVolume ()

float	pixelSize (const Vec3 &v, float radius) const
	Compute the pixel size of an object at position v, with specified radius. More...

float	pixelSize (const BoundingSphere &bs) const
	Compute the pixel size of the bounding sphere. More...

float	clampedPixelSize (const Vec3 &v, float radius) const
	Compute the pixel size of an object at position v, with specified radius. More...

float	clampedPixelSize (const BoundingSphere &bs) const
	Compute the pixel size of the bounding sphere. More...

void	disableAndPushOccludersCurrentMask (NodePath &nodePath)

void	popOccludersCurrentMask (NodePath &nodePath)

bool	isCulled (const std::vector< Vec3 > &vertices)

bool	isCulled (const BoundingBox &bb)

bool	isCulled (const BoundingSphere &bs)

bool	isCulled (const osg::Node &node)

void	pushCurrentMask ()

void	popCurrentMask ()

CullingStack &	getClipSpaceCullingStack ()

CullingStack &	getProjectionCullingStack ()

CullingStack &	getModelViewCullingStack ()

CullingSet &	getCurrentCullingSet ()

const CullingSet &	getCurrentCullingSet () const

osg::Viewport *	getViewport ()

osg::RefMatrix *	getModelViewMatrix ()

osg::RefMatrix *	getProjectionMatrix ()

osg::Matrix	getWindowMatrix ()

const osg::RefMatrix *	getMVPW ()

const osg::Vec3 &	getReferenceViewPoint () const

void	pushReferenceViewPoint (const osg::Vec3 &viewPoint)

void	popReferenceViewPoint ()

const osg::Vec3 &	getEyeLocal () const

const osg::Vec3 &	getViewPointLocal () const

const osg::Vec3	getUpLocal () const

const osg::Vec3	getLookVectorLocal () const

Public Member Functions inherited from osg::CullSettings
	CullSettings (ArgumentParser &arguments)

	CullSettings (const CullSettings &cs)

CullSettings &	operator= (const CullSettings &settings)

virtual void	setDefaults ()

void	setInheritanceMask (InheritanceMask mask)
	Set the inheritance mask used in inheritCullSettings to control which variables get overwritten by the passed in CullSettings object. More...

InheritanceMask	getInheritanceMask () const
	Get the inheritance mask used in inheritCullSettings to control which variables get overwritten by the passed in CullSettings object. More...

void	setCullSettings (const CullSettings &settings)
	Set the local cull settings values from specified CullSettings object. More...

virtual void	inheritCullSettings (const CullSettings &settings)
	Inherit the local cull settings variable from specified CullSettings object, according to the inheritance mask. More...

virtual void	inheritCullSettings (const CullSettings &settings, unsigned int inheritanceMask)
	Inherit the local cull settings variable from specified CullSettings object, according to the inheritance mask. More...

void	readEnvironmentalVariables ()
	read the environmental variables. More...

void	readCommandLine (ArgumentParser &arguments)
	read the commandline arguments. More...

void	setInheritanceMaskActionOnAttributeSetting (InheritanceMaskActionOnAttributeSetting action)

InheritanceMaskActionOnAttributeSetting	getInheritanceMaskActionOnAttributeSetting () const

void	applyMaskAction (unsigned int maskBit)
	Apply the action, specified by the InheritanceMaskActionOnAttributeSetting, to apply to the inheritance bit mask. More...

void	setImpostorsActive (bool active)
	Switch the creation of Impostors on or off. More...

bool	getImpostorsActive () const
	Get whether impostors are active or not. More...

void	setImpostorPixelErrorThreshold (float numPixels)
	Set the impostor error threshold. More...

float	getImpostorPixelErrorThreshold () const
	Get the impostor error threshold. More...

void	setDepthSortImpostorSprites (bool doDepthSort)
	Set whether ImpostorSprite's should be placed in a depth sorted bin for rendering. More...

bool	getDepthSortImpostorSprites () const
	Get whether ImpostorSprite's are depth sorted bin for rendering. More...

void	setNumberOfFrameToKeepImpostorSprites (int numFrames)
	Set the number of frames that an ImpostorSprite is kept whilst not being beyond, before being recycled. More...

int	getNumberOfFrameToKeepImpostorSprites () const
	Get the number of frames that an ImpostorSprite is kept whilst not being beyond, before being recycled. More...

void	setComputeNearFarMode (ComputeNearFarMode cnfm)

ComputeNearFarMode	getComputeNearFarMode () const

void	setNearFarRatio (double ratio)

double	getNearFarRatio () const

void	setCullingMode (CullingMode mode)
	Set the culling mode for the CullVisitor to use. More...

CullingMode	getCullingMode () const
	Returns the current CullingMode. More...

void	setCullMask (osg::Node::NodeMask nm)

osg::Node::NodeMask	getCullMask () const

void	setCullMaskLeft (osg::Node::NodeMask nm)

osg::Node::NodeMask	getCullMaskLeft () const

void	setCullMaskRight (osg::Node::NodeMask nm)

osg::Node::NodeMask	getCullMaskRight () const

void	setLODScale (float scale)
	Set the LOD bias for the CullVisitor to use. More...

float	getLODScale () const
	Get the LOD bias. More...

void	setSmallFeatureCullingPixelSize (float value)
	Threshold at which small features are culled. More...

float	getSmallFeatureCullingPixelSize () const
	Get the Small Feature Culling Pixel Size. More...

void	setClampProjectionMatrixCallback (ClampProjectionMatrixCallback *cpmc)
	set the ClampProjectionMatrixCallback. More...

ClampProjectionMatrixCallback *	getClampProjectionMatrixCallback ()
	get the non const ClampProjectionMatrixCallback. More...

const ClampProjectionMatrixCallback *	getClampProjectionMatrixCallback () const
	get the const ClampProjectionMatrixCallback. More...

void	write (std::ostream &out)
	Write out internal settings of CullSettings. More...

Static Public Member Functions
static osg::ref_ptr< CullVisitor > &	prototype ()
	get the prototype singleton used by CullVisitor::create(). More...

static CullVisitor *	create ()
	create a CullVisitor by cloning CullVisitor::prototype(). More...

Static Public Member Functions inherited from osg::Referenced
static OpenThreads::Mutex *	getGlobalReferencedMutex ()
	Get the optional global Referenced mutex, this can be shared between all osg::Referenced. More...

static void	setThreadSafeReferenceCounting (bool enableThreadSafeReferenceCounting)
	Set whether reference counting should use a mutex for thread safe reference counting. More...

static bool	getThreadSafeReferenceCounting ()
	Get whether reference counting is active. More...

static void	setDeleteHandler (DeleteHandler *handler)
	Set a DeleteHandler to which deletion of all referenced counted objects will be delegated. More...

static DeleteHandler *	getDeleteHandler ()
	Get a DeleteHandler. More...

Protected Types
typedef std::vector< osg::ref_ptr< RenderLeaf > >	RenderLeafList

typedef std::multimap< value_type, MatrixPlanesDrawables >	DistanceMatrixDrawableMap

Protected Types inherited from osg::CullStack
typedef fast_back_stack< ref_ptr< RefMatrix > >	MatrixStack

typedef fast_back_stack< ref_ptr< Viewport > >	ViewportStack

typedef fast_back_stack< Vec3 >	EyePointStack

typedef std::vector< osg::ref_ptr< osg::RefMatrix > >	MatrixList

Protected Member Functions
CullVisitor &	operator= (const CullVisitor &)
	Prevent unwanted copy operator. More...

void	handle_cull_callbacks_and_traverse (osg::Node &node)

void	handle_cull_callbacks_and_accept (osg::Node &node, osg::Node *acceptNode)

RenderLeaf *	createOrReuseRenderLeaf (osg::Drawable drawable, osg::RefMatrix projection, osg::RefMatrix *matrix, float depth=0.0f)

Protected Member Functions inherited from osg::Object
virtual	~Object ()
	Object destructor. More...

Protected Member Functions inherited from osg::Referenced
void	signalObserversAndDelete (bool signalDelete, bool doDelete) const

void	deleteUsingDeleteHandler () const

Protected Member Functions inherited from osg::CullStack
void	computeFrustumVolume ()

osg::RefMatrix *	createOrReuseMatrix (const osg::Matrix &value)

Protected Attributes
osg::ref_ptr< StateGraph >	_rootStateGraph

StateGraph *	_currentStateGraph

osg::ref_ptr< RenderStage >	_rootRenderStage

RenderBin *	_currentRenderBin

std::vector< RenderBin * >	_renderBinStack

unsigned int	_traversalNumber

value_type	_computed_znear

value_type	_computed_zfar

RenderLeafList	_reuseRenderLeafList

unsigned int	_currentReuseRenderLeafIndex

unsigned int	_numberOfEncloseOverrideRenderBinDetails

osg::RenderInfo	_renderInfo

DistanceMatrixDrawableMap	_nearPlaneCandidateMap

DistanceMatrixDrawableMap	_farPlaneCandidateMap

osg::ref_ptr< Identifier >	_identifier

Protected Attributes inherited from osg::NodeVisitor
VisitorType	_visitorType

unsigned int	_traversalNumber

ref_ptr< FrameStamp >	_frameStamp

TraversalMode	_traversalMode

Node::NodeMask	_traversalMask

Node::NodeMask	_nodeMaskOverride

NodePath	_nodePath

ref_ptr< DatabaseRequestHandler >	_databaseRequestHandler

ref_ptr< ImageRequestHandler >	_imageRequestHandler

Protected Attributes inherited from osg::Object
std::string	_name

DataVariance	_dataVariance

osg::UserDataContainer *	_userDataContainer

Protected Attributes inherited from osg::Referenced
OpenThreads::AtomicPtr	_observerSet

OpenThreads::Atomic	_refCount

OpenThreads::Mutex *	_refMutex

int	_refCount

void *	_observerSet

Protected Attributes inherited from osg::CullStack
ShadowVolumeOccluderList	_occluderList

MatrixStack	_projectionStack

MatrixStack	_modelviewStack

MatrixStack	_MVPW_Stack

ViewportStack	_viewportStack

EyePointStack	_referenceViewPoints

EyePointStack	_eyePointStack

EyePointStack	_viewPointStack

CullingStack	_clipspaceCullingStack

CullingStack	_projectionCullingStack

CullingStack	_modelviewCullingStack

unsigned int	_index_modelviewCullingStack

CullingSet *	_back_modelviewCullingStack

float	_frustumVolume

unsigned int	_bbCornerNear

unsigned int	_bbCornerFar

ref_ptr< osg::RefMatrix >	_identity

MatrixList	_reuseMatrixList

unsigned int	_currentReuseMatrixIndex

Protected Attributes inherited from osg::CullSettings
InheritanceMask	_inheritanceMask

InheritanceMaskActionOnAttributeSetting	_inheritanceMaskActionOnAttributeSetting

ComputeNearFarMode	_computeNearFar

CullingMode	_cullingMode

float	_LODScale

float	_smallFeatureCullingPixelSize

ref_ptr< ClampProjectionMatrixCallback >	_clampProjectionMatrixCallback

double	_nearFarRatio

bool	_impostorActive

bool	_depthSortImpostorSprites

float	_impostorPixelErrorThreshold

int	_numFramesToKeepImpostorSprites

Node::NodeMask	_cullMask

Node::NodeMask	_cullMaskLeft

Node::NodeMask	_cullMaskRight

Detailed Description

Basic NodeVisitor implementation for rendering a scene.

This visitor traverses the scene graph, collecting transparent and opaque osg::Drawables into a depth sorted transparent bin and a state sorted opaque bin. The opaque bin is rendered first, and then the transparent bin is rendered in order from the furthest osg::Drawable from the eye to the one nearest the eye.

Member Function Documentation

◆ addDrawable()

void osgUtil::CullVisitor::addDrawable	(	osg::Drawable *	drawable,
		osg::RefMatrix *	matrix
	)

inline

Add a drawable to current render graph.

◆ addDrawableAndDepth()

void osgUtil::CullVisitor::addDrawableAndDepth	(	osg::Drawable *	drawable,
		osg::RefMatrix *	matrix,
		float	depth
	)

inline

Add a drawable and depth to current render graph.

◆ addPositionedAttribute()

void osgUtil::CullVisitor::addPositionedAttribute	(	osg::RefMatrix *	matrix,
		const osg::StateAttribute *	attr
	)

inline

Add an attribute which is positioned relative to the modelview matrix.

◆ addPositionedTextureAttribute()

void osgUtil::CullVisitor::addPositionedTextureAttribute	(	unsigned int	textureUnit,
		osg::RefMatrix *	matrix,
		const osg::StateAttribute *	attr
	)

inline

Add an attribute which is positioned relative to the modelview matrix.

◆ clampProjectionMatrix() [1/2]

bool osgUtil::CullVisitor::clampProjectionMatrix	(	osg::Matrixf &	projection,
		value_type &	znear,
		value_type &	zfar
	)		const

inline

Clamp the projection float matrix to computed near and far values, use callback if it exists, otherwise use default CullVisitor implementation.

◆ clampProjectionMatrix() [2/2]

bool osgUtil::CullVisitor::clampProjectionMatrix	(	osg::Matrixd &	projection,
		value_type &	znear,
		value_type &	zfar
	)		const

inline

Clamp the projection double matrix to computed near and far values, use callback if it exists, otherwise use default CullVisitor implementation.

◆ clampProjectionMatrixImplementation() [1/2]

virtual bool osgUtil::CullVisitor::clampProjectionMatrixImplementation	(	osg::Matrixf &	projection,
		double &	znear,
		double &	zfar
	)		const

virtual

CullVisitor's default clamping of the projection float matrix to computed near and far values.

Note, do not call this method directly, use clampProjectionMatrix(..) instead, unless you want to bypass the callback.

◆ clampProjectionMatrixImplementation() [2/2]

virtual bool osgUtil::CullVisitor::clampProjectionMatrixImplementation	(	osg::Matrixd &	projection,
		double &	znear,
		double &	zfar
	)		const

virtual

CullVisitor's default clamping of the projection double matrix to computed near and far values.

Note, do not call this method directly, use clampProjectionMatrix(..) instead, unless you want to bypass the callback.

◆ computeNearPlane()

void osgUtil::CullVisitor::computeNearPlane ( )

compute near plane based on the polgon intersection of primtives in near plane candidate list of drawables.

Note, you have to set ComputeNearFarMode to COMPUTE_NEAR_FAR_USING_PRIMITIVES to be able to near plane candidate drawables to be recorded by the cull traversal.

◆ create()

static CullVisitor* osgUtil::CullVisitor::create ( )

static

create a CullVisitor by cloning CullVisitor::prototype().

◆ getDistanceFromEyePoint()

virtual float osgUtil::CullVisitor::getDistanceFromEyePoint	(	const osg::Vec3 &	,
		bool
	)		const

virtual

Get the distance of a point from the eye point, distance value in the eye coordinate system.

Note, not all NodeVisitor implement this method, it is mainly cull visitors which will implement. If the getDistanceFromEyePoint(pos) is not implemented than a default value of 0.0 is returned.

Reimplemented from osg::NodeVisitor.

◆ getDistanceToEyePoint()

virtual float osgUtil::CullVisitor::getDistanceToEyePoint	(	const osg::Vec3 &	,
		bool
	)		const

virtual

Get the distance from a point to the eye point, distance value in local coordinate system.

Note, not all NodeVisitor implement this method, it is mainly cull visitors which will implement. If the getDistanceFromEyePoint(pos) is not implemented then a default value of 0.0 is returned.

Reimplemented from osg::NodeVisitor.

◆ getDistanceToViewPoint()

virtual float osgUtil::CullVisitor::getDistanceToViewPoint	(	const osg::Vec3 &	,
		bool
	)		const

virtual

Get the distance from a point to the view point, distance value in local coordinate system.

Note, not all NodeVisitor implement this method, it is mainly cull visitors which will implement. If the getDistanceToViewPoint(pos) is not implemented then a default value of 0.0 is returned.

Reimplemented from osg::NodeVisitor.

◆ getEyePoint()

virtual osg::Vec3 osgUtil::CullVisitor::getEyePoint ( ) const

inlinevirtual

Get the eye point in local coordinates.

Note, not all NodeVisitor implement this method, it is mainly cull visitors which will implement.

Reimplemented from osg::NodeVisitor.

◆ getViewPoint()

virtual osg::Vec3 osgUtil::CullVisitor::getViewPoint ( ) const

inlinevirtual

Get the view point in local coordinates.

Note, not all NodeVisitor implement this method, it is mainly cull visitors which will implement.

Reimplemented from osg::NodeVisitor.

◆ META_NodeVisitor()

osgUtil::CullVisitor::META_NodeVisitor	(	osgUtil	,
		CullVisitor
	)		const

inline

Create a shallow copy of the CullVisitor, used by CullVisitor::create() to clone the prototype.

◆ operator=()

CullVisitor& osgUtil::CullVisitor::operator= ( const CullVisitor & )

inlineprotected

Prevent unwanted copy operator.

◆ popProjectionMatrix()

virtual void osgUtil::CullVisitor::popProjectionMatrix ( )

virtual

Re-implement CullStack's popProjectionMatrix() adding clamping of the projection matrix to the computed near and far.

◆ popStateSet()

void osgUtil::CullVisitor::popStateSet ( )

inline

Pop the top state set and hence associated state group.

Move the current state group to the parent of the popped state group.

◆ prototype()

static osg::ref_ptr<CullVisitor>& osgUtil::CullVisitor::prototype ( )

static

get the prototype singleton used by CullVisitor::create().

◆ pushStateSet()

void osgUtil::CullVisitor::pushStateSet ( const osg::StateSet * ss )

inline

Push state set on the current state group.

If the state exists in a child state group of the current state group then move the current state group to that child. Otherwise, create a new state group for the state set, add it to the current state group then move the current state group pointer to the new state group.

◆ reset()

virtual void osgUtil::CullVisitor::reset ( )

virtual

Method to call to reset visitor.

Useful if your visitor accumulates state during a traversal, and you plan to reuse the visitor. To flush that state for the next traversal: call reset() prior to each traversal.

Reimplemented from osg::NodeVisitor.

The documentation for this class was generated from the following file:

/home/karlu20/private/installs/OpenSceneGraph/include/osgUtil/CullVisitor

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Function Documentation

◆ addDrawable()

◆ addDrawableAndDepth()

◆ addPositionedAttribute()

◆ addPositionedTextureAttribute()

◆ clampProjectionMatrix() [1/2]

◆ clampProjectionMatrix() [2/2]

◆ clampProjectionMatrixImplementation() [1/2]

◆ clampProjectionMatrixImplementation() [2/2]

◆ computeNearPlane()

◆ create()

◆ getDistanceFromEyePoint()

◆ getDistanceToEyePoint()

◆ getDistanceToViewPoint()

◆ getEyePoint()

◆ getViewPoint()

◆ META_NodeVisitor()

◆ operator=()

◆ popProjectionMatrix()

◆ popStateSet()

◆ prototype()

◆ pushStateSet()

◆ reset()
