The EnvironmentMapShader node defines a shader for environment mapping of shiny objects. More...
#include <H3D/EnvironmentMapShader.h>

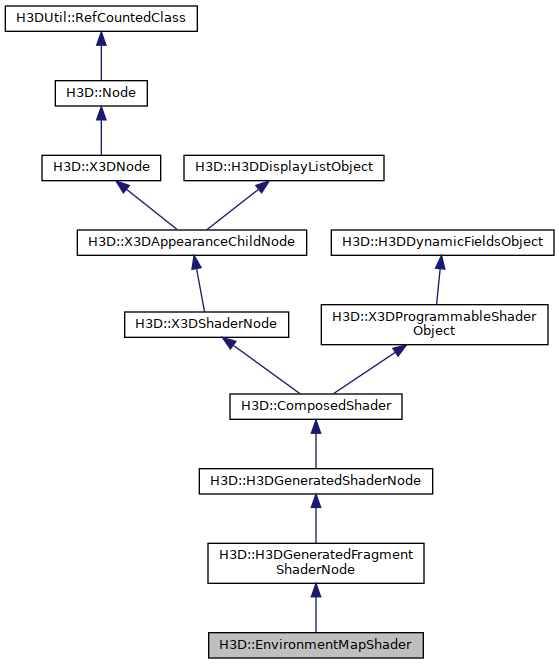

Inheritance diagram for H3D::EnvironmentMapShader:
Public Types | |
| typedef DependentSFNode< X3DEnvironmentTextureNode, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true > | SFEnvironmentTextureNode |
| The SFEnvironmentTextureNode field is dependent on the displayList field of the containing X3DEnvironmentTextureNode node. | |
 Public Types inherited from H3D::ComposedShader | |
| typedef DependentSFNode< ShaderConstants, FieldRef< H3DDisplayListObject, H3DDisplayListObject::DisplayList, &H3DDisplayListObject::displayList >, true > | SFShaderConstantsBase |
| The SFShaderConstants field is dependent on the displayList field of the containing ShaderConstants node. | |
| typedef DependentMFNode< ShaderPart, FieldRef< ShaderPart, ShaderPart::SFShaderString, &ShaderPart::shaderString >, true > | MFShaderPartBase |
| The MFShaderPartBase is dependent on the url field of the containing ShaderPart node. | |
| Public Types inherited from H3D::Node | |
| typedef std::map< Node *, Node * > | DeepCopyMap |
| A map type used during a deep copy clone() to map from original nodes to cloned nodes. | |
Public Member Functions | |
| EnvironmentMapShader (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< MFString > _fragmentShaderString=0, Inst< MFString > _vertexShaderString=0, Inst< SFEnvironmentTextureNode > _environmentMap=0, Inst< SFFloat > _fresnel=0, Inst< SFString > _type=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::H3DGeneratedFragmentShaderNode | |
| H3DGeneratedFragmentShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< MFString > _fragmentShaderString=0, Inst< MFString > _vertexShaderString=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::H3DGeneratedShaderNode | |
| H3DGeneratedShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< MFString > _fragmentShaderString=0, Inst< MFString > _vertexShaderString=0) | |
| Constructor. | |
| virtual void | buildShader () |
| Rebuilds the generated shader, causing a full rebuild and relink of the shader. | |
| virtual void | preRender () |
| The preRender method is extended to make sure that the shader is up to date before rendering. | |
| virtual string | getFunctionShaderString () |
| Get a string with GLSL function definitions to be used by the generated shader. | |
| virtual void | getAttributes (vector< Attribute > &) |
| Get the attribues used by the shader generator. More... | |
| virtual string | getFinalFragmentShaderOutputString () |
| Returns the string that is the last thing that is done in the fragment shader. More... | |
| virtual string | getVertexShaderString () |
| Returns the shader code for the vertex shader. More... | |
| virtual string | uniqueShaderName (const string &base_name) |
| The uniqueShaderName function is used to generate a name unique for this instance of the shader generator node class. More... | |
| virtual string | getFragmentShaderHeader () |
| Return a string that is placed at the beginning of a fragment shader to specify minimum required version of the shader as well as enabled extensions. | |
| virtual string | getVertexShaderHeader () |
| Return a string that is placed at the beginning of a vertex shader to specify minimum required version of the shader as well as enabled extensions. | |
| Public Member Functions inherited from H3D::ComposedShader | |
| ComposedShader (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0, Inst< MFShaderPart > _parts=0, Inst< SFBool > _suppressUniformWarnings=0, Inst< SFString > _geometryInputType=0, Inst< SFString > _geometryOutputType=0, Inst< SFInt32 > _geometryVerticesOut=0, Inst< SFString > _transparencyDetectMode=0, Inst< MFString > _transformFeedbackVaryings=0, Inst< SFBool > _printShaderWarnings=0, Inst< SFShaderConstants > _shaderConstants=0) | |
| Constructor. | |
| virtual | ~ComposedShader () |
| Destructor. | |
| virtual bool | addField (const string &_name, const Field::AccessType &access, Field *field) |
| The addField method is specialized to add a route from the field added to the displayList field. | |
| virtual bool | removeField (const string &_name) |
| The removeField method is specialized to remove the route from the field to the displayList field. | |
| virtual void | traverseSG (TraverseInfo &ti) |
| Traverse the node. More... | |
| virtual void | render () |
| Sets up the shader program and sets uniform variable values. | |
| virtual void | postRender () |
| Disables the shader program. | |
| virtual GLbitfield | getAffectedGLAttribs () |
| Returns a bitmask of the OpenGL attrib bits that will be affected by this node. More... | |
| virtual bool | isTransparent (X3DMaterialNode *material) |
| Returns a hint if the X3DShaderNode produces an alpha channel that is < 1, i.e. More... | |
| GLhandleARB | getProgramHandle () |
| Returns the OpenGL shader program handle used by the ComposedShader. | |
| Public Member Functions inherited from H3D::X3DShaderNode | |
| X3DShaderNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0, Inst< SFBool > _isSelected=0, Inst< SFBool > _isValid=0, Inst< SFBool > _activate=0, Inst< SFString > _language=0) | |
| Constructor. | |
| virtual bool | isSupported () |
| Returns true if the shader node type is supported by the browser. More... | |
| void | setSelected (bool selected) |
| Set the isSelected field. | |
| virtual string | defaultXMLContainerField () |
| Returns the default xml containerField attribute value. More... | |
| Public Member Functions inherited from H3D::X3DAppearanceChildNode | |
| X3DAppearanceChildNode (Inst< DisplayList > _displayList=0, Inst< SFNode > _metadata=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DNode | |
| X3DNode (Inst< SFNode > _metadata=0) | |
| Constructor. | |
| X3DMetadataObject * | getMetadataByName (const string &_name) |
| Given a name, the first X3DMetadataObject in the metadata field that matches that name is returned. More... | |
| Public Member Functions inherited from H3D::Node | |
| Node () | |
| Constructor. | |
| virtual Node * | clone (bool deepCopy=true, DeepCopyMap *deepCopyMap=NULL) |
| Returns a new instance of this node type with the same state as this one. More... | |
| virtual | ~Node () |
| Destructor. | |
| X3DPrototypeInstance * | getProtoInstanceParent () |
| If this node is the root node in the proto body of a X3DPrototypeInstance then this will return that node. More... | |
| void | setProtoInstanceParent (X3DPrototypeInstance *p) |
| Set the X3DPrototypeInstance this node is the the root node if applicaple. | |
| virtual bool | lineIntersect (const Vec3f &from, const Vec3f &to, LineIntersectResult &result) |
| Detect intersection between a line segment and the Node. More... | |
| virtual void | closestPoint (const Vec3f &p, NodeIntersectResult &result) |
| Find closest point on Node to p. More... | |
| virtual bool | movingSphereIntersect (H3DFloat radius, const Vec3f &from, const Vec3f &to, NodeIntersectResult &result) |
| Detect collision between a moving sphere and the Node. More... | |
| virtual Field * | getField (const string &_name) const |
| return a pointer to the field specified by name within this instance | |
| int | addDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| int | removeDestructCallback (void(*func)(Node *, void *), void *args) |
| Add a callback function to be run on destruction of node. More... | |
| Public Member Functions inherited from H3D::H3DDisplayListObject | |
| H3DDisplayListObject (Inst< DisplayList > _displayList=0) | |
| Constructor. | |
| Public Member Functions inherited from H3D::X3DProgrammableShaderObject | |
| X3DProgrammableShaderObject (H3DNodeDatabase *_database) | |
| Constructor. | |
| virtual void | clearFields () |
| Remove all dynamic fields that have been previously added. | |
| virtual | ~X3DProgrammableShaderObject () |
| Destructor. | |
| Public Member Functions inherited from H3D::H3DDynamicFieldsObject | |
| field_iterator | firstField () |
| Get an iterator to the first of the dynamic fields. | |
| field_iterator | endField () |
| Get an iterator pointing to the end of the dynamic fields. | |
| H3DDynamicFieldsObject () | |
| Constructor. | |
Public Attributes | |
| H3DUniquePtr< SFEnvironmentTextureNode > | environmentMap |
| Contains the X3DEnvironmentTextureNode to use for environment mapping. More... | |
| H3DUniquePtr< SFFloat > | fresnel |
| The fresnel field specifies if the fresnel effect should be used in the reflection model and if so how much. More... | |
| H3DUniquePtr< SFString > | type |
| The type field determines how to lookup into the environment map. More... | |
| Public Attributes inherited from H3D::H3DGeneratedShaderNode | |
| H3DUniquePtr< MFString > | fragmentShaderString |
| Contains the generated fragment shader code. More... | |
| H3DUniquePtr< MFString > | vertexShaderString |
| Contains the generated vertex shader code. More... | |
| H3DUniquePtr< RebuildShader > | rebuildShader |
| Field used to update the shader code when an event is received. More... | |
| Public Attributes inherited from H3D::ComposedShader | |
| H3DUniquePtr< SFShaderConstants > | shaderConstants |
| The shaderConstants field can contain a ShaderConstants node defining constants that can be used by all ShaderPart instances in the ComposedShader node. More... | |
| H3DUniquePtr< MFShaderPart > | parts |
| The shader parts to use in the ComposedShader. More... | |
| H3DUniquePtr< SFBool > | suppressUniformWarnings |
| Suppress the warnings printed to the console about setting uniform fields that do not exist in the shader. More... | |
| H3DUniquePtr< SFString > | geometryInputType |
| The input geometry type of the geometry being rendered with a geometry shader. More... | |
| H3DUniquePtr< SFString > | geometryOutputType |
| The output geometry type of the geometry being rendered with a geometry shader. More... | |
| H3DUniquePtr< SFInt32 > | geometryVerticesOut |
| The number of vertices the geometry shader generates. More... | |
| H3DUniquePtr< SFString > | transparencyDetectMode |
| Determines how the render system will determine if the shader used generates any fragment that has an alpha channel that is < 1, i.e. More... | |
| H3DUniquePtr< MFString > | transformFeedbackVaryings |
| List of varying names to capture during transform feedback. More... | |
| H3DUniquePtr< SFBool > | printShaderWarnings |
| Always print shader warnings to console. More... | |
| Public Attributes inherited from H3D::X3DShaderNode | |
| H3DUniquePtr< SFBool > | isSelected |
| The isSelected output field is used to indicate that this shader instance is the one selected for use by the browser. More... | |
| H3DUniquePtr< SFBool > | isValid |
| The isValid field is used to indicate whether the current shader objects can be run as a shader program. More... | |
| H3DUniquePtr< SFBool > | activate |
| The activate field forces the shader to activate the contained objects. More... | |
| H3DUniquePtr< EventCollectingField< Field > > | activateMonitor |
| field used to monitor if activate field is modified | |
| H3DUniquePtr< SFString > | language |
| The language field is used to indicate to the browser which shading language is used for the source file(s). More... | |
| Public Attributes inherited from H3D::X3DNode | |
| H3DUniquePtr< SFNode > | metadata |
| Meta data about the node. More... | |
| Public Attributes inherited from H3D::H3DDisplayListObject | |
| H3DUniquePtr< DisplayList > | displayList |
| The DisplayList instance handling the OpenGL caching of this object. | |
Static Public Attributes | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::H3DGeneratedFragmentShaderNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::H3DGeneratedShaderNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::ComposedShader | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DShaderNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DNode | |
| static H3DNodeDatabase | database |
| The H3DNodeDatabase for this node. | |
| Static Public Attributes inherited from H3D::X3DProgrammableShaderObject | |
| static bool | use_bindless_textures = false |
| True if we should use bindless textures. | |
Protected Member Functions | |
| virtual string | addUniformFields (ComposedShader *shader) |
| Adds uniform fields to the shader. More... | |
| virtual void | getVaryingVariables (vector< VaryingVariable > &variables) |
| Get the varying variables used by the shader generator. | |
| virtual string | getFragmentShaderString () |
| Returns the shader code for the fragment shader. | |
| Protected Member Functions inherited from H3D::ComposedShader | |
| void | setGeometryShaderParameters (GLenum _program_handle) |
| Sets geometry shader paramters based on fields. | |
| Protected Member Functions inherited from H3D::Node | |
| void | cloneFieldValue (Field &_from, Field &_to, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for the clone() method. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from H3D::H3DGeneratedShaderNode | |
| static string | addUniformToFragmentShader (ComposedShader *shader, const string &name, const string &glsl_type, const Field::AccessType &access, Field *field, int array_size=-1, bool delete_unadded_field=true) |
| Convenience function to add field in addUniformFields function to add uniform to fragment shader. More... | |
| Static Public Member Functions inherited from H3D::X3DShaderNode | |
| static X3DShaderNode * | getActiveShader () |
| Gets the currently active shader, i.e. More... | |
| Static Public Member Functions inherited from H3D::Node | |
| static unsigned int | nrNodesAlive () |
| Returns the nr of nodes currently alive, i.e. nodes created but not destructed. | |
| static int | nrNodesCreated () |
| Returns the number of nodes created in total since the start of the program. | |
| Static Protected Member Functions inherited from H3D::Node | |
| static Node * | getClonedInstance (Node *original, bool deepCopy, DeepCopyMap &deepCopyMap) |
| A helper function for nodes that implement clone() More... | |
| Protected Attributes inherited from H3D::ComposedShader | |
| GLhandleARB | program_handle |
| The handle to the program object used for the shader in OpenGL. | |
| vector< GLhandleARB > | current_shaders |
| A vector of the handles to all shader objects that are currently linked into the program object. | |
| H3DUniquePtr< SetupDynamicRoutes > | setupDynamicRoutes |
| C++ fields only. Contains instance of SetupDynamicRoutes. | |
| list< H3DSingleTextureNode * > | shader_textures |
| list of textures to be used by the composedshader | |
| H3DUniquePtr< UpdateUniforms > | updateUniforms |
| A field used to update any uniforms from their corresponding fields. | |
| Static Protected Attributes inherited from H3D::ComposedShader | |
| static bool | tessellation_support_checked = false |
| True if a warning has already been output about missing tessellation shader support. | |
| Static Protected Attributes inherited from H3D::X3DProgrammableShaderObject | |
| static bool | use_bindless_textures_set = false |
| True if use_bindless_textures has already be set once. | |
Detailed Description
The EnvironmentMapShader node defines a shader for environment mapping of shiny objects.
The environmentMap field contains a X3DEnvironmentTextureNode containing the environment map to use.
The fresnel field specifies if the fresnel effect should be used in the reflection model and if so how much. The fresnel effect is the effect that surfaces reflect more light if looking at them from an angle than straight down along the normal. If set to 0 nor fresnel effect is used and the surface is fully reflective. If set to 1 only the reflectivity of the fresnel effect is used, which means no reflectivity when looking down perpendicular to the surace. One can think of the term as controlling the minimum reflectivness of the surface. By default it is set to 0 and no fresnel effect is used.
The type field determines how to lookup into the environment map. If set to "VIEW_SPACE" the texture coordinate for the cube map will be the reflected view vector in view space (camera space). This is the same as CAMERASPACEREFLECTIONVECTOR in TextureCoordinateGenerator. It means that the result will be as if the environment cube was attached to the camera and moved around with it when the camera moves. If set to "GLOBAL_SPACE" the texture coodinates are the reflected view vector in global space, with the result of the object reflecting the cube map like a mirror.
Examples:
- Internal routes:
Member Function Documentation
◆ addUniformFields()
|
protectedvirtual |
Adds uniform fields to the shader.
A ComposedShader uses its dynamic fields to define uniform variables. Hence we need to add dynamic fields for each field that we want to be accessable in the shader.
Reimplemented from H3D::H3DGeneratedShaderNode.
References H3D::H3DGeneratedShaderNode::addUniformToFragmentShader(), environmentMap, fresnel, H3D::Field::INPUT_OUTPUT, and H3D::H3DGeneratedShaderNode::uniqueShaderName().
Member Data Documentation
◆ environmentMap
| H3DUniquePtr< SFEnvironmentTextureNode > H3D::EnvironmentMapShader::environmentMap |
Contains the X3DEnvironmentTextureNode to use for environment mapping.
Access type: inputOutput
Default value: NULL
Referenced by addUniformFields(), EnvironmentMapShader(), getFragmentShaderString(), and getVaryingVariables().
◆ fresnel
| H3DUniquePtr< SFFloat > H3D::EnvironmentMapShader::fresnel |
The fresnel field specifies if the fresnel effect should be used in the reflection model and if so how much.
The fresnel effect is the effect that surfaces reflect more light if looking at them from an angle than straight down along the normal. If set to 0 nor fresnel effect is used and the surface is fully reflective. If set to 1 only the reflectivity of the fresnel effect is used, which means no reflectivity when looking down perpendicular to the surace. One can think of the term as controlling the minimum reflectivness of the surface. By default it is set to 0 and no fresnel effect is used.
Access type: inputOutput
Default value: 0
Referenced by addUniformFields(), EnvironmentMapShader(), and getFragmentShaderString().
◆ type
| H3DUniquePtr< SFString > H3D::EnvironmentMapShader::type |
The type field determines how to lookup into the environment map.
If set to "VIEW_SPACE" the texture coordinate for the cube map will be the reflected view vector in view space (camera space). This is the same as CAMERASPACEREFLECTIONVECTOR in TextureCoordinateGenerator. It means that the result will be as if the environment cube was attached to the camera and moved around with it when the camera moves. If set to "GLOBAL_SPACE" the texture coodinates are the reflected view vector in global space, with the result of the object reflecting the cube map like a mirror.
Access type: inputOutput
Valid values: "GLOBAL_SPACE" and "VIEW_SPACE"
Default value: "GLOBAL_SPACE"
Referenced by EnvironmentMapShader(), and getFragmentShaderString().
The documentation for this class was generated from the following files:
